Original User's Instructions

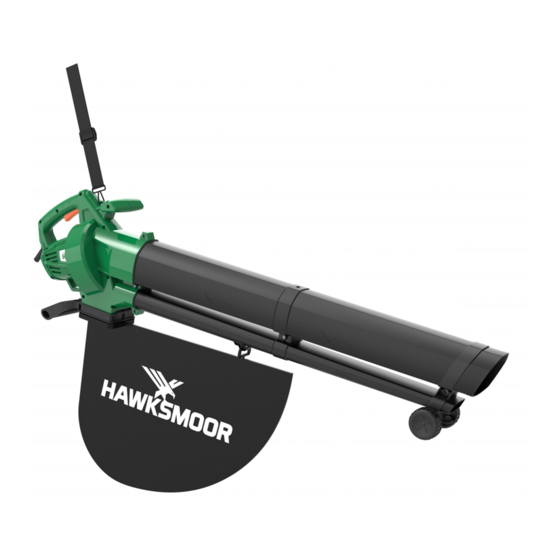

2600W Electric Blower Vacuum
SKU: 18783
WHAT'S IN THE BOX
Lower tube x 1
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE
Upper tube x 1
Bracket
wheel x 1
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: +44 01904 947568
Email support@coreservice.co.uk
Housing x 1
Screw x 4
Collection bag
and bracket x 1
Belt x 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hawksmoor TOOLSTATION 18783
Summary of Contents for Hawksmoor TOOLSTATION 18783
- Page 1 Original User’s Instructions 2600W Electric Blower Vacuum SKU: 18783 WHAT'S IN THE BOX Lower tube x 1 Upper tube x 1 Housing x 1 Collection bag and bracket x 1 Bracket Screw x 4 Belt x 1 wheel x 1 If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568...
-
Page 2: Tools Required
TOOLS REQUIRED SPECIFICATION Technical Data Model No. DT2260F Voltage / Frequency 220V-240V~ , 50Hz Input Power 2600W No Load Speed 9000~15,000/min Air Speed 160-270km/h Max. air volume 13.2m³/min Collection bag Mulching rate 10 : 1 Net Weight 2.65kg Measured Sound Pressure Level 90.2dB(A) K=3dB Measures Sound Power Level 102.4dB(A) K=3dB... - Page 3 WARNING! Depending on the actual use of the product the vibration values can differ from the declared total! Adopt proper measures to protect yourself against vibration exposures! Take the whole work process including times the product is running under no load or switched off into consideration! Proper measures include among others regular maintenance and care of the product and cutting attachments, keeping hands warm, periodical breaks and proper planning of work...
- Page 4 Remove plug from the mains immediately if the cable is damaged or cut. Do not expose the product to rain or wet conditions. Warning: The fan is still rotating when open or close the cover,be careful, specially the inlet cover. Be aware of people around you and do not direct towards them.
-
Page 5: Health And Safety
HEALTH AND SAFETY IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR YOUR REFERENCE WARNING! When using the product the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instructions safe for later use. - Page 6 soles, long, robust trousers,gloves, safety goggles andear protection. Wear these at all times while operating themachine. Never use the device barefooted or wearing open sandals. Wear respiratory protection to protect against dust. • Do not wear clothing or jewellery that could be sucked intothe air intake.
- Page 7 standing on a solid, flat surface. • Do not operate the machine on a paved surface or a gravel surface where the ejected material could cause injury. • Always perform a visual inspection prior to use to make sure that the shredding machine(including its bolts) and other fastening equipment are secured, and that the housing is undamaged and the protective equipment and shields are present.
- Page 8 • Avoid operating the machine in poor weather conditions, especially when there is a lightning hazard. Only work in daylight or where there is good artifcial illumination. • Do not vacuum burning, glowing or smoking materials (e.g. cigarettes, embers etc.), vapours or highly flammable, toxic or explosive substances.
- Page 9 ensure no metallic objects, stones, bottles, canisters or other foreign objects are taken in. • Do not allow processed material to accumulate in the ejection zone since this can prevent proper ejection and cause the material to be brought back into the machine via the in-feed aperture.
- Page 10 Maintenance and storage • Regularly check the functionality and integrity of the device to avoid danger to the operator. • Replace worn or damaged parts in the interests of safety. Only use original replacement parts and accessories. • Do not try to repair the device yourself, unless you have professional training.
- Page 11 Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. a. Always be alert when using this product, so that you can recognise and handle risks early.
-
Page 12: Component List
COMPONENT LIST 1 Belt 2 Upper tube 3 Lower tube 4 Housing 5 Collection box 6 Bracket wheel 7 Switch 8 Variable speed switch 9 Function selector lever Not all the accessories illustrated or described are included in standard delivery. -
Page 13: Assembly And Use
ASSEMBLY AND USE Warning! The Vacuum-Blower must not be used or switched on until it has been fully assembled. Fig.2 Assembly (Fig.3 Fig.4 and Fig.5 ) 1. Pull out the two suction/blower tubes, one Vacuum- blower body, 1set wheel + bracket, four screws that in the manual bag from package, the user need to assemble the tube 2-1 I nsert into tube 2-2 forcibly, fasten the screw (ST4 x 50) until they connect well. - Page 14 Fitting the debris collection bag (Fig.6 and Fig. 7 ) Before fitting the debris collection bag ensure that the Vacuum/Blow selector lever operates smoothly and that it is not obstructed by debris from the previous use. Hold the hook on collection bag to tube (refer to Fig. 6), and then locate the bracket of debris collection bag to insert the curve tube (Refer to Fig.
- Page 15 Alternatively hold nozzle just above the ground and swing the machine from side to side, moving forwards and directing the nozzle at the debris to be cleared. Blow the debris into a convenient heap then use the vacuum function to collect the debris. Mark for suck Vacuum mode Inspect the area to be worked before starting.
-
Page 16: Care And Cleaning
CARE AND CLEANING Warning! Before carrying out any checks or maintenance operations, disconnect the plug from the electric power supply. Check your machine regularly before starting the work. Make sure that all nuts, bolts and screws are tight and that the guards are fitted correctly. All damaged and worn parts should be replaced in order to maintain the Vacuum-Blower in a safe working condition. -
Page 17: Troubleshooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: PROBLEM POSSIBLE CAUSES REMIDIES Blade stuck There may be small twigs stuck Caused by irregular operation, in, or there may be large wet please read the manual carefully leaves and other leaves that are and standardize the operation... - Page 18 DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 18783/DT2260F Product Description: Hawksmoor 2600W Electric Blower Vacuum 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration...
-
Page 19: Environmental Information
ENVIRONMENTAL INFORMATION When your product comes to the end of its life or you choose to update or upgrade it by replacing it, please do not dispose of it with your normal household waste. Please recycle where facilities exist. When you need to dispose of this product, check with your retailer or local authority for suitable options. -
Page 20: Customer Support
GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
