TopGun Mobility EZI-WALK User Manual

Electric rollator
Hide thumbs

Advertisement

Quick Links

Download this manual

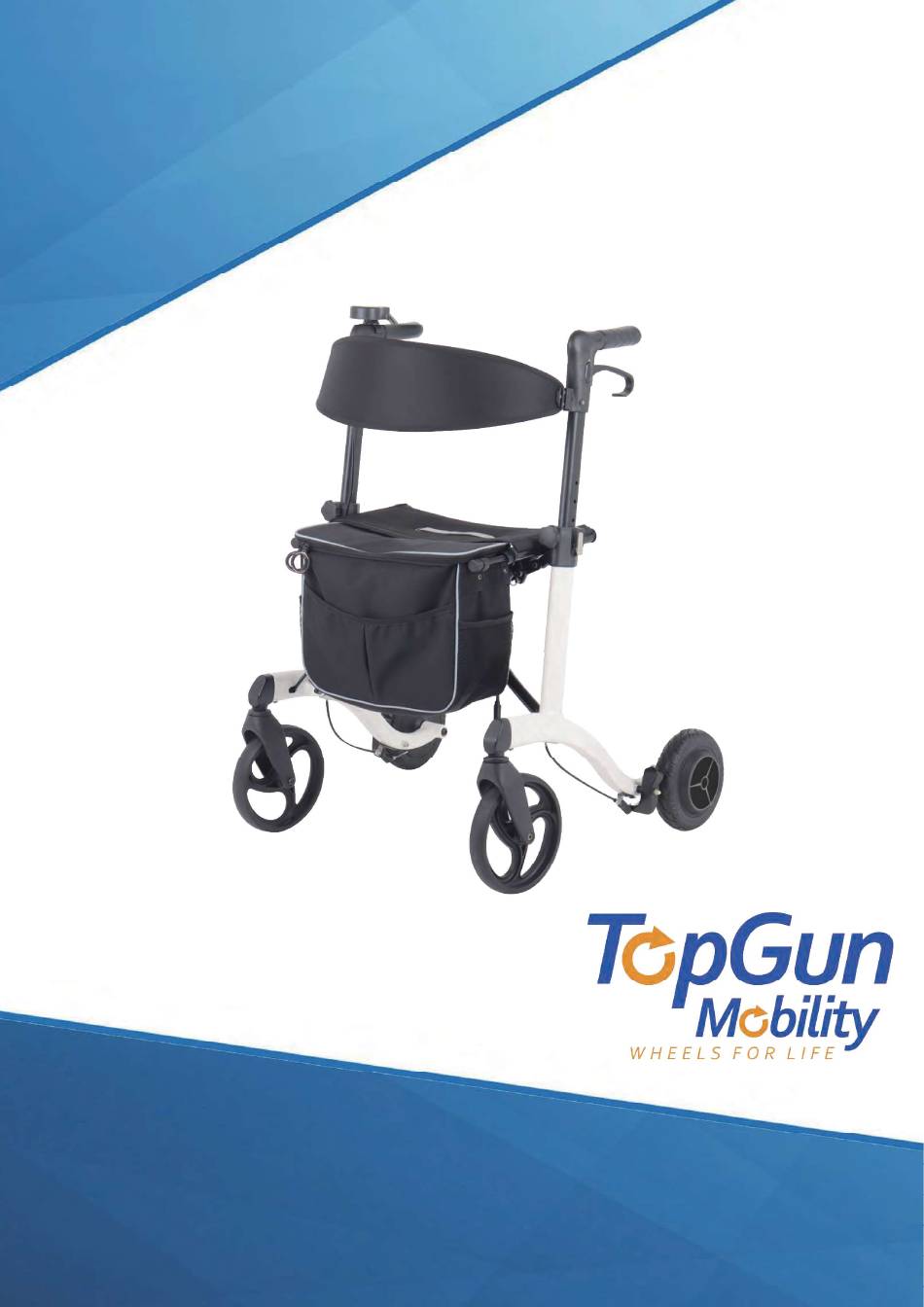

EZI-WALK
Electric Rollator
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZI-WALK and is the answer not in the manual?

Questions and answers

Related Manuals for TopGun Mobility EZI-WALK

Summary of Contents for TopGun Mobility EZI-WALK

  • Page 1 EZI-WALK Electric Rollator USER MANUAL...
  • Page 2 This intelligent Ezi-Walk Electric rollator is a portable electric rollator and shopping cart for those with decreased mobility due to age or medical/health conditions. The system is classified according to the user's action ability, providing intelligent anti-fall detection and maximum speed limit function.

  • Page 3: Safety Summary

    SAFETY SUMMARY To ensure the safe operation of the rollator, these instructions must be followed: GENERAL WARNING DO NOT assemble or use this rollator without first reading and understanding this instruction sheet. If you are unable to understand the Warnings, Cautions or Instructions, contact a healthcare professional, authorised dealer or technical personnel before attempting to assemble this rollator –...

  • Page 4: Installation Warnings

    FOLDING AND ASSEMBLY WARNING After unfolding or assembling the rollator, ensure that the buckle under the seat support is securely locked in. Ensure that the height adjustment button is not pressed in. All screws must be tightened to ensure that there is no movement. DO NOT hang anything on either the left or right side of the frame, since it may cause the rollator to tip, resulting in injury or damage.
  • Page 5 INSTALLING/ADJUSTING HEIGHT ADJUSTMENT TUBE/BRAKE CABLES/REAR WHEEL TUBES NOTE: Refer to the INSTALLATION WARNINGS in the SAFETY SUMMARY of this instruction. NOTE: Adjust the rollator height so that when the user’s arm is down to their side, the hand grip is at wrist height.
  • Page 6 LOCKING HAND BRAKES 1. Push DOWN on the bottom portion of the brake handle as shown in FIGURE 3 until there is a ” click “ sound. 2. Refer to UNLOCKING HAND BRAKES in this procedure of the instruction sheet. UNLOCKING HAND BRAKES 1.
  • Page 7 Gear Level Display Power Level Display Charge Port Power Assistance / Resistance Mode...
  • Page 8 When this symbol keeps flashing, it enters the error code interface. The corresponding number shown in the screen represents the corresponding fault content. The specific state is as follows: Error Code Cause of Failure Solution E-002 Left motor fault Check whether the left motor outlet is damaged, if damaged, replace the motor.
  • Page 9 E-017 Right motor mos fault Please contact the maintenance staff to replace the control box. E-018 Left and right motor mos fault Please contact the maintenance staff to replace the control box. E-020 Battery power supply detection Check if the battery is damaged. error If no, contact the maintenance staff to replace the control box.
  • Page 10 Power Assistance Mode: short press to switch gears, C1-C3 gears, auto-assist strength and speed gradually increase (C1<C2<C3), maximum speed 4.8KM/H. Auto Assist: Hold the handgrip and push the rollator. At this time, auto-assist will be generated automatically. When pushing forward, it will help forward, and when pushing backward, it will help backward.

  • Page 11: Care And Maintenance

    INITIAL ROLLATOR ATTITUDE CALIBRATION METHOD If there is an error code E-024 after switched on, do the following: Place the rollator horizontally, the handset display must be fixed in the installation position and cannot be moved. Keep pressing for around 10 seconds while the power is off, until F4 is shown on the display with a voice prompt.
