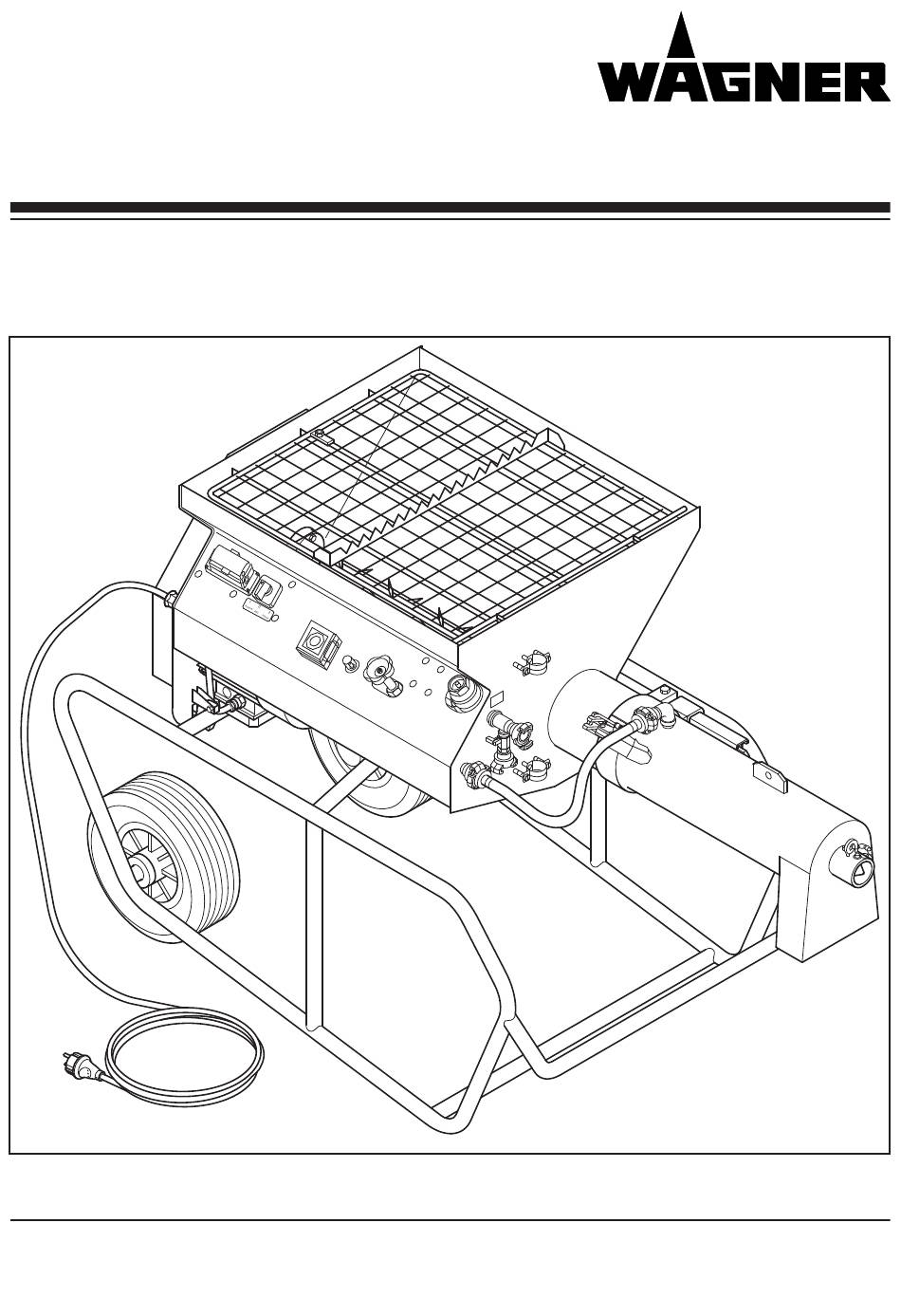

- Page 1 Operating manual Translation of the original operating instructions Continuous mixer T 25 K Edition 05/2010 0343 856...
-
Page 2: Table Of Contents
The technical construction will be brie y explained here in or- Achtung The continuous mixer T 25 K should only be used with the der to enable a better understanding of the operation of the coating materials listed on page 3. It is not permitted to use device. -
Page 3: What Materials Can Be Used
Technical data Continuous mixer T 25 K Motor output P1: 2.2 kW The continuous mixer T 25 K has been designed for use with Voltage: 230 V ~, 50 Hz materials in sacks. It is suitable for universal mixing of the fol-... -
Page 4: Putting Device In Operating Position
Take mixing pipe (2) and swivel forwards. Pull mixing pipe forwards. Swivel mixing shaft (3, g. 3) into the transport shaft. Push mixing pipe onto connection (4, g. 4) on the device and se- cure with the two toggle-type fasteners (5). T 25 K... -
Page 5: Placing Into Operation
– more water. • Turn to the right (clockwise) – less water. Overload of the continuous mixer T 25 K. The electric motor switches o automatically and remains switched o . Operate the overcurrent protection switch (6), after about 2-3 minutes - the device will start up again. - Page 6 If coating material still remains in the container: Unscrew hexagon nut (5, g. 10) and remove protective Caution: Remember the weight of the device. grid. Dry container and dosing section and clean with a brush. Achtung Re- t the protective grid. T 25 K...
-
Page 7: Placing The Device In Its Transport Position
Hold device with handle (3) and turn in the direction of the arrow until safety hook (4) stops. Release safety hook (4). Slowly turn device in the direction of the arrow (180°). Caution: Remember the weight of the device. Achtung T 25 K... -
Page 8: Malfunction Checklist
Remove mains plug from the socket. Uncouple the external water hose. Open ball valves (2) for emptying water. Remove sealing cap (3) with open-end wrench 30. Remove sieve (4) Rinse sieve with water. Blow through with compressed air, if available. T 25 K... -
Page 9: Tightening The Special V-Belt
Fit the cover. Attention For replacement of the V-belt, use only the spe- cial Wagner V-belt. Achtung Cover Serves as protection against humidity, dirt and as protection against the wind. Part No. 0343 701 1-2 mm T 25 K... -
Page 10: Accessories
Part No. 0343 709 Universally applicable material machine communication. System attachable container For use with materials in sacks. • Attachable container for continuous mixer T 25 K • Sensor control system S 230 • Wet and dry sensor • Mounting for wet sensor •... - Page 11 System - big bag / silo For use with coating materials from a big bag / silo. • Silo delivery hood • Sensor control system S 230 • Wet and dry sensor • Water pressure controller Part No. 0343 909 T 25 K...
-
Page 12: Spare Parts List - Continuous Mixer T 25 K
T 25 K... -
Page 13: Spare Parts Illustration - Continuous Mixer T 25 K
Spare parts illustration - continuous mixer T 25 K T 25 K... -
Page 14: Spare Parts List And Illustration Electric Components
Mains cable 3 x 1.5 mm², 3 m Spare parts list - water ttings Item Part No. Description Item Part No. Description 0343 211 Water hose, 380 mm long 0268 579 Sealing cap 0343 319 Solenoid valve 0268 578 Sieve T 25 K... -
Page 15: Important Notes On Product Liability
Only the usage of original WAGNER accessories and spare parts guarantees that all safety regulations are observed. Wagner or one of our dealers will take back your used Wagner waste electrical or electronic equipment and will dispose of it for you in an environmentally friendly way. Please ask your local Wagner service centre or dealer for details or contact us direct. -
Page 16: Guarantee Declaration
Wagner quality as- claims must be made immediately, or at the latest within a pe- surance. - Page 17 German text has priority. J. Wagner GmbH Division Professional Finishing Otto Lilienthal Strasse 18 88677 Markdorf Federal Republic of Germany Subject to modi cations Printed in Germany T 25 K...
-
Page 18: Declaration Of Conformity
T 25 K... - Page 19 T 25 K...
-
Page 20: Wagner Manufacturing And Sales Companies
J. Wagner Ges.m.b.H. Wagner Spraytech Wagner Spraytech (UK) Limited Ottogasse 2/20 Scandinavia A/S The Coach House 2333 Leopoldsdorf Helgeshøj Allé 28 2 Main Road Österreich Middleton Cheney OX17 2ND 2630 Taastrup Tel. +43/ 2235 / 44 158 Great Britain Denmark...
