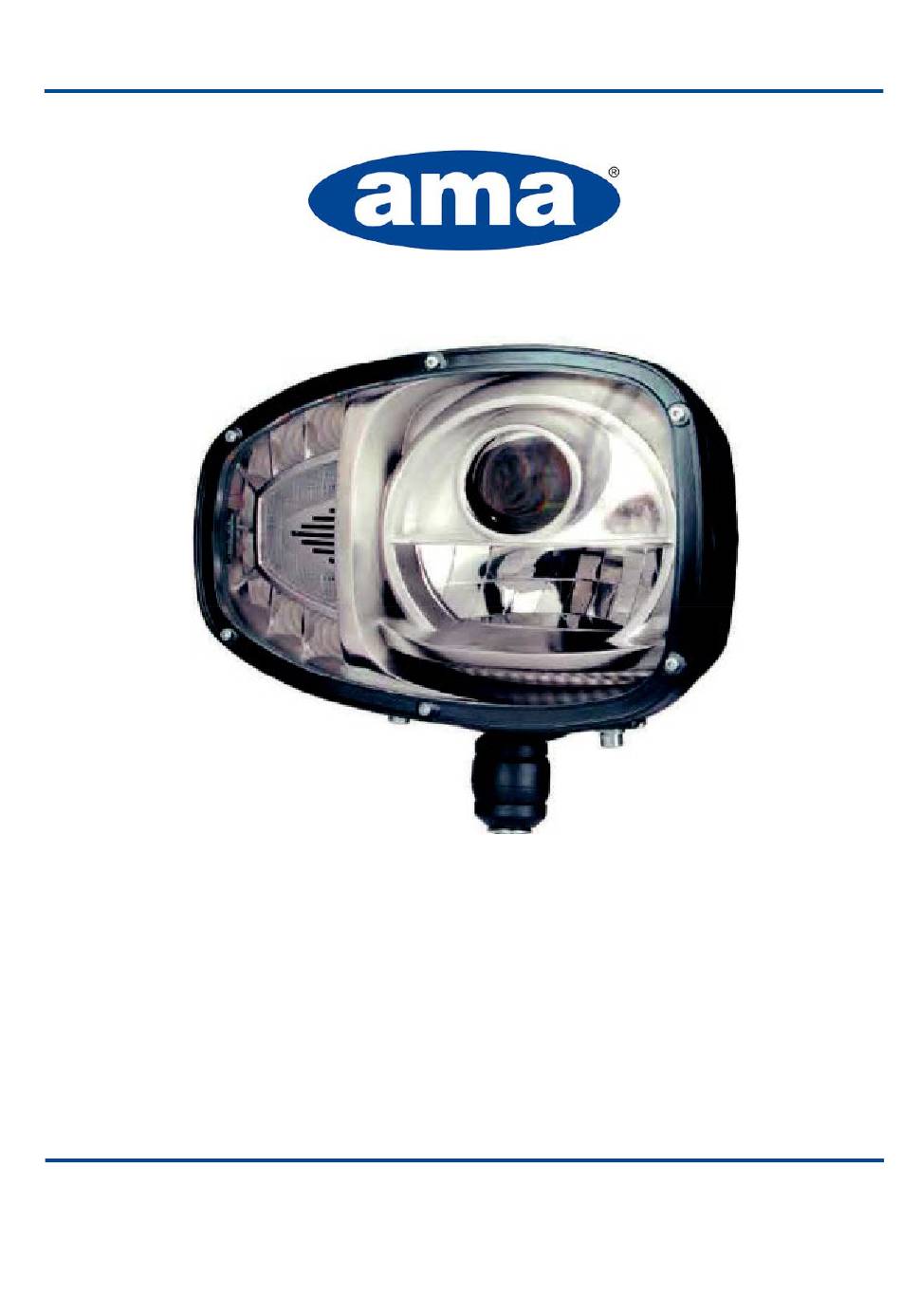

- Page 1 LED HEAD LAMP LED HEAD LAMP F04212 - F04213 F04212 - F04213 F04214 - F04215 F04214 - F04215 Rev. 0 - 24.02.2020 Ama S.p.A. Ama S.p.A. Via Puccini, 28 - 42018 San Martino in Rio (RE) Tel. 0522 636911 - Fax 0522 695753...
- Page 2 Although the content is kept as accurate and complete as possible at the time of printing, AMA accepts no responsibility for any errors or omissions contained in this manual. This instruction manual must be read before taking any operational action.
- Page 3 The following items can be purchased individually: F04214 GRUP.ANT LED DX WITH LOWER BRACKET • F04215 GRUP.ANT LED SX WITH LOWER BRACKET • F04212 GRUP.ANT LED DX REAR FIXING • F04213 GRUP.ANT LED SX REAR FIXING • Led Head Lamp...
- Page 4 Installation Manual Technical data FEATURE FEATURE VALUE VALUE Operating Voltage 10-30 V DC Recommended tilt angle 0° - 10° Low beam High beam Energy consumption Direction indicator Position light 0.4W ECE Regulation No 6 ECE Regulation No 7 Homologations ECE Regulation No 10 ECE Regulation No 112 CISPR 25 Class 3 Protection class...
- Page 5 Installation Manual Usage Mounting and Connection WARNINGS WARNINGS ONLY QUALIFIED PERSONNEL CAN WORK ON THE ELECTRICAL SYSTEMS OF VEHICLES. FOR THE INSTALLATION OF THE LED WORKLIGHT OBSERVE THE SAFETY RULES AND INSTRUCTIONS For mounting the lamp on the vehicle use the bolts, screws, nuts and the bracket or plates included. For wiring use connectors and contacts included in the package.
- Page 6 Installation Manual Maintenance Cleaning Clean the LED work light frequently to maintain full brightness. Do not clean the housing of the work light with high pressure cleaners. Do not clean the unit with aggressive detergents but rather use a dry or lightly moistened cloth to clean the unit. Do not pull tha cable durimg cleaning.
- Page 7 The technical documentation as required by the Conformity Assessment procedure is kept at the following address: AMA SPA, Via Puccini 28, 42018 San Martino in Rio (RE). Last two digits of the year in which the CE marking was affixed: 20...
