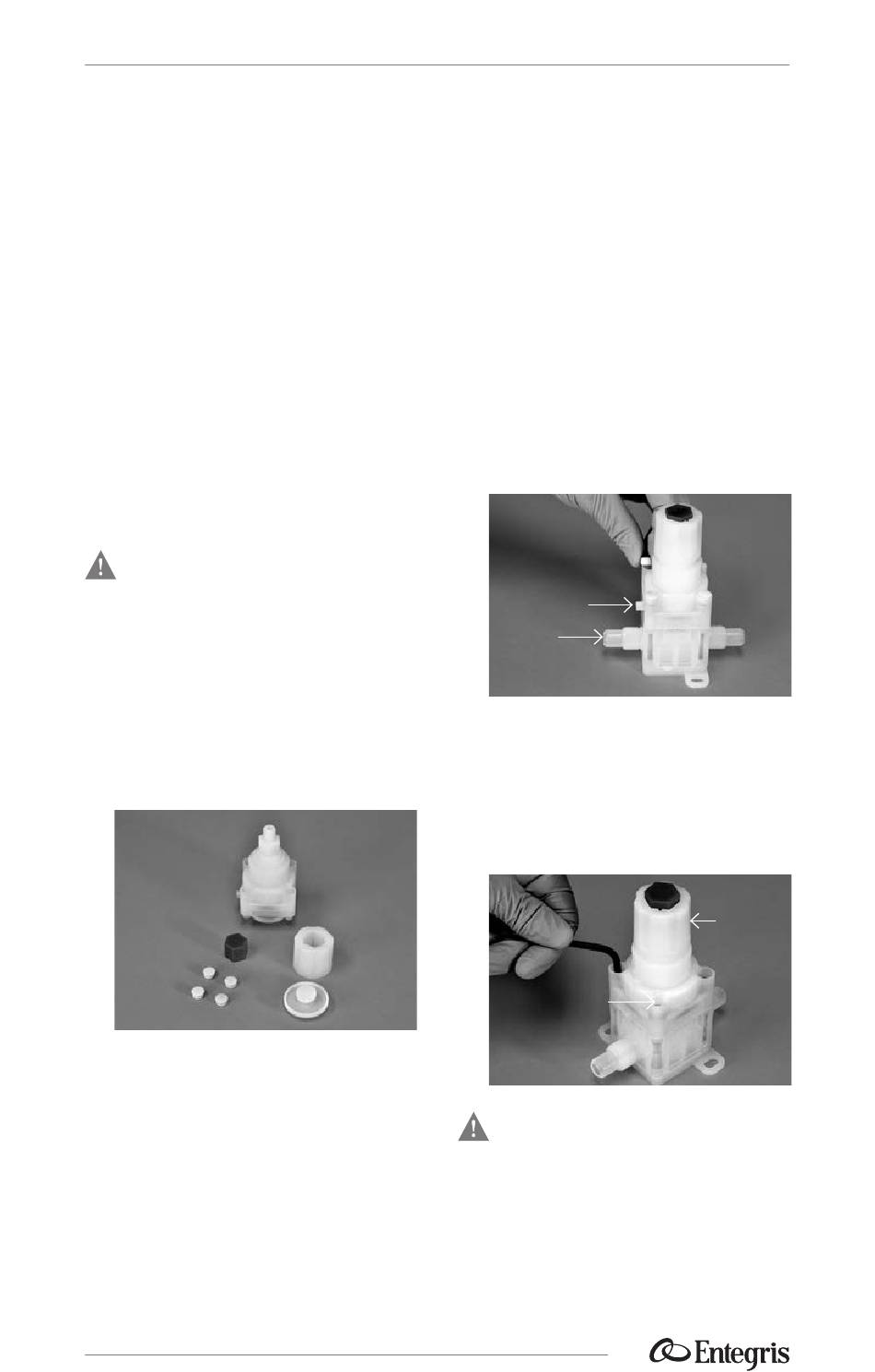

P/N 01-1011423 | REV. C 09/18 | INSTRUCTION SHEET
CR8 Manual
Multi-turn Valve
Repair instructions
INSTRUCTIONS
—
CR8 manual multi-turn valves including
all media end connections.
CAUTION! Remove any pressurized
sources from the valve before
attempting repair.
1. Repair kit contents: multi-turn actuator
assembly, diaphragm, bolt plugs, stop
nut and handle. Consult factory if
replacement bolts and lock washers
are needed.
Handle diaphragm so that seal surfaces
are not damaged.
Red stop nut
Bolt plugs
2. Remove four bolt plugs and discard.
NOTE that the media leak port is
parallel to port 1 and points in the
same direction.
3. Remove four bolts and washers 1⁄2 turn
Actuator
assembly
Handle
Diaphragm
Turn handle counterclockwise so valve
is in the open position.
Media
leak port
Port 1
at a time in a cross pattern (1, 2, 3, 4)
with a 5⁄32" hex key. Save bolts and lock
washers unless new ones have been
purchased separately from the repair
kit.
1
3
CAUTION! Point actuator away from
personnel for step 4.
4
2
