Hans Grohe E/S 13414 Series Assembly Instructions Manual
Hans Grohe E/S 13414 Series Assembly Instructions Manual

Hans Grohe E/S 13414 Series Assembly Instructions Manual

Hide thumbs Also See for E/S 13414 Series:

Advertisement

Quick Links

DE Montageanleitung
FR Instructions de montage
EN Assembly instructions
IT Istruzioni per Installazione
ES Instrucciones de montaje
NL Handleiding
DK Monteringsvejledning
PT Manual de Instalación
PL Instrukcja montażu
CS Montážní návod
SK Montážny návod
ZH 组装说明
RU Инструкция по монтажу
HU Szerelési útmutató
FI Asennusohje
SV Monteringsanvisning
LT Montavimo instrukcijos
HR Uputstva za instalaciju
TR Montaj kılavuzu
RO Instrucţiuni de montare
EL Οδηγία συναρμολόγησης
SL Navodila za montažo
ET Paigaldusjuhend
LV Montāžas instrukcija
SR Uputstvo za montažu
NO Montasjeveiledning
BG Инструкция за употреба
UA Інструкція по збірці
‫تعليمات التجميع‬
AR
JP 施工説明書
‫הוראות הרכבה‬
HE
E / S
13414XXX
Metris
31494XXX
Metris Classic
13413XXX
Finoris
76410XXX
Rebris E
72431XXX
Metropol
32542XXX
Talis S
72410XXX
Metropol Classic
13425XXX
Vivenis
75410XXX
Tecturis S
73411XXX
Metris S
14420XXX
PuraVida
15412XXX
Novus
71320XXX
Rebris S
72430XXX
Tecturis E
73410XXX

Advertisement

loading
Need help?

Need help?

Do you have a question about the E/S 13414 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hans Grohe E/S 13414 Series

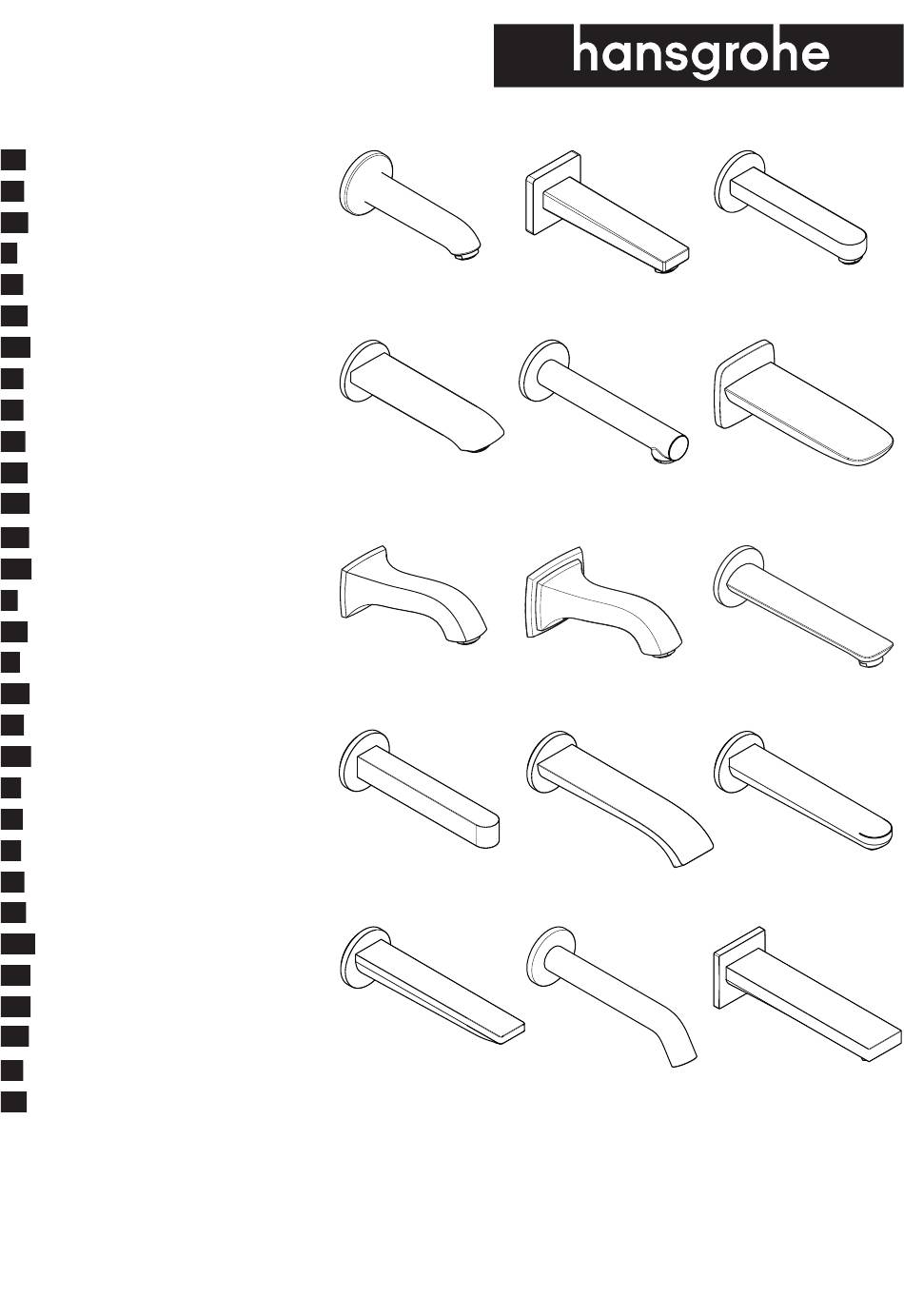

  • Page 1 DE Montageanleitung FR Instructions de montage EN Assembly instructions IT Istruzioni per Installazione ES Instrucciones de montaje E / S Metropol Metris S NL Handleiding 13414XXX 32542XXX 14420XXX DK Monteringsvejledning PT Manual de Instalación PL Instrukcja montażu CS Montážní návod SK Montážny návod Metris Talis S PuraVida ZH 组装说明 31494XXX 72410XXX 15412XXX RU Инструкция по монтажу...
  • Page 2 Novus 71320XXX 30-35 E / S 13414XXX Metris 31494XXX Metropol 32542XXX Finoris 76410XXX Vivenis 75410XXX Tecturis S 73411XXX Tecturis E 73410XXX Metris Classic 13413XXX 33-37 Talis S 72410XXX 33-35 Rebris S 72430XXX Rebris E 72431XXX...
  • Page 3 Metris S 14420XXX 28-31 PuraVida 15412XXX Metropol Classic 37-41 13425XXX...
  • Page 4 Silikon (essigsäurefrei!) Silikon (ne sadrži kiseline) Silicone (sans acide acétique!) Silicon (fără acid acetic!) Silicone (free from acetic acid!) Σιλικόνη (δίχΩς οξικό οξύ!) Silicone (esente da acido acetico!) Silikon (brez ocetne kisline) Silicona (¡libre de ácido acético!) Silikoon (äädikhappeta!) Silicone (azijnzuurvrij!) Silikons (etiķskābi nesaturošs!) Silikone (eddikesyre-fri) Silikon (ne sadrži sirćetnu kiselinu!) Silicone (sem ácido acético) Silikon (uten eddiksyre) Silikon (neutralny) Силикон (без оцетна киселина!) Silikon (bez kyseliny octové!) シリコン (非酢酸系!) Silikon (bez kyseliny octovej!) Силікон (без оцтової кислоти!) 硅胶 (不含醋酸) ‫خالي من حمض الخليك‬ ‫سيليكون‬ Силикон (не содержит уксусной кислоты!) Silikon (asetik asit içermeyen) Silikoni (etikkahappovapaa!) Szilikon (ecetsavmentes!) Silikon (fri från ättiksyra!) (‫סיליקון )שאינו מכיל חומצה אצטית‬ Silikonas (be acto rūgšties!) Metris Classic 13413XXX...
