User Guide

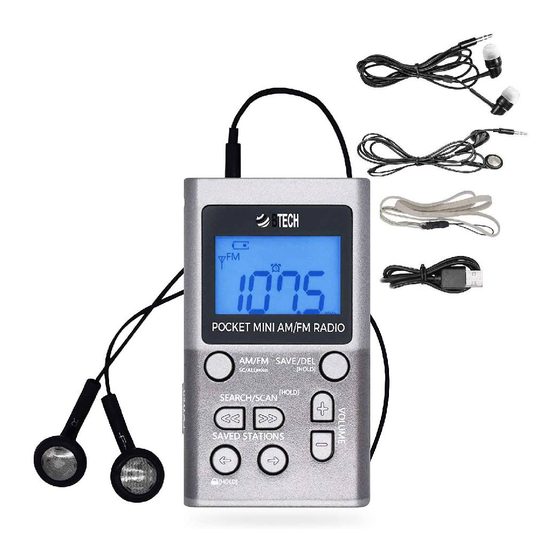

BTECH MPR-AF1 Pocket Mini AM/FM Radio
The BTECH MPR-AF1 Pocket Mini AM/FM Radio receives both AM and FM broadcast bands, and is powered by a
built-in lithium battery with excellent battery life. The radio can store up to 58 frequencies (29 per band).
Accessories
•
Stereo earphones
•
USB charging cable
•
Lanyard

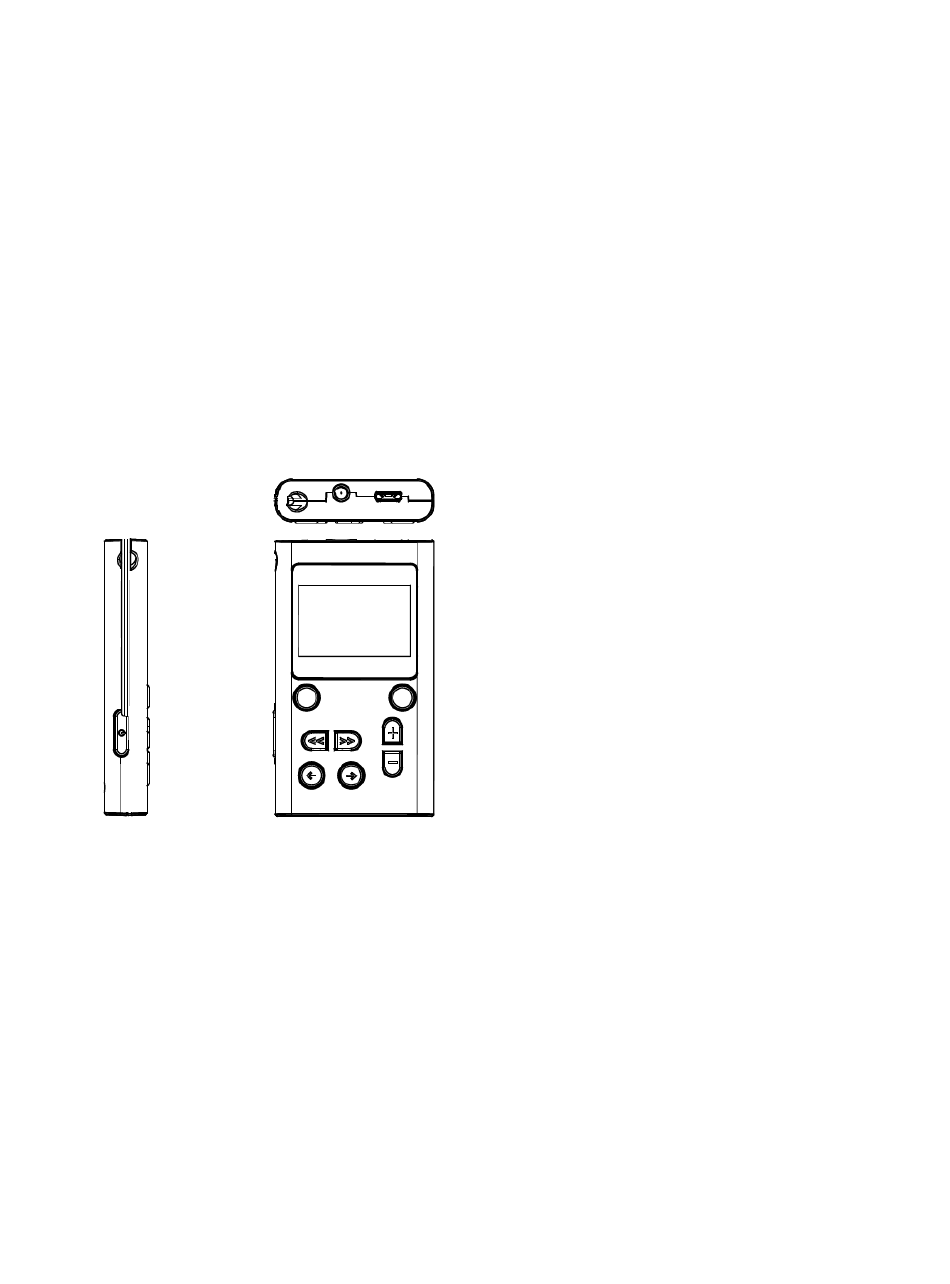

Controls
•
Earphone jack. Connects the earphones to the radio.
•
Charging jack. Connects the USB charging cable to charge the battery.
•
Volume control. Sets the receive volume.
•
AM/FM key. Selects the band, AM or FM.
•
SAVE/DEL key. Programs or deletes station memories.
•
Search/Scan control. Sets the frequency being received.
•
Saved Stations. Selects stations from the station memory.
Advertisement
Related Manuals for BTECH MPR-AF1
Summary of Contents for BTECH MPR-AF1
- Page 1 BTECH MPR-AF1 Pocket Mini AM/FM Radio The BTECH MPR-AF1 Pocket Mini AM/FM Radio receives both AM and FM broadcast bands, and is powered by a built-in lithium battery with excellent battery life. The radio can store up to 58 frequencies (29 per band).
- Page 2 Liquid crystal display (LCD) Operation To turn the radio on, press and hold the POWER switch on the left-hand side of the unit until the radio comes on. The LCD will display the frequency of the station being received. To turn the radio off, press and hold the POWER switch on the left-hand side of the unit until the radio turns off. The LCD will display the time set by the user.
- Page 3 To delete a station from station memory, tune to the frequency of that station. Press and hold the SAVE/DEL key until the LCD displays the frequency and memory number of the station just below the deleted memory. Note that when you delete a station from station memory, stations in memory locations above the deleted memory will all be shifted down one memory location.
- Page 4 • AM frequency range: 520 – 1710 kHz • FM frequency range: 87.5 – 108.0 MHz • FM antenna: Earphone wire antenna • AM antenna: Internal ferrite bar antenna • Sensitivity: AM - <20 mV//m, FM - < 8 V •...
