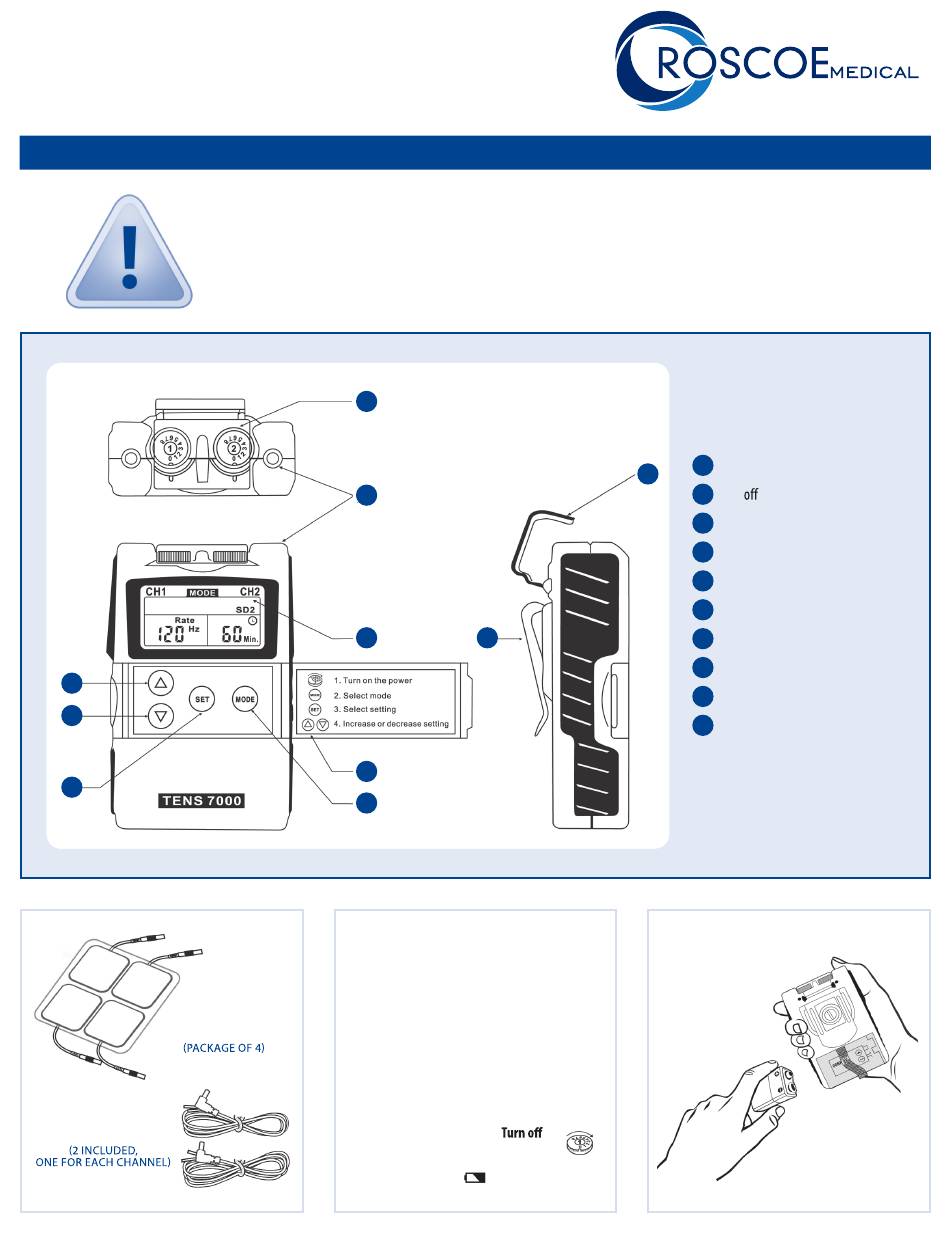

TENS 7000
QUICK REFERENCE GUIDE
Top
Front
7
8
6

ELECTRODES

LEAD WIRES

For more information about your TENS 7000™ unit, please visit us online at www.roscoemedical.com or call 1-800-376-7263.
The purpose of this guide is to assist you in correctly operating your TENS 7000™ unit. Do not use
this device for undiagnosed pain symptoms until consulting a physician. This guide is not intended
to replace or substitute the TENS 7000™ Instruction Manual. PLEASE READ THE INSTRUCTION
MANUAL COMPLETELY BEFORE USING THIS DEVICE.
contraindications, warnings, cautions and operating instructions found on pages 4 – 5 of your instruction
manual.
Always follow the operating instructions as listed in the manual.
2
1
4
3
5

SPECIAL FEATURES

The placement of electrodes can be one of the most
important parameters in achieving success with TENS
therapy. If the initial results are not positive, speak to
your physician about alternative stimulation settings
and/or electrode placement. Once desired results are
achieved, mark down the electrode sites and settings
for future reference. The TENS 7000™ features two
protective covers that prevent unintentional changes
to settings.
Turn on device by rotating the dial clockwise and
select the desired intensity level.
device by turning dial counterclockwise to O.
Low battery indicator
low. Replace battery when stimulation feels weaker.
Read, understand and practice the
Side
9
10
signals when battery is
TENS 7000
UNIT
1
Lead connector sockets - 2 channels
2
On /
/ intensity dial - 2 channels
3
Panel cover with reference guide
4
Liquid crystal display (LCD)
5
Mode selection button
6
Set selection button
7
Increment control / increase button
8
Increment control / decrease button
9
Protective cover
10
Belt clip

INSERT BATTERY

Press arrow and slide
battery compartment
cover open. Insert
9V battery, matching
the + and – ends to
those in unit.
The battery should be
placed on top of the
compartment ribbon
to allow easy battery
removal.
