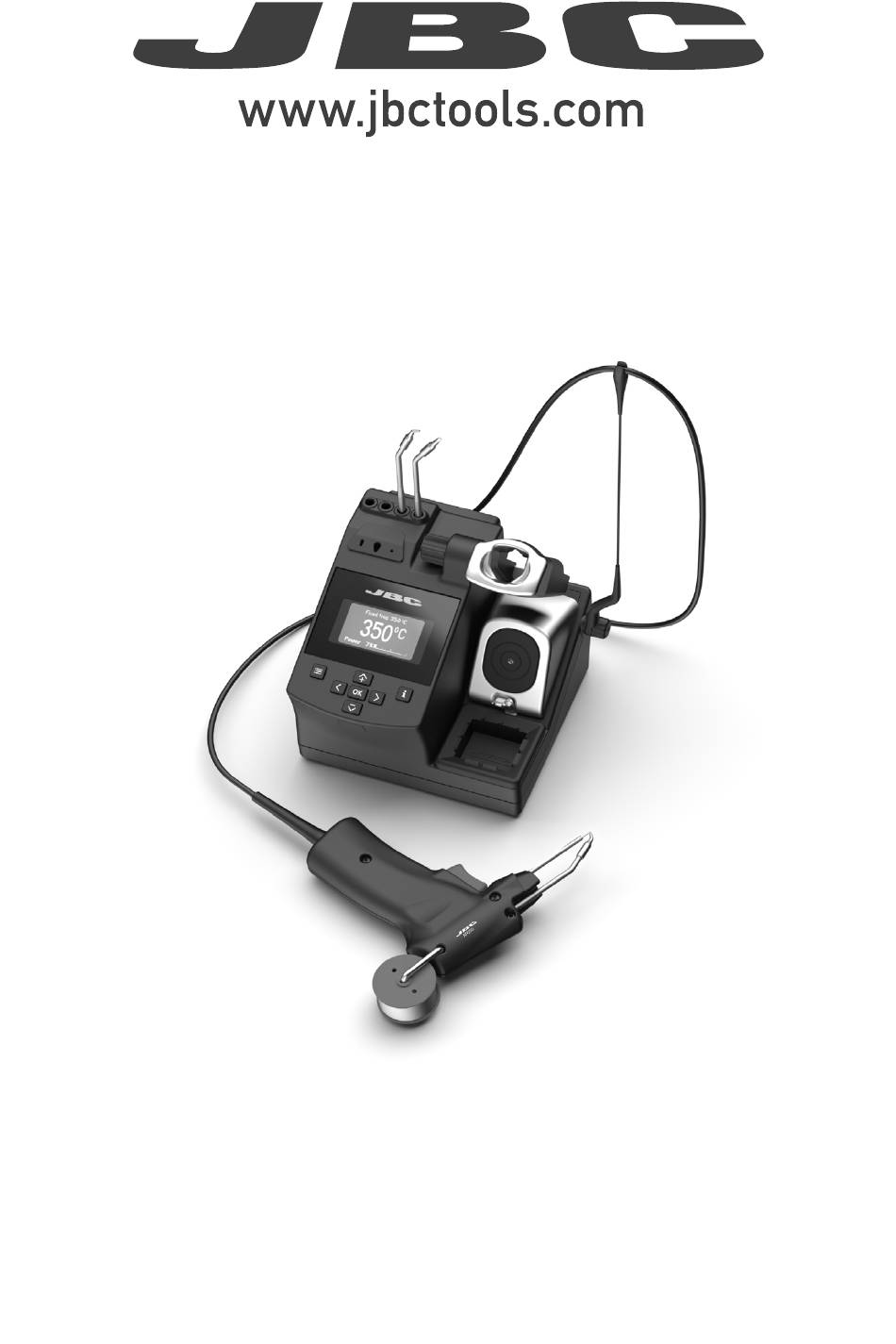

- Page 1 INSTRUCTION MANUAL Manual-Feed Soldering Station...
-
Page 2: Table Of Contents
This manual corresponds to the following references: CA-9QF (100V) CA-1QF (120V) CA-2QF (230V) Packing List The following items are included: Manual-Feed Manual-Feed Feeder Nozzle Soldering Station ..1 unit Soldering Iron ....1 unit Ø 1.5mm ......1 unit Ref. AP250-A Ref. -
Page 3: Manual-Feed Soldering Iron
para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Adjustable Adjustable Tool Holder Cable Collector 100 mm Cartridge Holder Tip Aligner 80 mm Display Tip Cleaner with Antisplash Membrane (Brass Wool 60 mm inside) Wiper 50 mm 40 mm AP250... -
Page 4: Brass Wool
CDE-B CDE-B Adjust. Tool Holder Adjustable Cable Collector The position of the tool holder The position of the tool holder The cable collector (ref. CC1001) keeps the cable away from the (ref. 0014706) can be easily (ref. XXXXXXX) can be easily work area and prevents the weight of the cable from disturbing the adjusted loosening... -
Page 5: Sponge
para manuales - color gris 200 mm 130 mm 130 mm Wool/Brush Replacement 1. Unlock the splashguard. 2. Lift off the splashguard and change the worn brasswool/brush for a new one. 100 mm Wool Lock 80 mm 60 mm More cleaning options: 50 mm Inox Wool* 40 mm... - Page 6 R560 Changing Cartridges To change a catridge safely, unplug the tool or turn off the station before following these guide- lines. 1. Removing 2. Inserting Mark P250 Loosen the screw and remove the cartridge. Important: Insert the new cartridge as far as Use PLR195 pliers if still hot.
- Page 7 para manuales - color gris 200 mm Compatible Cartridges 130 mm 130 mm The CA stations work with C250 cartridges and AP250 Solder Feed Irons. Find the model that best suits your soldering needs in www.jbctools.com 100 mm ø 3,5 1,8x0,8 ø...
- Page 8 Changing Feeder Nozzle Unplug the tool or turn off the station before following these guidelines: 1. Unscrew the rear screw, than remove the reel and the solder wire from the nozzle. AP250 2. Unscrew the two screws on the other side of the solder feeder.
- Page 9 para manuales - color gris 200 mm 130 mm 130 mm 100 mm 4. Take out the feeder nozzle and replace it with the new one while holding the three components (trigger, slider and lever), AP250 identified in the picture, in place. 80 mm Reassemble the cover and tighten the three screws.
- Page 10 Operation JBC’s Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life is five times longer than with other brands. 1.
- Page 11 para manuales - color gris 200 mm Control Process 130 mm 130 mm Work Display Displays a specific fixed temp. Fixed temp. 3 5 0 3 5 0 Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0 temp.
- Page 12 Parameters Be careful when using these parameters as they may reduce the tip life if not used properly. Please follow the recommended guidelines: Station Settings Parameter Description Recommendations Warnings Temperature Unit Celsius (ºC) or Fahrenheit (ºF) Maximum Temperature In most cases, Set the maximum working with temperatures temperature to work with.
- Page 13 para manuales - color gris 200 mm 130 mm 130 mm Tool Settings 100 mm Parameter Description Recommendations Warnings Ideal for soldering more than Fix One Temperature 80 mm Fix a value within the one component at a specific temperature range of the temperature.
- Page 14 Tool Settings Parameter Description Recommendations Warnings This function completely Hibernation Delay Set the time the tool will protects the tip from oxidation Increasing the default remain at Sleep Temperature during long periods of value will accelerate before entering in Hibernation inactivity while the tool is in the oxidation and shorten the Mode.
- Page 15 para manuales - color gris 200 mm USB Connector 130 mm 130 mm Download the latest software from our website to improve your soldering station. JBC Updater 100 mm www.jbctools.com/software.html Update the station software via USB connection: 80 mm USB A-B cable Updater 60 mm 50 mm...
- Page 16 Maintenance Before carrying out maintenance, always switch the device off and disconnect it from the mains. Allow the equipment to cool down. - Clean the station display with a glass cleaner or a damp cloth. Clean Clean periodically periodically - Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.
- Page 17 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
- Page 18 Notes...
-
Page 19: Manual
para manuales - color gris 200 mm Specifications 130 mm 130 mm Manual-Feed Soldering Station 100 mm Ref.: CA-9QF 100V 50/60Hz. Input fuse: T2A. Output: 23.5V. Ref.: CA-1QF 120V 50/60Hz. Input fuse: T2A. Output: 23.5V. Ref.: CA-2QF 230V 50/60Hz. Input fuse: T1A. Output: 23.5V. - Peak Power (Tool): 130 W 80 mm... - Page 20 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
