BIS L-400-..., BIS Z-EL-...
Technical Description, User's Guide
English

Advertisement

Table of Contents
loading

Related Manuals for Balluff BIS L-400 Series

Summary of Contents for Balluff BIS L-400 Series

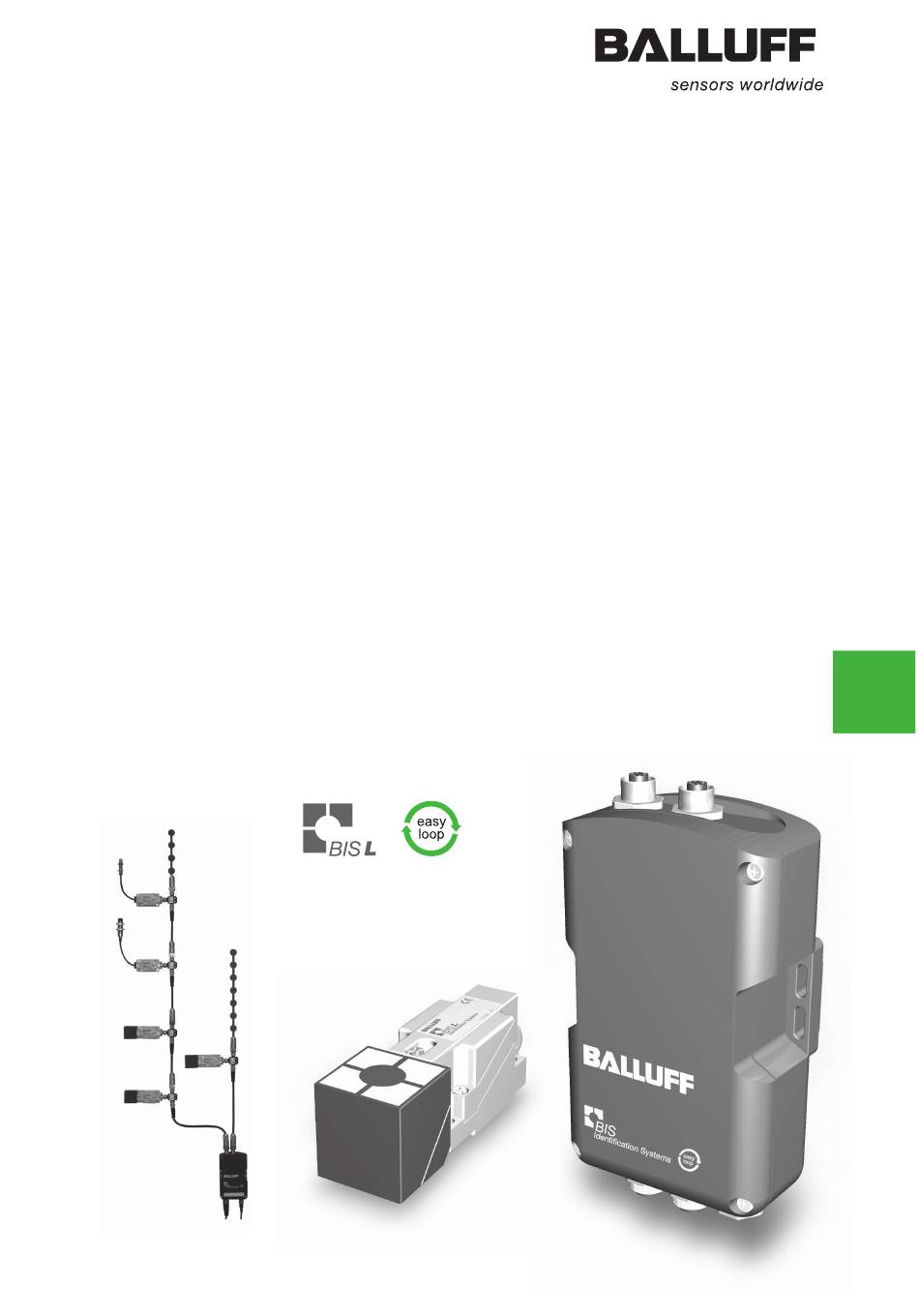

  • Page 1 BIS L-400-..., BIS Z-EL-... Technical Description, User's Guide English...
  • Page 2 www.balluff.com...

  • Page 3: Table Of Contents

    2.2 General safety notes 2.3 Meaning of the warning notes Getting Started Basic knowledge 4.1 Function principle of the Easy Loop connection system 4.2 Product description 4.3 Data security 4.4 Bus connection Technical Data 5.1 Communications module 5.2 Processor Appendix www.balluff.com...

  • Page 4: User Instructions

    Easy Loop Connection System BIS L-400-... and BIS Z-EL-... User Instructions 1.1 About this This manual describes the Easy Loop connection system with the components manual BIS Z-EL-001-ETHERNET, BIS Z-EL-002-RS22, BIS L-00-0-0xx-02-S115 as well as startup instructions for immediate use. 1.2 Manual organization The manual is organized so that the sections build on each other.

  • Page 5: Abbreviations

    Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Notes to the user 1.5 Abbreviations Block Check Character Balluff Identification System Cyclic Redundancy Code EEPROM Electrically Erasable and Programmable Read Only Memory Easy Loop Electromagnetic Compatibility Internet Protocol MAC-ID Media Access Control Identifier...

  • Page 6: Safety

    Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Safety 2.1 Intended use The Easy Loop connection system enables multiple BIS processors to be connected to a host controller (PLC, PC) through just a single port on the communication module. The system is intended only for this use in industrial areas as per Class A of the EMC Law.

  • Page 7: Getting Started

    6 Tee BKS-S115-TW2-0 Line 1 (Easy Loop) 7 Connection cable: BIS Z-5xx-… Processors on Line 1 8 Line 2 (Easy Loop) Terminating plug BKS-S117-R01 9 Communications module Processors on Line 2 10 Ground 11 X2 (TCP/IP or RS22) BIS Z-EL-… www.balluff.com...
  • Page 8 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Getting Started Mechanical connection of the communications- module Fig. : Communications module dimensions ► Attach communications module using  M screws. Mechanical Note connection of the Make the ground connection either directly or using an RC combination to ground. communications- When making your connection to the Ethernet, be sure that the shield is perfectly module...
  • Page 9 Connect data line for host system to port X2. LED indicators The communications module is equipped with two LEDs. Fig. 5: Communications module, LED indicators Item Display Function LED 1 green Indicates ready state of the unit LED 2 yellow Indicates transmission of data to the controller www.balluff.com...
  • Page 10 Establish the physical connection. ► Start Internet browser, e.g. Microsoft IE. The latest version of Java Runtime Environment (JRE) must be installed. ► Enter device IP in the address line (Balluff factory default 192.168.72.22). ⇒ The Ethernet CONFIG program is now started.
  • Page 11 Default settings: Baud rate: 9600 Data bits: Parity: Even Stop bits: 1 ► Confirm the settings by clicking on OK and “Apply Settings”. Note The serial settings must agree with the parameter configuration in all connected BIS L-00-0-0xx-02-S115 processors. www.balluff.com...
  • Page 12 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Getting Started Mechanical connection Processor with integrated read head BIS L-400-043- 001-02-S115 Fig. 9: BIS L-00-0-001-02-S115 processor dimensions ► Attach processor using  M screws. Processor with offset read head BIS L-400-043- 002-02-S115 Fig.
  • Page 13 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Getting Started BIS L-400-043- 003-02-S115 Fig. 11: BIS L-00-0-00-02-S115 processor dimensions BIS L-400-043- 004-02-S115 Fig. 12: BIS L-00-0-00-02-S115 processor dimensions www.balluff.com...
  • Page 14 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Getting Started Mounting separation Fig. 1: Distance between processors The following distances between individual BIS L-00_ systems must be maintained: Distance x Distance Y BIS L-00-...-001- ... BIS L-00-...-002- ... 0.5 m 0. m BIS L-00-...-00- ...
  • Page 15 Fig. 15: Tee and terminating plug connected directly to Communications Module, processor directly to tee or tee directly to tee Fig. 16: Connecting processors with no terminating plug Communications module Tee BKS-S115-TW2-0 Processors on Line 1 (or Line 2) Terminating plug BKS-S117-R01 on Line 2 Connection cable BIS Z-5xx-… www.balluff.com...
  • Page 16 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Getting Started LED indicators Fig. 17: Processor LEDs Item Display Function LED 1 green Power flashing green Cable break test LED 2 yellow Tag Present yellow flashing Parity Error, e.g. wrong baud rate...

  • Page 17: Basic Knowledge

    The data carrier is a self-contained unit. It receives power from the read head integrated in the BIS L-00... processor. The read head continuously sends out a carrier signal which powers the data carrier as soon as the required distance is achieved. The read operation also takes place during this phase. www.balluff.com...

  • Page 18: Data Security

    Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Basic knowledge 4.3 Data security In order to ensure data integrity, data transfer between the data carrier and processor can be monitored using a check procedure. In the processor a CRC_16 data check can be configured. In CRC_16 data checking a check code is implemented on the data carrier which enables the data to be checked for validity at any time.

  • Page 19: Technical Data

    0 °C…60 °C conditions – EN 61000--2///5/6 – Severity level A/A/ – Severity level A/A/ – EN 55011 A/2A/A A/2A/A – Gr. 1, Cl. A – Gr. 1, Cl. A Vibration/shock EN 60068 EN 60068 Part 2-6/27/29/6/2 Part 2-6/27/29/6/2 www.balluff.com...
  • Page 20 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Technical Data LED indicators Fig. 20: Communications module, LEDs Item Display Function LED 1 green Indicates ready state of the unit LED 2 yellow Indicates transmission of data to the controller...

  • Page 21: Processor

    BIS L-200-0 / L-100-05 0–0 ± 15 – – – BIS L-201-0 / L-101-05 0–0 – ± 20 – – BIS L-202-0 / L-102-05 0–55 – – ± 0 – BIS L-20-0 / L-10-05 0–20 – – – ± 10 www.balluff.com...
  • Page 22 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Technical Data Mechanical data Housing material Plastic (PBT) Input/Output (RS22) 2 V DC, panel connector, 8-pin Enclosure rating IP65 (with connectors) Weight 170 g Electrical data Operating voltage VS 2 V DC ± 10 % ≤...
  • Page 23 0–15 0–20 0–25 BIS L-200-0 / L-100-05 0–2 ± 12 ± 12 ± 8 – BIS L-201-0 / L-101-05 0–27 ± 15 ± 15 ± 15 ± 6 BIS L-20-0 / L-10-05 0–16 ± 8 ±  – – www.balluff.com...
  • Page 24 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Technical Data Mechanical data Housing material Plastic (PBT) Read head housing material CuZn nickel plated Input/Output (RS22) 2 V DC, panel connector, 8-pin Enclosure rating IP67 Weight 170 g Electrical data Operating voltage VS 2 V DC ±...
  • Page 25 When v = 0 (static) with data carrier used with data carrier Distance Offset from center axis at distance: [mm] (installed in clear zone) [mm] read 0–5 0–8 0–11 BIS L-20-0 / L-10-05 0–11 ± 6 ±  ± 2 www.balluff.com...
  • Page 26 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Technical Data Mechanical data Housing material Plastic (PBT) Read head housing material CuZn nickel plated Input/Output (RS22) 2 V DC, panel connector, 8-pin Enclosure rating IP67 Weight 170 g Electrical data Operating voltage VS 2 V DC ±...
  • Page 27 0–15 0–20 0–25 BIS L-200-0 / L-100-05 0–2 ± 12 ± 12 ± 8 – BIS L-201-0 / L-101-05 0–27 ± 15 ± 15 ± 15 ± 6 BIS L-20-0 / L-10-05 0–16 ± 8 ±  – – www.balluff.com...
  • Page 28 Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Technical Data Mechanical data Housing material Plastic (PBT) Read head housing material CuZn nickel plated Input/Output (RS22) 2 V DC, panel connector, 8-pin Enclosure rating IP67 Weight 170 g Electrical data Operating voltage VS 2 V DC ±...

  • Page 29: Appendix

    Easy Loop Connection System BIS L-400-... and BIS Z-EL-... Appendix BIS Z – EL – 00X – xxx Ordering code Balluff Identification System Series Z Hardware type EL = Plastic housing, Easy Loop Type 001 = Ethernet with TCP/IP protocol...
  • Page 32 Balluff GmbH Schurwaldstrasse 9 7765 Neuhausen a.d.F. Germany Phone +9 7158 17-0 Fax +9 7158 5010 balluff@balluff.de www.balluff.com...

This manual is also suitable for:

Bis z-el seriesBis l-400-043-001-02-s115Bis l-400-043-002-02-s115Bis l-400-043-003-02-s115Bis l-400-043-004-02-s115
