Summary of Contents for caddytrek R3

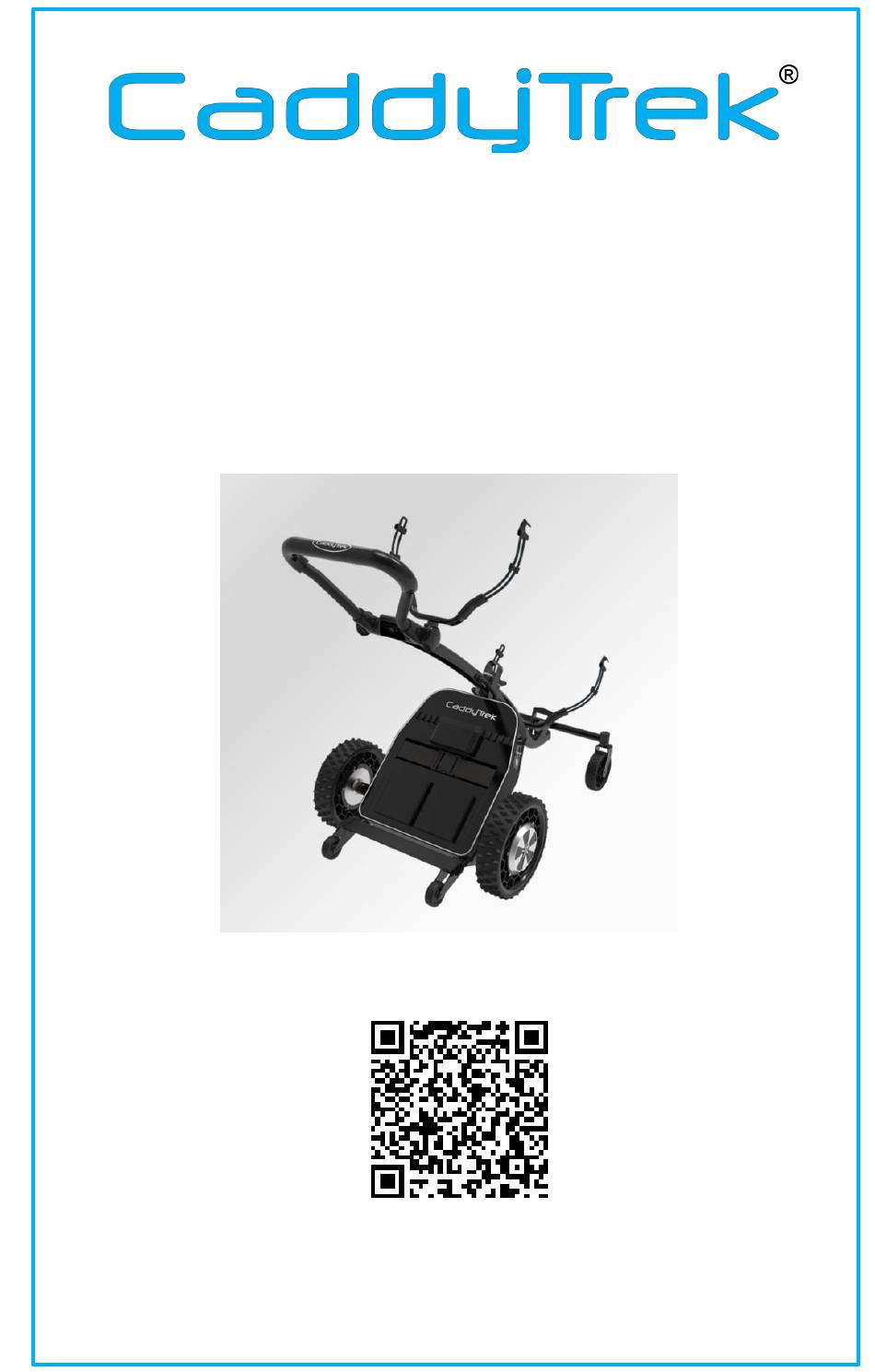

- Page 1 User Manual Digital User Manual Rev. 1.07...
- Page 2 Do not keep battery connected to the grid during prolonged power outages Do not splash or immerse battery in liquids Do not use non-CaddyTrek branded charger to charge battery as it may cause battery damage or cause fire Do not use battery if damaged ...
-
Page 3: Table Of Contents
Unfolding and Folding Powering Up the CaddyTrek Pairing and Synching Anti-Tipping Wheel Assembly Identifying LED Lights on CaddyTrek Using the Handset III. Operation Modes Manual Push Mode Remote Control Mode Follow Mode ... -
Page 4: Getting Started
I. G ETTING TARTED What’s included with the CaddyTrek? The CaddyTrek is shipped with the following items: Main Battery Main Battery Charger Handset Handset Battery Handset Battery Charger Charging the Battery The CaddyTrek uses a Lithium-Ion... -
Page 5: Using The Battery Chargers
If the indicator light is GREEN, the battery is charged. Unplug the charger from the battery. Carefully reinsert the battery back into the CaddyTrek and begin use. If the indicator light is not GREEN, charge for an additional 1-2 hours. -
Page 6: Unfolding And Folding
I. G ETTING TARTED Unfolding the CaddyTrek (scan QR code or click on link): https://youtu.be/tQDtWTl8Hsc Folding the CaddyTrek (scan QR code or click on link): https://youtu.be/G--lyhheOVo Familiarize yourself with the handset layout. Understanding how to quickly maneuver the unit is essential in avoiding an accident and getting maximum benefit out of the CaddyTrek. -
Page 7: Powering Up The Caddytrek
I. G ETTING TARTED Powering up the CaddyTrek 1. Sync handset to CaddyTrek a. Turn on the handset b. Turn on the unit Watch Video (scan QR code or click on link below): https://youtu.be/X-S-RV5U7-I Note: If all four lights on handset light up green, then you are NOT paired to the unit. -
Page 8: Identifying Led Lights On Caddytrek
I. G ETTING TARTED Identifying the LED Lights on CaddyTrek Solid white light = Camera warm up (apx. 45 sec - 2 beeps) Flashing green light = Stand By (SB) mode Flashing blue light = Remote Control (RC) mode Solid green light = Follow (FL) mode... -
Page 9: Using The Handset
II. U SING ANDSET Additional Handset Commands Note: All codes must be done from (SB) mode. The CaddyTrek powers up in (SB) mode and returns to (SB) mode upon exiting any other mode. 1. Mute the handset: Press the DOWN arrow (4) times then press STOP Repeat steps to disengage 2. -
Page 10: Operation Modes
Manual Push Mode (use on level ground) Make sure CaddyTrek and the handset are powered off. Guide CaddyTrek with the push/handle bar. CaddyTrek will not automatically brake when the power is off so use caution on hills and steep slopes. Remote Control (RC) Mode Power on the handset and then the CaddyTrek. -
Page 11: Follow Mode
III. O PERATION ODES Follow (FL) Mode Using Handset https://youtube.com/shorts/M6QjADlV4jg Follow (FL) Mode (without handset) 1. Activating “vision” follow Position yourself in front of the camera. Place your palm over camera (without touching the lens). When you hear the beep (from handset and unit), turn around and start walking. -
Page 12: Free Wheel Mode
Watch Video – Click on link or scan QR code below: https://youtu.be/uAf9rFHqknk Free-Wheel Mode With the CaddyTrek in Standby (SB) mode, push down on handle, until the anti-tipping wheel is touching ground. CaddyTrek will beep indicating free wheel mode. LED on CaddyTrek will turn solid green To disengage, cup camera with hand as shown in video, DO NOT TOUCH THE CAMERA LENS. -
Page 13: Precautions
IV. P RECAUTIONS Uphill / Downhill Pausing Always keep camera in-line of sight. While walking in “follow” mode up or down a hill, it is important to pause before proceeding to ensure the camera keeps line of sight. ... - Page 14 IV. P RECAUTIONS Wide Open Spaces CaddyTrek is designed for use in wide open spaces only. Do not operate CaddyTrek in enclosed or confined areas. The handle bar needs to AVOID interfering with camera. DO NOT BLOCK CAMERA. In the Parking Lot Use manual “Push”...
-
Page 15: Troubleshooting
If after 45 seconds, if you don’t hear a beep and a green blinking light, reboot the R3. To reboot the R3, turn off the unit and then turn back on. Must have blinking green light to use camera for follow mode. -
Page 16: Tips And Tricks
VI. T ______ _______ IPS AND RICKS When going down a steep hill, DO NOT use follow mode. This may cause cart to tip over. Use manual mode. Do not walk too fast – The unit may start to sway as the camera tries to find the user. -
Page 17: Warranty Policy
Maintain sufficient charging on the battery at all times. Charge battery using supplied charger for product. Please note: If your CaddyTrek needs to come in for warranty or service work, the unit must be shipped in its original shipping box. -
Page 18: Return Policy
CaddyTrek Warranty, Return and Shipping Policies You can view all our policies at https://www.caddytrek.com/policies/ Pg. 15... -
Page 19: Specifications
Aluminum Alloy (Aerospace Grade) Frame Color Black Cover Color Options Red, Black and Blue Handset Battery Type Lithium-ion polymer Operational Time 30 hours Charge Time 2 hours / DC Visit our YouTube page to see all our CaddyTrek R3 Videos. https://youtube.com/playlist?list=PLV7oLVS9x61- hamLsEjlnNJJF0QlYddZq&si=EnSIkaIECMiOmarE... - Page 20 Pg. 16 FTR Systems, Inc., CaddyTrek 6402 Montessouri Street Las Vegas, NV 89113 Phone: (702) 982-6598 www.caddytrek.com...
