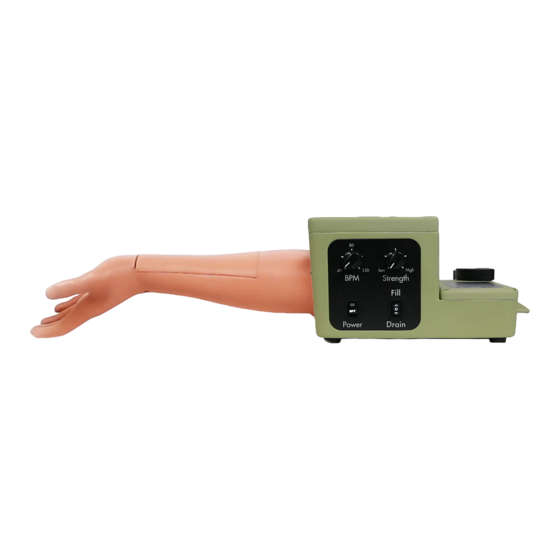

ArteriaLineTrainer
EASY SET UP
The Simulab ArteriaLine Trainer arrives pre-loaded with a replaceable artery and
ultrasoundable tissue. To begin, follow the simple instructions below:
PREPARE THE FLUID
Prepare the simulated arterial blood. Simply fill the fluid mixing container with
water, add a few drops of the red concentrate and mix.
FILL THE FLUID RESERVOIR
Remove the fluid tank cap and fill the fluid tank with 200 mL prepared
simulated arterial blood.
POWER THE SYSTEM
Connect the Power Supply to the System, plug into a wall outlet and turn the
power on with the power switch. If the system is properly powered, the switch
will light up green.
FILL THE ARTERY
With an artery installed, press FILL until the artery has completely filled. To
ensure the best imaging when using ultrasound, remove the hand cover to
check the tubing for bubbles. If bubbles are present press FILL again until the
fluid line is clear.
SYSTEM IS READY FOR USE
The system is ready for use! See back page for overview of system components.
DRAIN & REPLACE ARTERY
Push and hold DRAIN until the artery is clear of fluid. Turn system OFF.
Remove Tissue and replace artery.
CAUTION
To reduce risk of spray, drain artery completely before removing tissue.
POWER OFF
Please drain fluid tank and vessel, and power OFF when not in use.
info@simulab.com | 206-297-1260 | simulab.com
Advertisement
Table of Contents
Related Manuals for Simulab ArteriaLineTrainer
Summary of Contents for Simulab ArteriaLineTrainer
- Page 1 ArteriaLineTrainer EASY SET UP The Simulab ArteriaLine Trainer arrives pre-loaded with a replaceable artery and ultrasoundable tissue. To begin, follow the simple instructions below: PREPARE THE FLUID Prepare the simulated arterial blood. Simply fill the fluid mixing container with water, add a few drops of the red concentrate and mix.
- Page 2 ArteriaLineTrainer SYSTEM OVERVIEW An overview of the Simulab ArteriaLine Trainer components: Hand Cover Replaceable Tissue Arm Cap Battery Holder (battery sold separately) Fluid Tank Cap Artery Stands & Couplers Replaceable Artery Power Button BPM Control Pulse Strength Control FILL/DRAIN Button User Instructions info@simulab.com | 206-297-1260 | simulab.com...
- Page 3 If the tissue does not sit perfectly, lift the side of the tissue and make sure that the artery is aligned properly. PULL ARTERY UP AND OUT OF STANDS TWIST UNTIL IT CLICKS info@simulab.com | 206-297-1260 | simulab.com...
- Page 4 At the end of each course and before storage, drain the vessel by pressing and holding the DRAIN button. STORE SYSTEM EMPTY & REMOVE VESSEL To allow system tubing to dry, ensure you have fully emptied the fluid tank and remove the vessel. Ensure Artery is properly seated in the tissue. info@simulab.com | 206-297-1260 | simulab.com...
