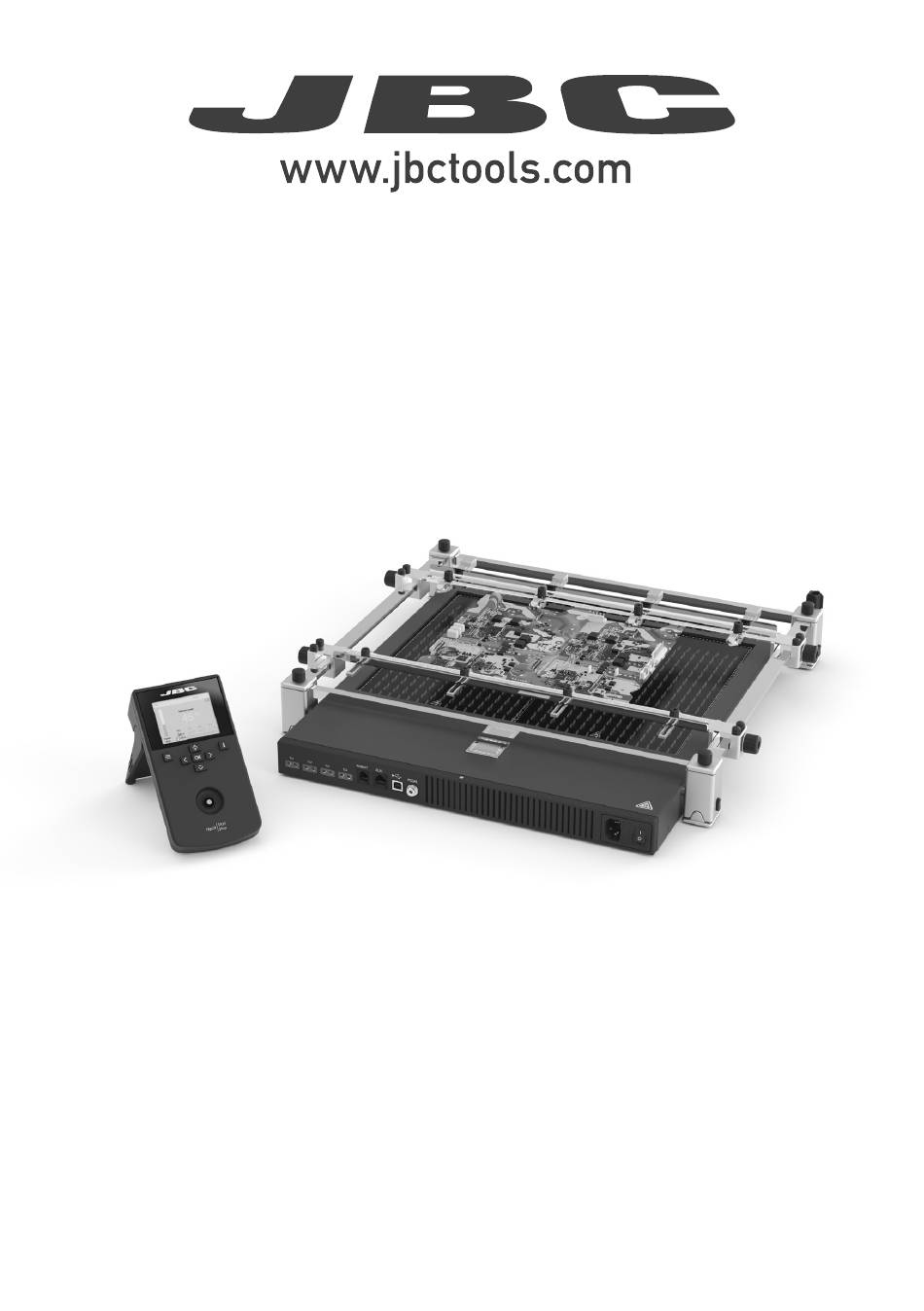

- Page 1 INSTRUCTION MANUAL PHBEK Preheater Set for PCBs up to 36x28cm/14x11”...
-
Page 2: Packing List
This manual corresponds to the following references: PHBE-9KA (100V) PHBE-1KA (120V) PHBE-2KA (230V) Packing List The following items are included: PHBE Preheater Unit....... 1 unit PHBS Support .......... 1 unit Ref. PHB-SA Console ......1 unit RJ45 Cable ....1 unit Power Cord .....1 unit Ref. -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections Preheater Unit Heating Areas Fixing Brackets for PHBS Support Zone A Zone B Thermocouple Connectors x4 (Type K) RJ12 Connector Main Switch to Robot RJ45 Connector Pedal Connector Power Socket to Console USB-B Connector Button for Foot Folding and Console... -
Page 4: Height Adjustment
Height Adjustment PHBS support allows changing the height between the PCB and the preheater heating area. It can be chosen between 3 positions for the working height adjustment: To change the height, do as follows: To raise the support, hold the base and pull up. To lower the support, press the button and push down. - Page 5 w w w.jbctools.com Fast PCB Replacement PHBS support lets you replace PCBs of the same batch fast and easily. Use the sliding guides to change the PCBs. Removing the PCB Placing another PCB Loosen one sliding guide, pull back and lift Position it and tighten the sliding guide knobs.
- Page 6 º º º º Power C 100 P 100 P 100 º º º P 100 º Work Display The console offers an intuitive user interface, which provides quick access to station parameters. 14:15 Status Indicator 14:15 Max. Rate Status Bar º...
-
Page 7: Recommended Guidelines
w w w.jbctools.com Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three different ways depending on what is needed. · Control: the unit maintains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 8: Work Mode
Max. Rate º 1.6ºC/s Selected 120 º 14:15 Work Mode º º º º Power Max. Rate C 100 P 100 P 100 º º º P 100 º º 1.6ºC/s Temperature Mode: Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected Selected 120 º... - Page 9 Work Mode w w w.jbctools.com Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
- Page 10 º º º Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit.
-
Page 11: Profile Editor
w w w.jbctools.com Profile Editor The Profile editor can be opened from the main menu or from the Profiles mode work screen by pressing the ‘OK’ button. In this mode, you can edit as many as 25 profiles of temperature. Profi... -
Page 12: Process Analysis
Process Analysis By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar. - Page 13 w w w.jbctools.com Files Export Graphics Insert a USB flash drive into the USB-A connector to save your soldering process in CSV format. Files Export / Import Profiles Insert a USB flash drive into the USB-A connector to export/import profiles. Update the Station Software 1.
- Page 14 Maintenance Maintanance Before carrying out maintenance or storage, always allow the equipment and the support to cool down. - Check periodically that the Pre Heater and the Support are clean. - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. - Only if it is absolutely necessary and if cleaning with isopropyl alcohol (IPA) is not enough, it is recommended to use a scraper to remove dirt in the glass area.
-
Page 15: Specifications
Specifications PHBEK Preheater Set for PCBs up to 36x28 cm / 14x11” Ref.: PHBE-9KA 100V. Input 100V 50/60Hz. Fuse 20A Ref.: PHBE-1KA 120V. Input 120V 50/60Hz. Fuse 20A Ref.: PHBE-2KA 230V. Input 230V 50/60Hz. Fuse 10A - Total Net Weight: 9.7 kg / 21.6 lb... - Page 16 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
