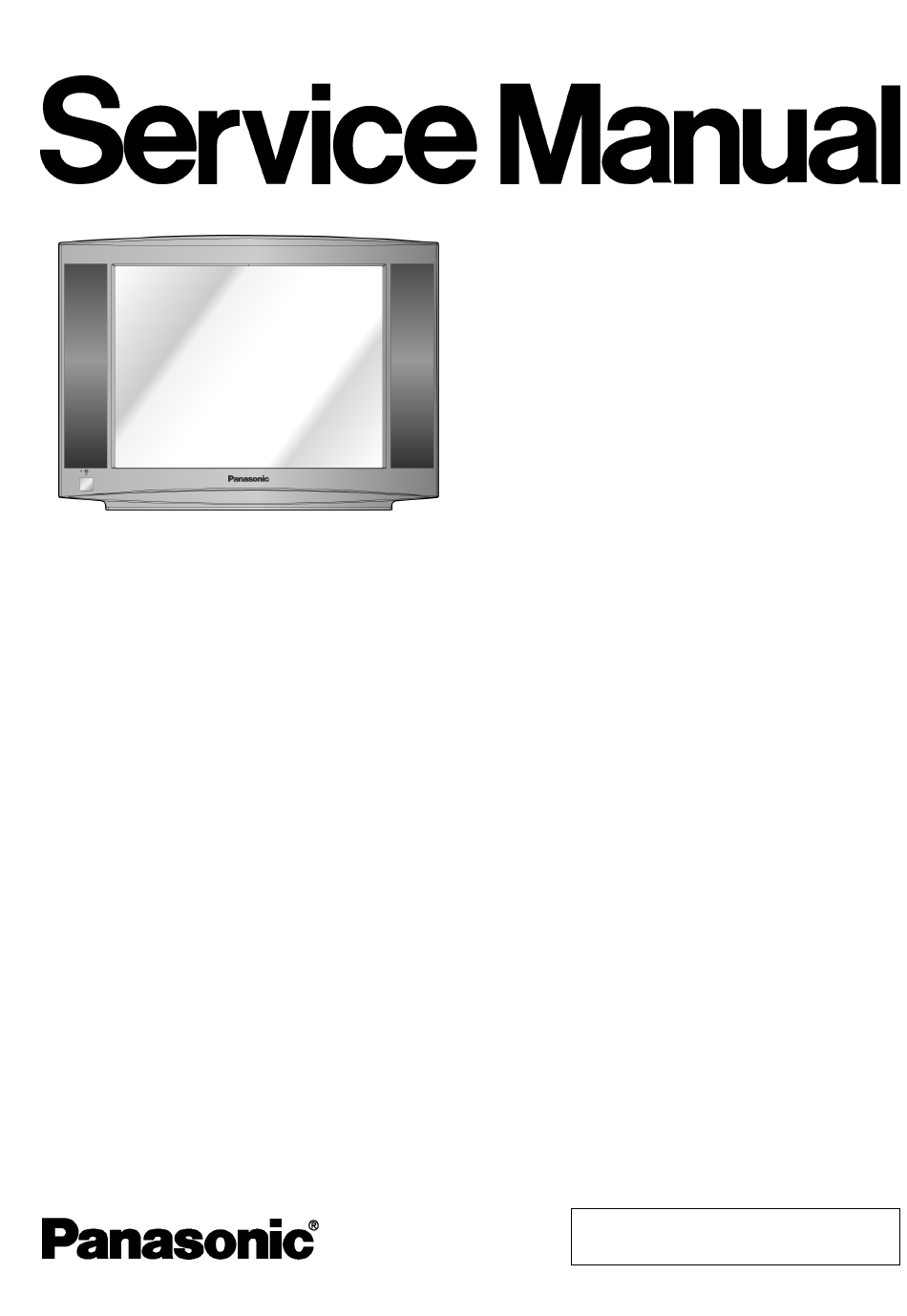

Panasonic TX-21RX25R Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. TV
  5. TX-21RX25R
  6. Service manual

Panasonic TX-21RX25R Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Specifications
Power Source :
Power Consumption :
Aerial Impedance :
Receiving System :
Receiving Channels :
VHF
UHF
CATV
AC SINGLE 220-240 V, 50/60 Hz
75 Ω unbalanced
Coaxial type
17 Systems
2-12 PAL / SECAM B, K1
0-12 PAL B (AUST)
1-9 PAL B (N. ZEALAND)
1-12 PAL / SECAM D
1-12 NTSC M (JAPAN)
2-13 NTSC M (U.S.A.)
21-69 PAL G, H, I / SECAM G, K, K1
28-69 PAL B (AUST)
13-57 PAL D, K
13-62 NTSC M (JAPAN)
14-69 NTSC M (U.S.A.)
S1-S20 (OSCAR)
1-125 (U.S.A. CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST)
TX-21RX25R
GP41Z Chassis
Video / Audio Terminal :
86 W
DVD
P
P
AV 1, 2, 3
Video In
Audio In
Monitor Out
Video Out
Audio Out
High Voltage :
Picture Tube :
Audio Output :
Dimensions :
Mass :
Specifications are subject to change without notice.
Mass and dimensions shown are approximate.
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights
distribution is a violation of law.
ORDER NO. MTV0801590CE
Colour Television
Y
B
R
reserved.
Unauthorized
1.0 Vp-p 75 Ω
0.7 Vp-p 75 Ω
0.7 Vp-p 75 Ω
1 Vp-p 75 Ω
Approx. 0.5 V, 47 kΩ
1 Vp-p 75 Ω
Approx. 0.5 V, 1 kΩ
24.0 kV ± 1.5
at zero beam current
A51QGA993X01
51.0 cm (21 inches)
Measured diagonally,
90° deflection
20.0 W
Height : 431 mm
Width : 596 mm
Depth : 340 mm
20.5 kg (Net)
copying
and
