- Page 1 INSTRUCTION MANUAL This handy guide will help you put your Nex fan together. Have more questions? Talk to us at care@nexlife.com...
- Page 2 1. Place the motor on thermo buffer to avoid any scratches as shown in (Figure 1). 2. Unscrew the blade screw from Motor and align the blade with the motor as shown in (Figure 1). 3. Screw the Blade to the Motor and ensure a tight fit. Figure 1 Figure 2 THERMO BUFFER...

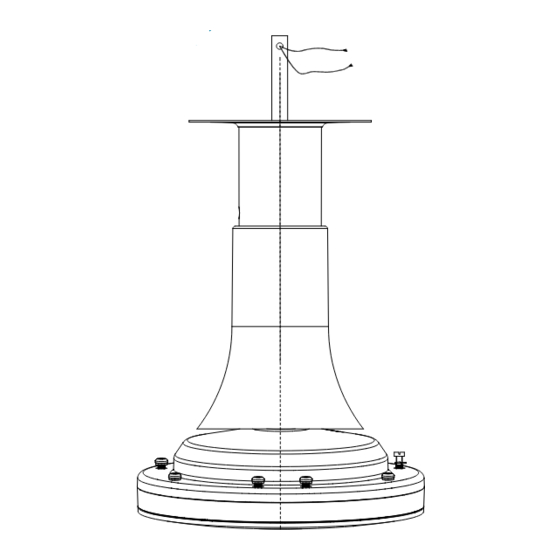

- Page 3 Hold the down-rod vertically with Slit side downward. 2. Pass the connection wires through slit hole at the Bottom end of Figure 6 a down rod (3) and remove them from the top end of down rod (Figure 2). Slide canopy stopper (4a) from bottom side & ensure connection wire will be aligned with stopper slot (Figure 6a).
- Page 4 1. Assemble top canopy (5) and false ceiling cover (5b) togather (figure 7) and slide it up from bottom end of down rod (already mounted). 2. Slide the bottom canopy(4) from down side of top canopy(5). 3. Slide canopy stopper (4a) from bottom end of down rod (already mounted) (Figure 7). 4.
- Page 5 The diagram of fan are just the general representation of ceiling fan and not the actual fan. Read the instructions carefully. Open the packing and arrange the fan parts as per the numers marked on diagram. Assemble & install fan as per the assembly, wiring diagram and written instruction.
- Page 6 Ceiling Fan Room Size Fan Sweep recommend Sweep for different Less than 8 X 8 ft 600mm (24 ”) room sizes. 8-10 ft X 8-10 ft 900mm (36 ”) 11-13 ft X 11-13 ft 1200mm (48 ”) 14-16 ft X 14 -16 ft 1300mm (52 ”), 1400mm (56 ”) Figure 9 REGULATOR...
- Page 7 Installation of Secondary Support Cable CAUTION The purpose of Secondary support Cable is to temporarily hold the fan with ceiling hook, in case of failuse of primary suspension system, which may happen due to faulty installation, inadequate tightening of fasteners like nut & bolts etc. The fan should be switched off immediately & faulty system should be corrected before using again.
