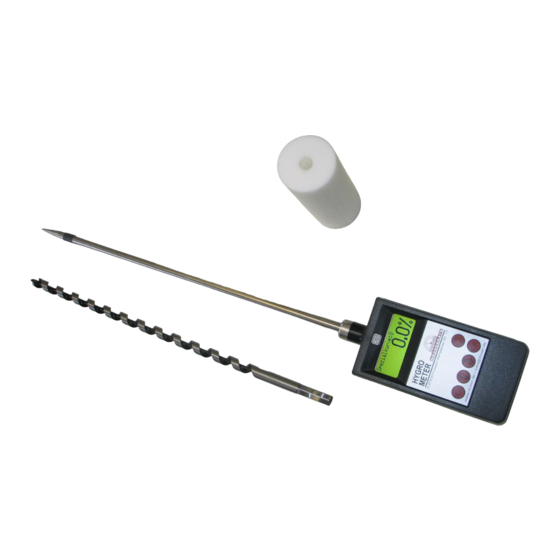

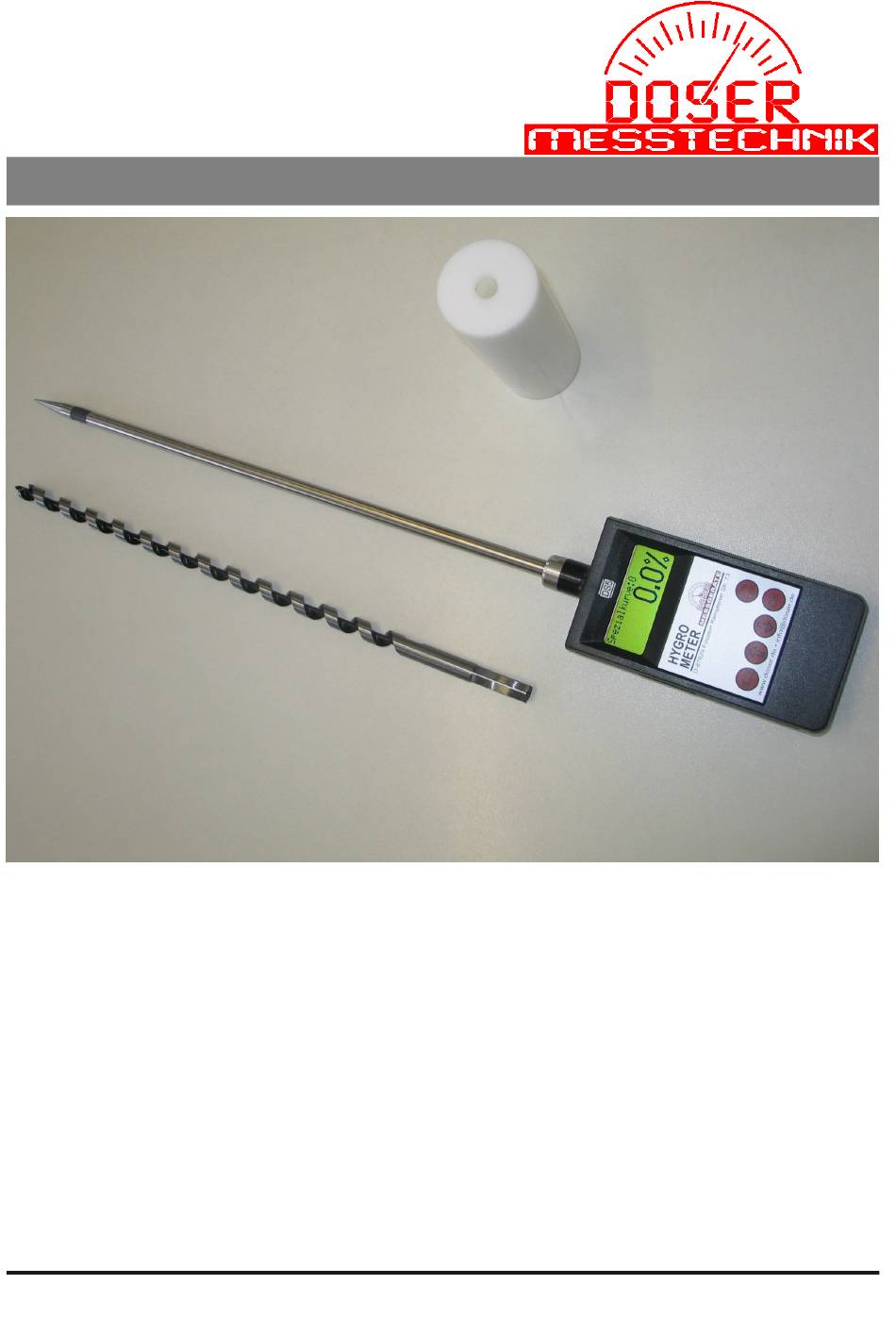

- Page 1 Feuchtigkeitsmessgeräte Moisture Meter Humidimètre DS5U Operating Manual The DS5U can be used for measuring absolute moisture in waste paper balls, wooden chips, pellets, ... version 201910 page 1...
-
Page 2: Safety Tips
Damages caused by failure to follow the above Safety Tips are not covered by the warranty ! Description: The electronic moisture meter DS5U is used to determine in a matter of seconds the moisture in materials. The average moisture, approx. 3 cm below and 4 cm above the sensor is measured. -
Page 3: Turn On The Meter
DS5U Operating Manual Turn on the Meter: Push ON/OFF-button, the display shows the adjusted material group. Hold the instrument into the air for automatic zero point measurement and correction. If the zero point is not in the valid range, the display 116 Ahorn hart am shows “ZP-ERROR”. -
Page 4: Turn Off The Meter
DS5U Operating Manual Turn off the Meter: - push "ON/OFF" button until the display shows an OFF-text as long as the ON/OFF-button is pressed - release "ON/OFF" button, the meter is turned off After an adjustable time the instrument switches off automatically. If switch off time is adjusted to 0, the automatic turning off is deactivated. -
Page 5: Measurement Storage
After changing the calibration corner points, no addtional teaching is possble for this material. Measurement Storage The DS5U is able to store up to 500 moisture values. Storage menu - setting: the storage can be switched on, automatic or single measurements can be selected. - Page 6 DS5U Operating Manual Storage possibilities: storage on, single values: In the second line on the left side “on” is displayed, when the storage is aktiv. Single moisture values can be stored through waste paper no.1 pressing the OK-button. In the third line on the left, the number of 5.8%...
-
Page 7: Basic Calibration
DS5U Operating Manual Checking Measuring Quality: We recommend carrying out regular periodical controlling check measurements, as different local circumstances might need different material adjustments. (recommendation: controlling measurements by oven drying method. Oven Drying Method: The oven drying method is the most acurate way to measure the material moisture in paper or wood. -
Page 8: Change Battery
We constantly work to improve our products and reserve the right to alter our products and operating instructions without advanced notification. DOSER MESSTECHNIK GmbH & Co.KG - Kemptener Str. 73 - 87629 Füssen - Germany Tel:+49 (0) 8362 9159 402 - Fax:+49 (0) 8362 9159 407 - info@doser.de - www.doser.de...
