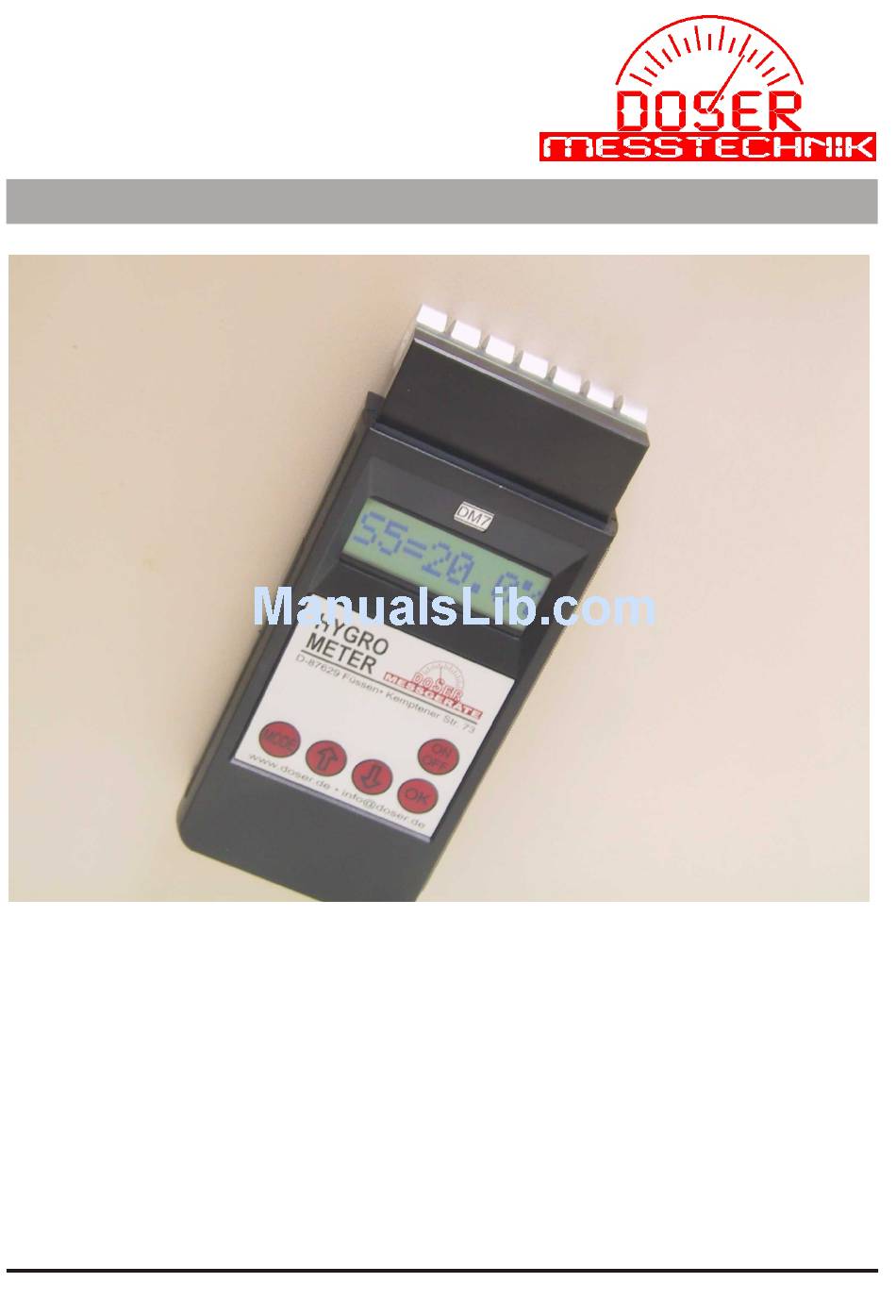

- Page 1 Feuchtigkeitsmessgeräte Moisture Meter Humidimètre DM7 Operating Instructions Moisture Meter type DM7 for veneers, corrugated boards, sigle card boards, cardboard pipes etc. version 2011 page 1...
- Page 2 Moisture Meter Type DM7 Description: The electronic moisture meter DM7 is used to determine in a matter of seconds the moisture in materials. The average moisture, down to a depth of approx. 1 cm is measured. materials: veneers, plywood, corrugated boards, single cardboards,...
- Page 3 Moisture Meter Type DM7 Measurement Preparation: - material thicknesses < 3 cm ‚: use suitable bases • (for example: polystyrene or foamed plastic plates - no metal!) or even better: hold the material to be measured into the air - thin materials (< 1 cm) ‚: measure on a pile (thickness at least 2 cm, avoid air gaps between the individual layers) - look for an even, smooth surface ƒ...
- Page 4 Moisture Meter Type DM7 Setting of Material number: Ser. Nr. Ser. Nr. DM4A DM4A With the MODE-button the required material number can be selected. The 009871 009871 display shows S1 if the material setting S1 was selected before. The material number can be changed with the arrow buttons. At the material groups A and B it’s possible to switch between wood to building materials...
- Page 5 Moisture Meter Type DM7 Checking Measuring Quality: We recommend carrying out regular periodical controlling check measurements, as different local circumstances might need different material adjustments. (recommendation: controlling measurements by oven drying method ISO 3130-1975 for wood or DIN ISO 287 for paper)
- Page 6 Moisture Meter Type DM7 Customer Specific Linearisation Curves: The meter can be programmed for up to 10 customer specific linearisation curves. Each curve is programmable with up to 8 points. The curves are stored in a EEPROM, the curves will stay in the memory during replacement of the battery.
- Page 7 Moisture Meter Type DM7 Special Usings, Recommendation Measuring moisture in caravans, trailers, mobile homes For these applications we produce instruments with shortened sensors as shown in the picture opposite. With such sensors measurements can be made in edges without being influenced through the adjoined wall.
- Page 8 We constantly work to improve our products and reserve the right to alter our products and operating instructions without advanced notification. DOSER MESSTECHNIK GmbH & Co.KG - Kemptener Str. 73 - 87629 Füssen - Germany Tel:+49 (0) 8362 9159 402 - Fax:+49 (0) 8362 9159 407 - info@doser.de - www.doser.de...
