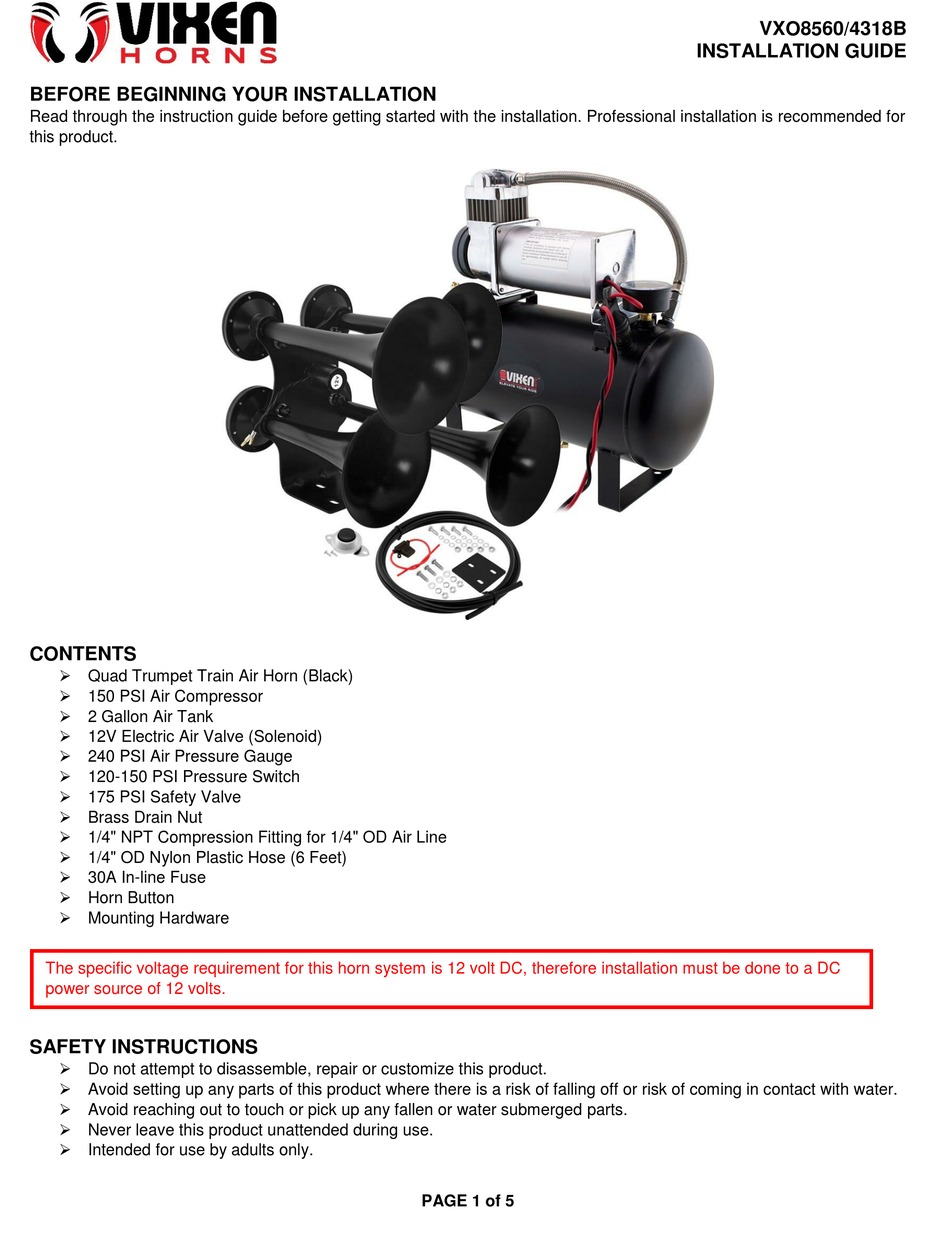

BEFORE BEGINNING YOUR INSTALLATION
Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS
 Quad Trumpet Train Air Horn (Black)
 150 PSI Air Compressor
 2 Gallon Air Tank
 12V Electric Air Valve (Solenoid)
 240 PSI Air Pressure Gauge
 120-150 PSI Pressure Switch
 175 PSI Safety Valve
 Brass Drain Nut
 1/4" NPT Compression Fitting for 1/4" OD Air Line
 1/4" OD Nylon Plastic Hose (6 Feet)
 30A In-line Fuse
 Horn Button
 Mounting Hardware
The specific voltage requirement for this horn system is 12 volt DC, therefore installation must be done to a DC
power source of 12 volts.

SAFETY INSTRUCTIONS

 Do not attempt to disassemble, repair or customize this product.
 Avoid setting up any parts of this product where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Never leave this product unattended during use.
 Intended for use by adults only.
PAGE 1 of 5
VXO8560/4318B
INSTALLATION GUIDE
