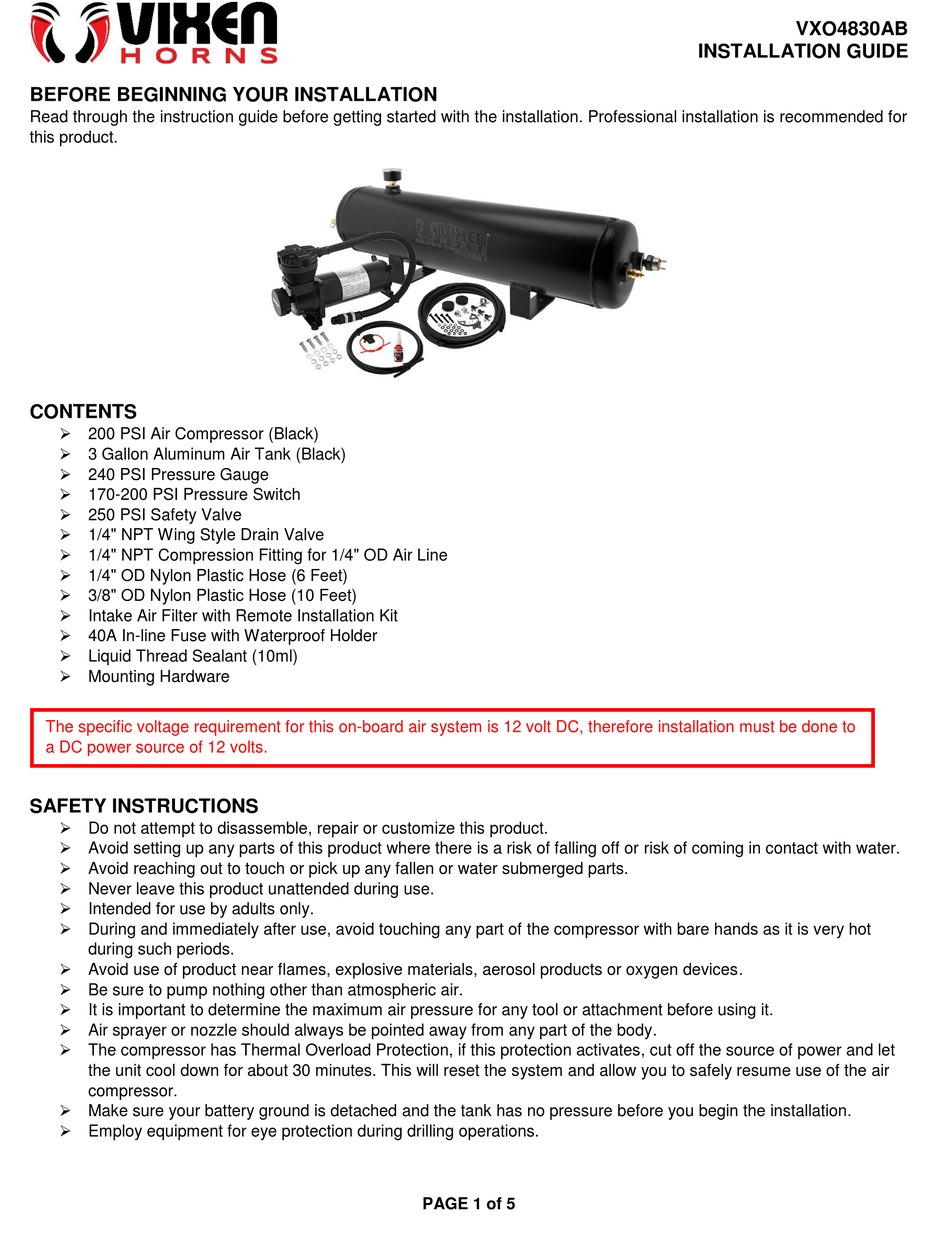

BEFORE BEGINNING YOUR INSTALLATION
Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS
200 PSI Air Compressor (Black)
3 Gallon Aluminum Air Tank (Black)
240 PSI Pressure Gauge
170-200 PSI Pressure Switch
250 PSI Safety Valve
1/4" NPT Wing Style Drain Valve
1/4" NPT Compression Fitting for 1/4" OD Air Line
1/4" OD Nylon Plastic Hose (6 Feet)
3/8" OD Nylon Plastic Hose (10 Feet)
Intake Air Filter with Remote Installation Kit
40A In-line Fuse with Waterproof Holder
Liquid Thread Sealant (10ml)
Mounting Hardware
The specific voltage requirement for this on-board air system is 12 volt DC, therefore installation must be done to
a DC power source of 12 volts.
SAFETY INSTRUCTIONS
Do not attempt to disassemble, repair or customize this product.
Avoid setting up any parts of this product where there is a risk of falling off or risk of coming in contact with water.
Avoid reaching out to touch or pick up any fallen or water submerged parts.
Never leave this product unattended during use.
Intended for use by adults only.
During and immediately after use, avoid touching any part of the compressor with bare hands as it is very hot
during such periods.
Avoid use of product near flames, explosive materials, aerosol products or oxygen devices.
Be sure to pump nothing other than atmospheric air.
It is important to determine the maximum air pressure for any tool or attachment before using it.
Air sprayer or nozzle should always be pointed away from any part of the body.
The compressor has Thermal Overload Protection, if this protection activates, cut off the source of power and let
the unit cool down for about 30 minutes. This will reset the system and allow you to safely resume use of the air
compressor.
Make sure your battery ground is detached and the tank has no pressure before you begin the installation.
Employ equipment for eye protection during drilling operations.
PAGE 1 of 5
VXO4830AB
INSTALLATION GUIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vixen Horns VXO4830AB
Summary of Contents for Vixen Horns VXO4830AB
- Page 1 VXO4830AB INSTALLATION GUIDE BEFORE BEGINNING YOUR INSTALLATION Read through the instruction guide before getting started with the installation. Professional installation is recommended for this product. CONTENTS 200 PSI Air Compressor (Black) 3 Gallon Aluminum Air Tank (Black) 240 PSI Pressure Gauge ...
- Page 2 VXO4830AB INSTALLATION GUIDE PLANNING YOUR INSTALLATION Before beginning the installation, determine each component’s spot. Confirm you have the proper length of airline and wire. Power wire to compressor should be kept short. To power up the air compressor, make sure you use a 12-gauge wire or thicker.
- Page 3 VXO4830AB INSTALLATION GUIDE AIR TANK MOUNTING Find a convenient mounting location in your vehicle for the air tank. Ensure ports are reachable before drilling any holes. Mark the location of holes using the mounting brackets of the air tank as a template, and then drill to size.
- Page 4 VXO4830AB INSTALLATION GUIDE ELECTRICAL CONNECTION The red wire of the compressor should be connected to (+) 12-volt power source. IMPORTANT: To prevent the compressor from over running and possible damage due to an air leak, connect the compressor’s red wire to a power source in the vehicle that only gets power when the vehicle’s ignition is on.
- Page 5 VXO4830AB INSTALLATION GUIDE SOLUTIONS TO COMMON ISSUES Issue: Compressor inoperable. Solution 1: Check all switches to make sure they are ON. Solution 2: Check the fuse; if blown, disconnect compressor from power and replace the fuse. Solution 3: Allow compressor to cool off for 30-60 minutes.
