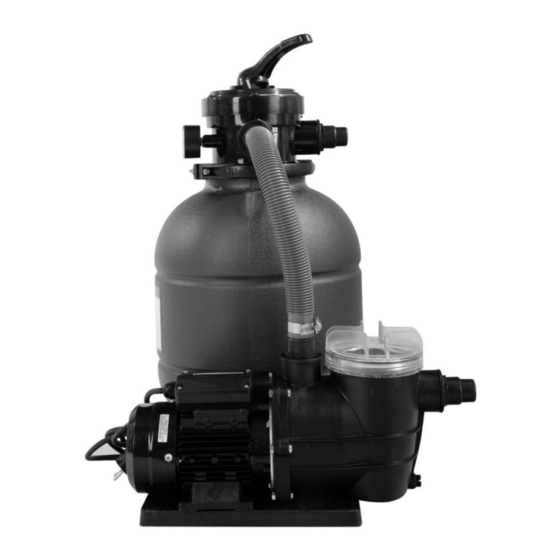

- Page 1 Original User Manual – A S Sand Filter System REBO Sand Filter System AR-HE-SA/G/S Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
Original User Manual – A S Sand Filter System REBO Table of Contents 1. Safety Instructions ..........3 1.1 Explanation of the symbols ..............3 1.2 General Safety Instructions ............... 4 1.3 Safety Instructions for electrical devices ........... 4 1.4 Functional principle of the sand filtration system......5 2. -
Page 3: Safety Instructions
Original User Manual – A S Sand Filter System REBO Thank you for purchasing our product. Please read the operating instructions carefully before using the product for the first time. If you give the product to a third party, this manual must be handed over with it. -
Page 4: General Safety Instructions
Original User Manual – A S Sand Filter System REBO 1.2 General Safety Instructions • The sand filter can be used with a temperature > than 0°C and < than 40°C. You should never operate the filter outside of these temperatures, otherwise damage may occur. •... -
Page 5: Functional Principle Of The Sand Filtration System
You can obtain the addresses from your city or local government. You can find out about other return options created by us on our website www.arebos.de. The separate collection of Waste electrical or electronic equipment is intended... -
Page 6: Instruction Before Installation
Fax: +49 (0) 931 4523 2799 / E-Mail: info@arebos.de Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ 3. Instruction before Installation 3.1 Placement 1.) Place the filter as close to the pool as possible. -
Page 7: Technical Data
Original User Manual – A S Sand Filter System REBO 4. Technical Data Model Description AR-HE-SA/G/S Flow Rate (Pump) 10,23m Designated Flow Rate Max. Operating Pressure 3,5 bar Filtration Area 0,07m Voltage 230 V AC; 50-60Hz Sand Volume 19 kg... -
Page 8: Assembly
Original User Manual – A S Sand Filter System REBO Number Description Amount 4-Way-Valve Flange Connection O-Ring Seal Filtration Tank Filter Pipe Drain Plug Base Plate Screws M6x25 and Nut M6 9&10 Pipe Connection with O-Ring Hose Clamp 32mm x 45cm Tube 0,35- PS Pump (230 V- 50 Hz) Filling Pattern Pressure Gauge... - Page 9 Original User Manual – A S Sand Filter System REBO Mount the cover. 2.) Mount the pump to the base plate (7) with the four screws and nuts (8).
- Page 10 Original User Manual – A S Sand Filter System REBO 3.) Install the drain plug. a) Put the sealing on the thread of the plug. Put the valve from the inside through the hole of the tank. Wall of Tank Seal and Flange Inside Drain Cap (with seal) Nut (with seal) outside...
- Page 11 Original User Manual – A S Sand Filter System REBO 4.) Put the tank into the base and turn clockwise to lock it. 5.) Set the white filter pipe into the tank. Use the pattern (14) before filling in the sand. This avoids filter material inside the filter unit.
- Page 12 Original User Manual – A S Sand Filter System REBO b) Place the sand protection on the middle shaft of the distributor. This ensures that no sand gets into the distributor unit when filling the tank. c) Carefully fill the filter tank with the correct amount of #20 quartz sand (19 kg are required). The sand should be filled at least halfway to the tank and at most to ¾.
- Page 13 Original User Manual – A S Sand Filter System REBO c) Align the valve so that the pump connection points to the pump motor outlet. Gate „PUMP“ 8.) Pump to 4-way-Valve a) Mount the connections with O-Ring to the exit of the pump and to the gate of the valve. „PUMP“...
- Page 14 Original User Manual – A S Sand Filter System REBO b) Connect the pump with the valve (“Pump”) by the hose (12) and lock it with the clamps (11). c) Tighten both hose clamps. 9.) Disassemble the small plug and screw in the pressure gauge with the sealing. Do not overtighten! Keep the small plug stored.
-
Page 15: Filter Function
Original User Manual – A S Sand Filter System REBO 10.) Screw the plug (with seal) into the "WASTE" connection (backwash connection). Remove during backwashing. 7. Filter Function 7.1 Connection of the Filter System Caution: Before connecting hoses to the filter and pumping, make sure that no water can flow through the inlet or return hoses connected to the pool. - Page 16 Original User Manual – A S Sand Filter System REBO In these instructions it is assumed that the pool is already equipped with hoses attached to the water inlet and return connections of the pool. Connect a hose connection to the front of the filter housing and to the pool connection of the valve.
-
Page 17: Warnings
Original User Manual – A S Sand Filter System REBO 7.2 Warnings 1.) Make sure that the filter operates below the working pressure and use a pressure control valve if the system uses a booster pump. 2.) If the pump position is higher than the water level, the black water valve must be installed. 3.) If the pump position is lower than the water level, a shut-off valve must be installed. -
Page 18: During Use
Original User Manual – A S Sand Filter System REBO 8.3 During use 1.) Write down the initial pressure gauge value when the filter is clean (it varies depending on the pump and general pool piping system). As the filter removes dirt and impurities from the pool water, accumulation in the filter will cause the pressure to increase and the flow to decrease. -
Page 19: Maintenance
Original User Manual – A S Sand Filter System REBO Sand in Pool When sand was replaced, Flush as long as the water is dirty the smallest parts will flush Flush for 30sec into drain pipe Replace the sieve Sand in central valve (due to flushing) Sieve is damaged Air in system... -
Page 20: To Be Checked Regularly
Original User Manual – A S Sand Filter System REBO 4.) Before starting the pump, make sure that the electrical protection devices of the motor are calibrated and that the protection devices against electrical and mechanical contacts are correctly positioned and fitted. 5.) It is recommended to follow the steps below before handling the pump in any way. -
Page 21: Eu Declaration Of Conformity
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
