USE ONLY WITH Model FP-08450 Control Panels
2
Introduction....................................................................................... 2
3
Components List ................................................................................ 2
4
Design Considerations ....................................................................... 2
5
Installation ........................................................................................ 3
6
Wiring Diagram .................................................................................. 4
7
Operation ........................................................................................... 5
8
Commissioning .................................................................................. 5
9
Servicing and Maintenance ............................................................... 5
10
Specifications .................................................................................... 5

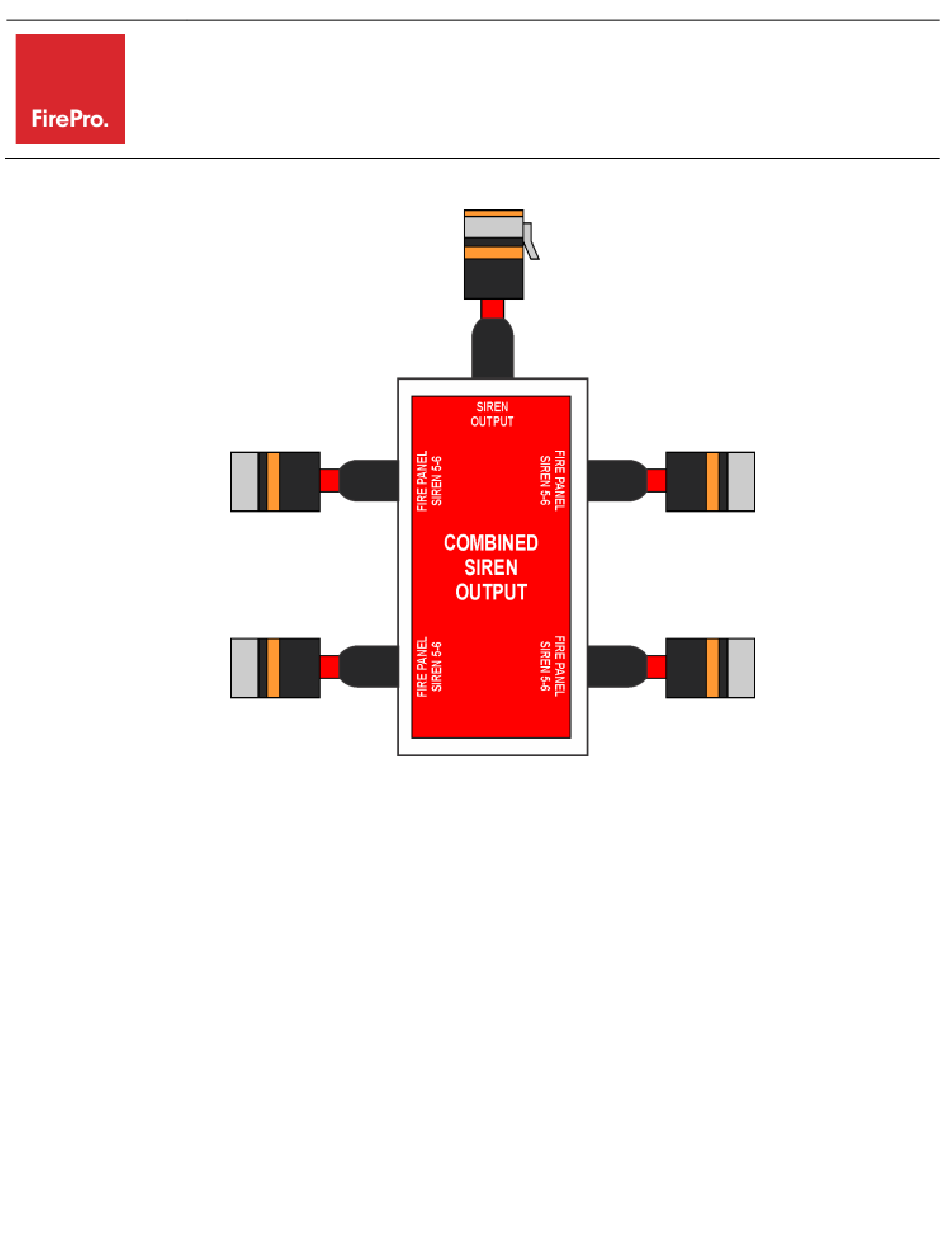

Combined Siren Output Module
Fire System with Multiple Control Panels
Contents
Model FP-08944
Rev 1.0
Advertisement
Table of Contents
Related Manuals for FirePro FP-08800
Summary of Contents for FirePro FP-08800
-
Page 1: Table Of Contents
Combined Siren Output Module Fire System with Multiple Control Panels Model FP-08944 Rev 1.0 USE ONLY WITH Model FP-08450 Control Panels Contents Introduction..................2 Components List ................2 Design Considerations ............... 2 Installation ..................3 Wiring Diagram .................. 4 Operation ................... 5 Commissioning .................. -
Page 2: Introduction
The FirePro Combined Siren module reports the status of the siren/strobe circuit to the control panel connected to the “FIRE PANEL 1” input. All other connected control panels are monitored only to their connection to the module. -
Page 3: Installation
FirePro generators must remain disconnected until system is completed and fire control panel is no longer in a fault or alarm condition. The FirePro Universal Test Lamp (P/N FP-08800) can be used to take the panel out of a fault condition. -
Page 4: Wiring Diagram
3. Mount the siren/strobe (P/N FP-08940) in a location where it is visible and audible in all points with the risk area and connect to the “SIREN OUTPUT” on the module (marked orange). If more than one siren/strobe is being installed, they are to be connected using the secondary positive/negative terminals in the sounder. -
Page 5: Operation
Note: Where shutdown relays have been installed, all personnel should be made aware equipment will not be operable until testing is completed. 1. Isolate and disconnect the any installed FirePro aerosol generators. This should generate a fault on the fire control panel. Connect a FirePro FP-08800 Universal Test Lamp.
