azuga SafetyCam AI Installation Manual

Auxiliary camera
Hide thumbs Also See for SafetyCam AI:

Advertisement

Quick Links

Download this manual
Installation Guide
SafetyCam AI
Auxiliary Camera
© 2022 Azuga, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SafetyCam AI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for azuga SafetyCam AI

Summary of Contents for azuga SafetyCam AI

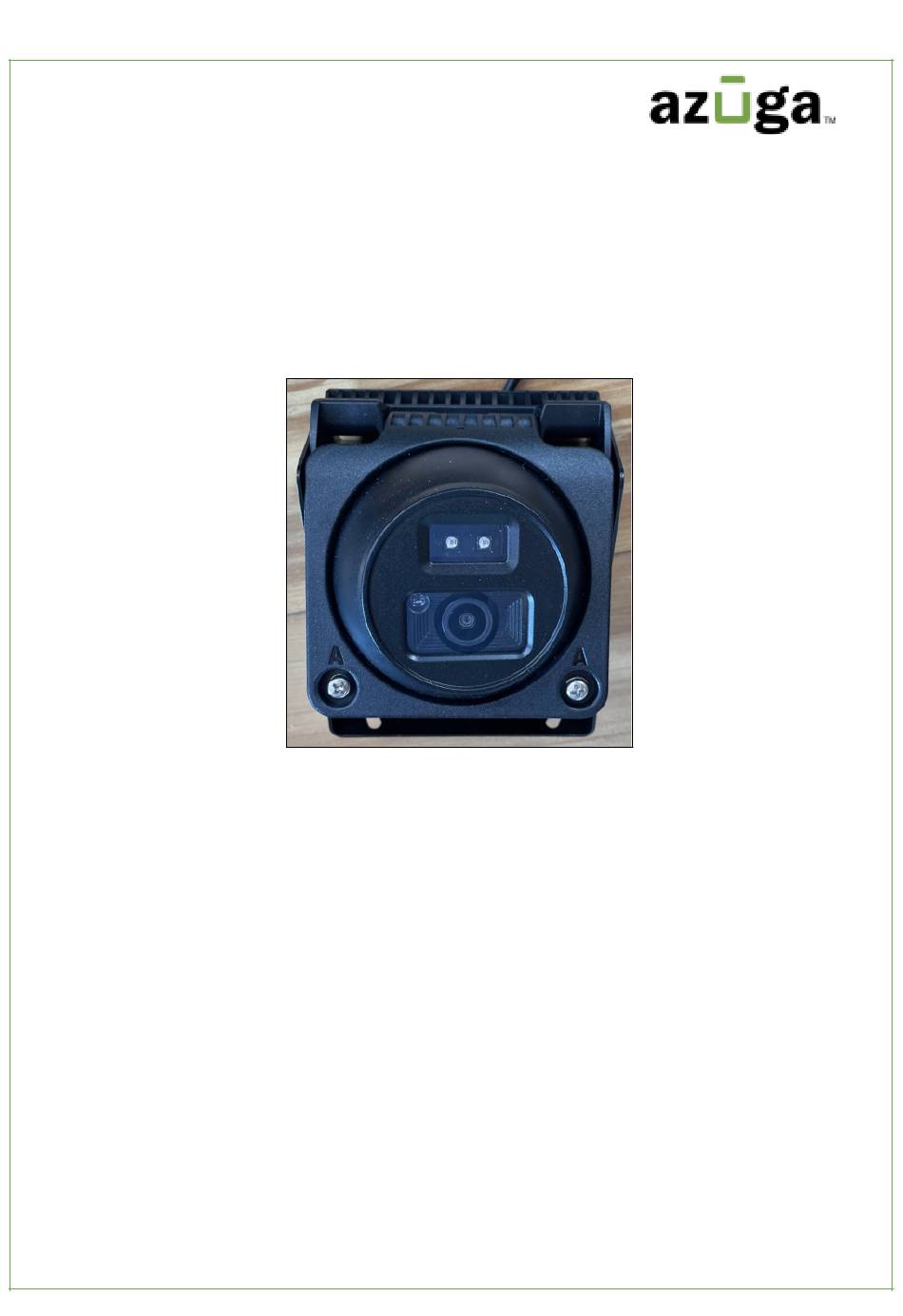

  • Page 1 Installation Guide SafetyCam AI Auxiliary Camera © 2022 Azuga, Inc. All rights reserved.

  • Page 2: Table Of Contents

    OVERVIEW _____________________________________________________________ 1 WHAT’S IN THE BOX? _____________________________________________________ 1 REVISION HISTORY _______________________________________________________ 2 INSTALLATION ______________________________________________________ 2 ADJUSTING THE VIEWING ANGLES ________________________________________ 4 RESET BUTTON ______________________________________________________ 6 PAIRING MAIN AND AUXILIARY CAMERA ____________________________________ 7 © 2022 Azuga, Inc. All rights reserved.

  • Page 3: Overview

    Overview We appreciate your interest in choosing Azuga AI dashcams as your fleet safety partner. This document covers instructions for a new user on • How to install the AUX camera on the vehicle. • How to set up the camera.

  • Page 4: Revision History

    Mounting bracket Revision History Date Revision Comment Jan 2023 Version 1 Initial Version Installation Install upto three auxiliary cameras at different spots per vehicle to enable live footage of additional angles during the trip. © 2022 Azuga, Inc. All rights reserved.
  • Page 5 *Before installing the Auxiliary cameras, ensure the main camera is installed and associated with your Azuga Fleet account. *Refer to Safetycam AI Installation Guide for additional information. 1. Ensure the AUX camera is connected to the ignition power source (12V or 24V) using the attached power cable via a fuse.

  • Page 6: Adjusting The Viewing Angles

    Important: Refer Adjustment-camera angle section to change video angles. Adjusting the viewing angles of a wrap-mount camera 1. Loosen the screws on each side of the lens at the bottom of the camera, using a screwdriver. © 2022 Azuga, Inc. All rights reserved.
  • Page 7 3. Adjust the lens. 4. Check the viewing angle of the lens through the dashcam recordings. 5. Tighten the screws. Note: Reach out to customercare@azuga.com for information on Safteycam AI installation procedures. © 2022 Azuga, Inc. All rights reserved.

  • Page 8: Reset Button

    Hold the reboot button for: Three seconds to reboot the auxiliary camera. ● Rebooting the camera turns it off and then back on. Twelve seconds to reboot and unpair from the dashcam. ● © 2022 Azuga, Inc. All rights reserved.

  • Page 9: Pairing Main And Auxiliary Camera

    12 seconds to reset. 3. On the main camera unit, tap on the screen and enter the default PIN 3333 to unlock the dashcam for the first time. 4. Press Settings. © 2022 Azuga, Inc. All rights reserved.
  • Page 10 5. Scroll down and press WiFi. 6. Toggle the button to turn on the Mobile Hotspot. 7. Return to the Settings menu. 8. Scroll down and press Add Cameras. © 2022 Azuga, Inc. All rights reserved.
  • Page 11 YES. If it is not the auxiliary camera you want to pair with, press NO. The dashcam continues to search for available, unpaired cameras. © 2022 Azuga, Inc. All rights reserved.
  • Page 12 To confirm that the auxiliary camera is paired successfully, scroll down, and press More Info. © 2022 Azuga, Inc. All rights reserved.
  • Page 13 Repeat the steps to pair any additional auxiliary cameras. To reboot and unpair the auxiliary camera, refer to the Reset button section on page 6. © 2022 Azuga, Inc. All rights reserved.
