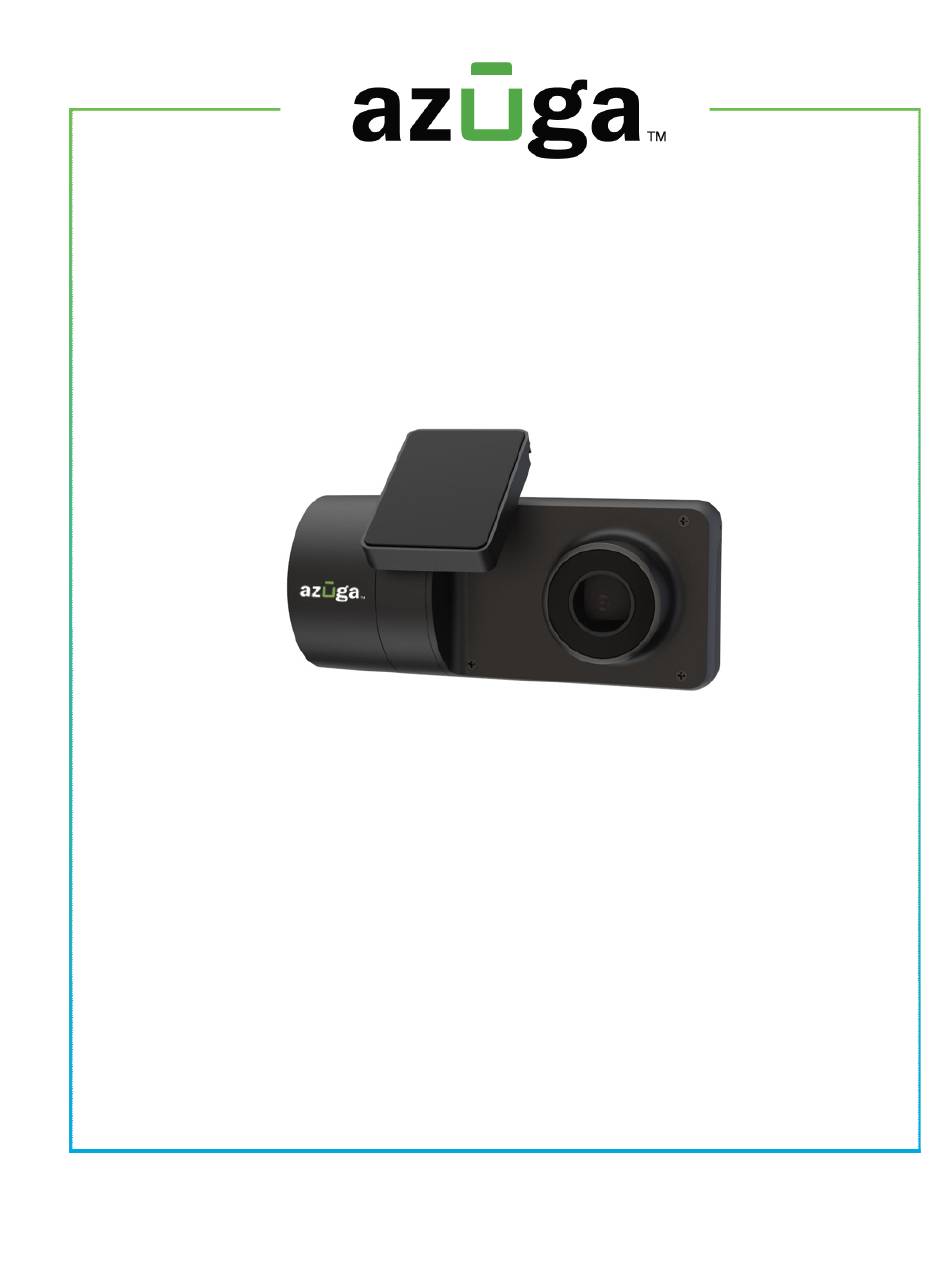

- Page 1 SafetyCam AI Installation Guide...
-
Page 2: Table Of Contents
1. Mounting the SafetyCam AI in vehicle…………………………………..Page 3 2. Powering the SafetyCam AI 2.1 Power using the OBD-II power cable……………………………….Page 4 2.2 Power by Hardwired connection……………………………………..Page 4 3. Adjusting the viewing angles of the camera…………………………….Page 5 4. Verify SafetyCam AI Integration on our App……………………………..Page 7... -
Page 3: Mounting The Safetycam Ai In Vehicle
Mounting the SafetyCam AI in vehicle Before you start the installation process, please make sure that the vehicle is parked on a level surface and the windshield is clean and dry. Use the screwdriver included in the box to remove the safety screws that lock the tamper-proof case. -
Page 4: Powering The Safetycam Ai
OBD port Plug the other end of the Y cable to the OBD-II device. Option 2: Power by Hardwired connection To avail the Azuga Safetycam AI camera’s complete set of features such as active standby, you would need to connect the camera to a constant 12V power source. This installation requires you to have a hardwired kit that is sent along with the camera. -
Page 5: Adjusting The Viewing Angles Of The Camera
Step 3: Connect the red wire to the Ignition line Generally, vehicle fuses may have power at all times (always hot), or only when the vehicle is running (hot at start). In order to have the camera turned on automatically when the vehicle is running and turn off when the driver turns off the vehicle, you need to connect the add-a-circuit kit to a hot start fuse. - Page 6 4. Use the screwdriver included in the box to loosen the three security screws on the round side of the camera. Do not remove the screws fully. 5. Adjust the viewing angle of the road-facing lens by rotating the body of the camera; then adjust the viewing angle of the in-cabin-facing lens by rotating the ring.
-
Page 7: Verify Safetycam Ai Integration On Our App
Please follow these steps to update the camera and vehicle association on the Azuga web application. Step 1: Log in to Azuga Fleet (apps.azuga.com) and Navigate to the Devices tab under Admin. Step 2: Next navigate to the SafetyCam tab under Devices. - Page 8 Step 3: Search for your SafetyCam AI that you would want to update with the serial number printed on the camera and click on the pencil icon to edit. Step 4: Click the drop down arrow and select the vehicle you want to associate the camera with.
