Dexin NDS3536S User Manual

Encoder modulator isdb-t (16 carriers)
Hide thumbs
Table of Contents

Advertisement

Quick Links

NDS3536S
Encoder Modulator ISDB-T（16 carriers） User Manual
DEXIN DIGITAL TECHNOLOGY CORP. LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDS3536S and is the answer not in the manual?

Questions and answers

Related Manuals for Dexin NDS3536S

Summary of Contents for Dexin NDS3536S

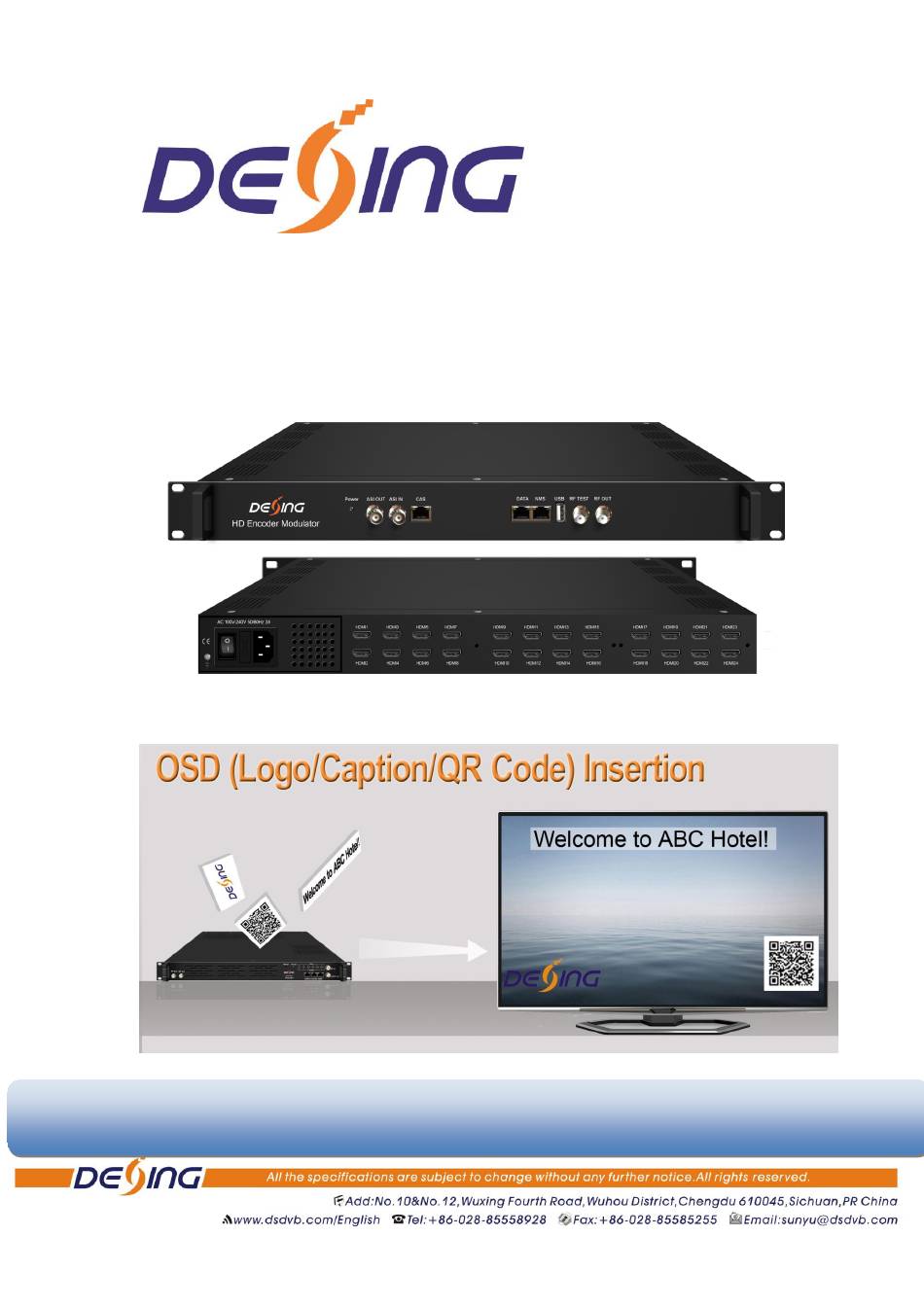

  • Page 1 NDS3536S Encoder Modulator ISDB-T（16 carriers） User Manual DEXIN DIGITAL TECHNOLOGY CORP. LTD.
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. DEXIN shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 3: Table Of Contents

    NDS3536S Encoder Modulator ISDB-T User Manual Directory CHAPTER 1 INTRODUCTION ............¡ERROR! MARCADOR NO DEFINIDO............................1 1.1 P RODUCT VERVIEW ............................... 1 1.2 K EATURES ............................. 2 1.3 S PECIFICATIONS ............................3 1.4 P RINCIPLE HART ........................3 1.5 A...

  • Page 5: Chapter 1 Introduction

     8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding  1 ASI input for re-mux  1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system FAT 32. ) ...

  • Page 6: Specifications

    NDS3536S Encoder Modulator ISDB-T User Manual 1.3 Specifications 8/16/24 HDMI inputs for option 1 ASI in for re-mux Input 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, Input 1280×720_60P, 1280×720_50P,...

  • Page 7: Principle Chart

    NDS3536S Encoder Modulator ISDB-T User Manual 1 ASI output as mirror of one of RF output carriers(Optional) 16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers Stream output 1*1000M Base-T Ethernet interface, GE port Network management (WEB)
  • Page 8 NDS3536S Encoder Modulator ISDB-T User Manual Power supply and Grounding Pole Power Indicator ASI out (Optional) ASI in HDMI inputs DATA: IP input and output port(GE) NMS (Network management port) USB Port(TS playing) RF test and RF out port Page 4 / 26...

  • Page 9: Chapter 2 Installation Guide

    NDS3536S Encoder Modulator ISDB-T User Manual Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed. For this reason, please read all details here and make in mind before installing or using the product.

  • Page 10: Grounding Requirement

    NDS3536S Encoder Modulator ISDB-T User Manual 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity ground anti-static material: ，Grounding current limiting resistance: 1M Machine Hall Floor 1X10 ~1X10 (Floor bearing should be greater than 450Kg/㎡) 5~40℃(sustainable )，0~45℃(short time)，...

  • Page 11: Chapter 3 Web Nms Operation

    NDS3536S Encoder Modulator ISDB-T User Manual  The area of the conduction between grounding wire and device’s frame should be no less than 25 mm Chapter 3 WEB NMS Operation Users can only control and set the configuration in computer by connecting the device to web NMS Port.

  • Page 12: Operation

    NDS3536S Encoder Modulator ISDB-T User Manual 3.2 Operation Summary → Status When we login into encoder modulator, it displays the status interface as Figure-2. Current software version information User can click any item here to enter the corresponding interface to check Figure-2 information or set the parameters.
  • Page 13 NDS3536S Encoder Modulator ISDB-T User Manual General settings for the Encoding program: User can edit any item listed as needed. Users can check the input lock status, bit rate Status, Figure-3 encoder version and resolution etc information. Encoder(01-08) → OSD: Clicking “OSD”, it displays the interface as Figure-4/5/6 where to set Logo/ Caption/...
  • Page 14 NDS3536S Encoder Modulator ISDB-T User Manual Select the text color and background color Enter your text here Put your caption anywhere Set when to show caption. So do Logo and QRCode. Figure-5 Put the QRcode everywhere Input the QRcode URL here...
  • Page 15 NDS3536S Encoder Modulator ISDB-T User Manual Figure-7 Encoder (09-16) → OSD OSD setting is same as the one in the encoder(01-08). Figure-8 Encoder (09-16) → System Under System page, users can check the software version information of the encoder module, save, restore or load factory set the module configuration.
  • Page 16 NDS3536S Encoder Modulator ISDB-T User Manual Figure-9 Encoder (09-16) → Firmware Under the Firmware page, users can update the software for the encoder module. Figure-10 Parameters → Encoder(17-24) Encoder (17-24) shares the same configuration steps with encoder(01-08). Page 12 / 26...
  • Page 17 NDS3536S Encoder Modulator ISDB-T User Manual Figure-11 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the TS output parameters.  TS Config→Output TS X: Clicking “Output TS X”, it displays the interface where users can select the TS output...
  • Page 18 NDS3536S Encoder Modulator ISDB-T User Manual Clicking output TS 1-16 to set each output channel’s programs, general parameters and PID. Figure-12  TS Config→Stream select: Clicking “Stream select”, it displays the interface where users can select program(s) to multiplex out and modify program info. (Figure-13)
  • Page 19 NDS3536S Encoder Modulator ISDB-T User Manual Add the IP input streams Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To check source streams locked or not, green means current source streams locked...
  • Page 20 NDS3536S Encoder Modulator ISDB-T User Manual Figure-14  TS Config→General: From the TS Config menu on up side of the webpage, clicking “General”, it displays the interface where users can enable PSI/SI table out and insert NIT. (Figure-15) Figure-15 Page 16 / 26...
  • Page 21 Users can bypass the wanted PIDs here. Figure-16 Parameters → Modulator: Clicking “Modulator”, it displays the Modulator Configuration screen as Figure-17. NDS3536S supports 16 ISDB-T frequencies out. Here user can set modulation parameters, such as level and frequency etc. Quickly Config Channel Config Dexin Digital Technology Corp.
  • Page 22 NDS3536S Encoder Modulator ISDB-T User Manual Figure-17 Parameters → IP Stream: NDS3536S supports 16 TS to output in IP format through the DATA port under ISDB-T modulation. Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-18).
  • Page 23 NDS3536S Encoder Modulator ISDB-T User Manual When users click “pen” button, it triggers a dialog box (Figure-19) where users can set the corresponding channel configuration. Figure-19 When users click “ASI Out” list, users can set one TS out from MPTS 1 to MPTS 16 as the ASI out (ASI out is optional as per the order).
  • Page 24 NDS3536S Encoder Modulator ISDB-T User Manual Parameters → USB Media: Under USB Media page, user can play the TS files from the USB disk. Play Mode is select-able as the below list shows. After playing the files, the programs in the .ts files can be multiplexed out in TS Config page.
  • Page 25 NDS3536S Encoder Modulator ISDB-T User Manual System → Network: Clicking “Network”, it displays the interface as Figure-22 where to set network parameters. Dexin Digital Technology Corp. Ltd Page 21 / 26...
  • Page 26 NDS3536S Encoder Modulator ISDB-T User Manual Figure-22 System → Password: Clicking “Password”, it displays the screen as Figure-23 where to set the login account and password for the web NMS. Both the current username and password are “admin”. Figure-23 System → Configuration: Clicking “Configuration”, it displays the screen as Figure-24 where to save/...
  • Page 27 NDS3536S Encoder Modulator ISDB-T User Manual Dexin Digital Technology Corp. Ltd Page 23 / 26...
  • Page 28 NDS3536S Encoder Modulator ISDB-T User Manual Figure-24 System → Firmware: Clicking “Firmware”, it displays the screen as Figure-25 where to update firmware for the modulator. Figure-25 Page 24 / 26 Dexin Digital Technology Corp. Ltd.
  • Page 29 NDS3536S Encoder Modulator ISDB-T User Manual System→ Date/Time: From the menu on left side of the webpage, clicking “Date/Time”, it will display the screen as Figure-26 where to set date and time for the device. Figure-26 System→ Log: Clicking “Log”, it displays the log interface as Figure-27 where to check or export the Kernel/System log.

  • Page 30: Chapter 4 Troubleshooting

    NDS3536S Encoder Modulator ISDB-T User Manual Chapter 4 Troubleshooting DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.

  • Page 31: Chapter 5 Packing List

    NDS3536S Encoder Modulator ISDB-T User Manual Chapter 5 Packing List NDS3536S Encoder Modulator HDMI Cables 8/16/24pcs Power Cord Dexin Digital Technology Corp. Ltd Page 27 / 26...
