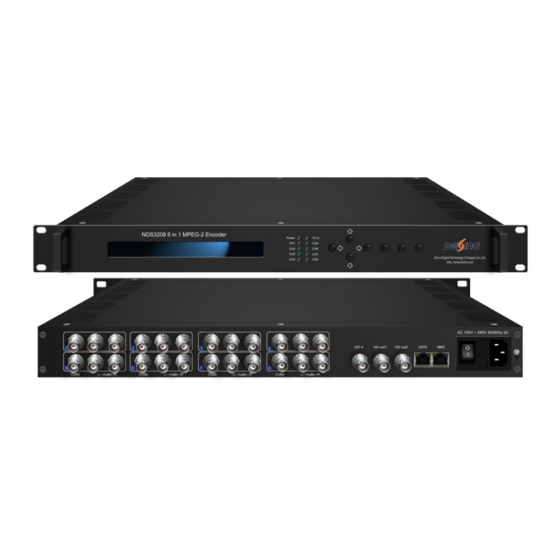

NDS3208 8 in 1 MPEG-2 Encoder
User's Manual
NMS Version: 1.12.5
SW: 2.07
HW: 1.3
CHENGDU DEXIN DIGITAL TECHNOLOGY CO., LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDS3208 and is the answer not in the manual?

Questions and answers

Related Manuals for Dexin NDS3208

Summary of Contents for Dexin NDS3208

  • Page 1 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual NMS Version: 1.12.5 SW: 2.07 HW: 1.3 CHENGDU DEXIN DIGITAL TECHNOLOGY CO., LTD...

  • Page 2: Table Of Contents

    DIRECTORY Chapter 1 Product Introduction ......................1 1.1 Outline ..............................1 1.2 Main Features ........................... 1 1.3 Principle Chart ........................... 1 1.4 Specifications ............................ 2 1.5 Appearance and Illustration ......................3 Chapter 2 Installation Guide ........................5 2.1 Acquisition Check ..........................5 2.2 Installation Preparation ........................

  • Page 3: Chapter 1 Product Introduction

    Chapter 1 Product Introduction 1.1 Outline The NDS3208 8 in 1 MPEG-2 Encoder is a professional SD audio & video encoding and multiplexing device. It has 8 channel CVBS video input interfaces, 8 pairs of unbalanced audio input interfaces, supporting MPEG-2 video encoding and MPEG 1 Layer 2 audio encoding.

  • Page 4: Specifications

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual 1.4 Specifications 8× CVBS inputs,BNC interface Input 8 pairs of unbalanced audio inputs, BNC interface 1× ASI input, BNC interface PAL: 720× 576_50i NTSC: 720× 480_60i Resolution Encoding MPEG-2 Video Bit-rate 1Mbps~19.5Mbps...

  • Page 5: Appearance And Illustration

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual 1.5 Appearance and Illustration Front Panel Illustration: Indicate area: All indicators will light on when the device is on the current working state. LCD screen Power indicator TS in: input lock indicator...
  • Page 6 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual CVBS input serial number from 1 to 8 Video input port Audio input port (Left & Right channels) ASI input port 2 * ASI output ports Data port (for IP signal output)

  • Page 7: Chapter 2 Installation Guide

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ...
  • Page 8 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to NDS3208 8 in 1 MPEG-2 Encoder, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.
  • Page 10 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual 2.4.2 ASI output cable illustration: 2.4.3 Network Cable illustration (CAT5): 2.4.4 Unbalanced audio and CVBS video input connection User can firstly find the CVBS input connector on the device according to the connector mark described on the rear panel illustration, and then connect the analog CVBS video and unbalanced audio cables (in the accessories).
  • Page 11 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual User can firstly find the ASI output interface on the device according to the connector mark described on the rear panel illustration, and then connect the ASI cable (in the accessories). One end is connected to the encoder‟s ASI out connector (ASI1, ASI2) while the other end to the TS...

  • Page 12: Chapter 3 Operation

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Chapter 3 Operation NDS3208 8 in 1 MPEG-2 Encoder‟s front panel is user operating interface. Before operating, user can decide whether directly use the default setting or customize the input and output parameters setting.
  • Page 13 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual parameters in the following editing interfaces, the LCD will display the following pages: ►1 System Param 2 MPTS Output Setting ►3 Mux Setting 4 Network Setting ►5 Config Setting 6 Version ►7 Language [1] English/[2] 中文...
  • Page 14 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual ►3 Encoder Param 4 Output IP 3.2.1.1 Encoder Enable This is for user to choose to output the program or not. Encoder Enable ON/OFF 3.2.1.2 Video Param User can adjust the relevant parameters of input video in submenus of Brightness, Contrast, Saturation and Hue.
  • Page 15 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual 3.1 Video Bitrate (1000-19500Kbps) 4.500Kbps 3.2 Audio Bitrate 64~320Kbps optional ► 64Kbps 3.3 Pro info 3.2.1.4 Output IP User can set the SPTS output IP parameters under this menu. The device will display the following page after users pressing the enter key.
  • Page 16 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Users can copy a stream from the IP 2.7 ASI output [1] MPTS streams 2.8 TSID and ONID MPTS & 8 SPTS) to output through ASI. 3.2.3 MUX Setting Under this menu, user can choose programs to mux out.

  • Page 17: Network Setting

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual 3.2.4 Network Setting Users can set the network parameters by pressing the enter key, and the LCD will display the following interfaces. 4.1 NMS Interface Set the Data interface 4.2 Data Interface parameters here.

  • Page 18: Save Configuration

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual 3.2.5 Save Configuration Users can save the modification by pressing the enter key, and it will display the following interface when user press the enter key. 5.1 Save Configuration 5.2 Restore configure 5.3 Factory Set...

  • Page 19: Chapter 4 Nms Operation

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Chapter 4 NMS Operation Network Management System Profile Network management system is applied to digital TV equipment operation, control and management and parameters setting, etc. It centralizes digital TV equipment through network.

  • Page 20: Operation

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual appear. 4.2 Operation System→Encoder From the menu on top side of the webpage, clicking “Encoder”, it displays the information of the programs from the X encoding board as Figure-2. User can click any item...
  • Page 21 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Click “MUX”, it displays the interface where users can configure the Mux out MPTS. (Figure-3) Select the needed language ： English and 中 文 （ Chinese ） optional Click this button restart device.
  • Page 22 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Figure-4 Input new data and click „Apply‟ button at last to confirm the modification. PID Pass: Clicking , it displays the interface where to add the PIDs which need pass through. (Figure-5) In some occasions, there are some PIDs which won‟t belong to any program, such as EPG, NIT...
  • Page 23 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual SPTS Settings: Under this menu, user can configure the 8 output SPTS parameters separately. (Figure-6) Figure-5 : To modify the output SPTS parameters as needed. By clicking this button to pop up a...
  • Page 24 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual OFF: To not output corresponding SPTS. Input new data and click „Apply‟ button at last to confirm the modification. MPTS Settings: Under this menu, user can configure the output MPTS Parameters. (Figure-6)

  • Page 25: Asi Output

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Figure-7 ASI Output: Clicking “ASI Output” from the menu, it will display the interface as Figure-6 where to choose TS to output from ASI. Users can copy a stream from the IP out streams (1 MPTS & 8 SPTS) to output through ASI.
  • Page 26 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Figure-9 System→Network When user clicks “Network”, it will display the screen as Figure-10. It displays the network information of the device. Here user can change the device network configuration as needed. Figure-10...
  • Page 27 NDS3208 8 in 1 MPEG-2 Encoder User’s Manual System→Password When user clicks “Password”, it will display the password screen as Figure-11. Here user can change the Username and Password for login to the device. After putting the current and new Username and Password, click Apply” to save the configuration.

  • Page 28: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting DEXIN‟s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products‟ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.

  • Page 29: Chapter 6 Packing List

    NDS3208 8 in 1 MPEG-2 Encoder User’s Manual Chapter 6 Packing list  NDS3208 8 in 1 MPEG-2 Encoder 1pcs  User‟s manual 1pcs  Analog Audio/Video Composite Input Cable 8 pcs  ASI cable 1pcs  Power cord 1pcs...
