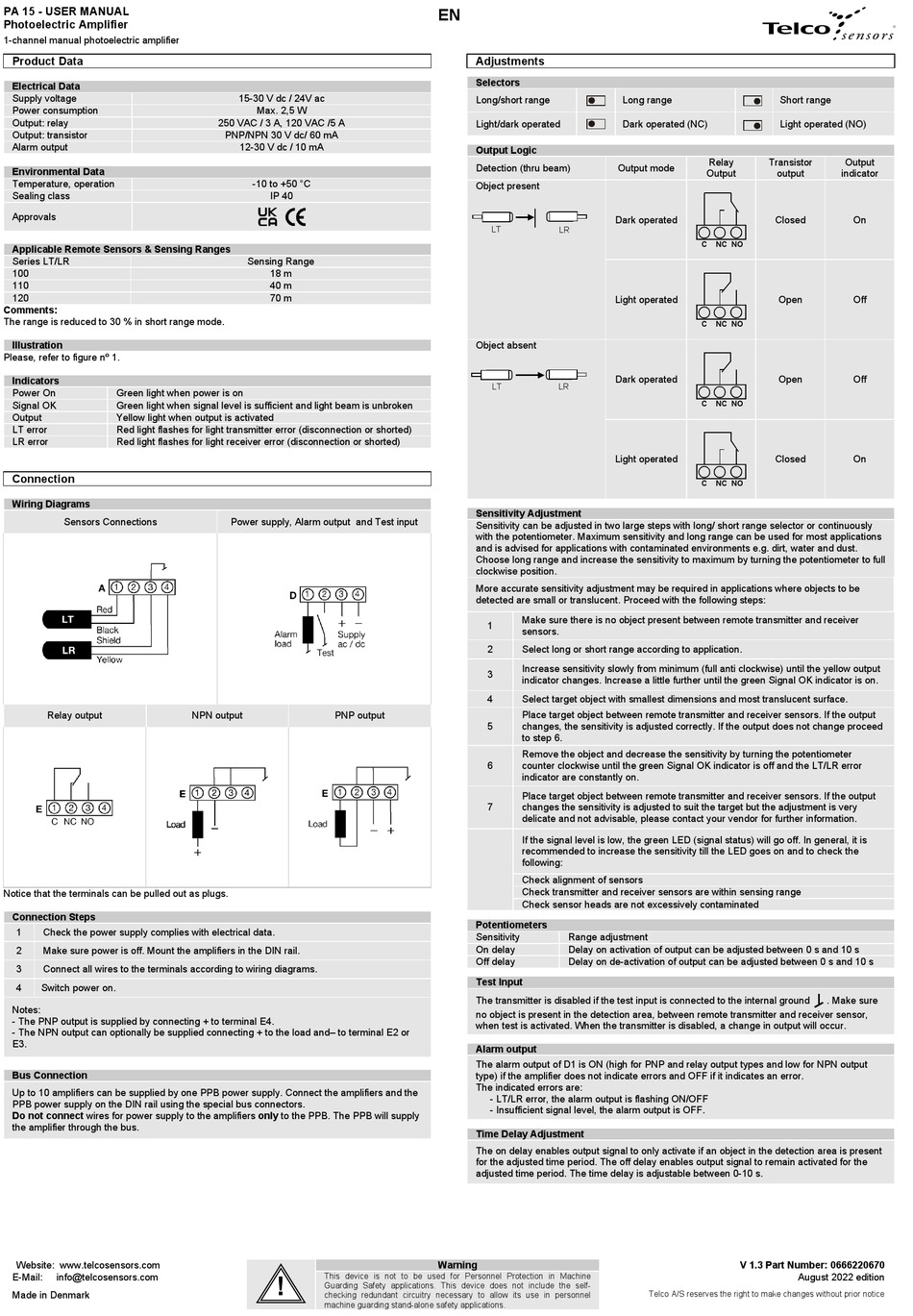

PA 15 - USER MANUAL

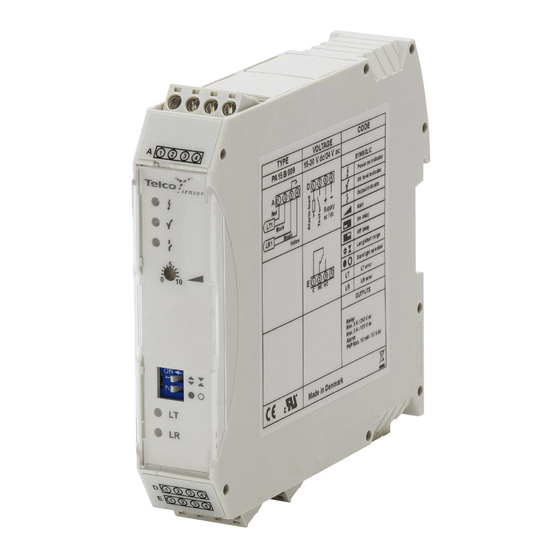

Photoelectric Amplifier
1-channel manual photoelectric amplifier
Product Data
Electrical Data
Supply voltage
Power consumption
Output: relay
Output: transistor
Alarm output
Environmental Data
Temperature, operation
Sealing class
Approvals
Applicable Remote Sensors & Sensing Ranges
Series LT/LR
100
110
120
Comments:
The range is reduced to 30 % in short range mode.
Illustration
Please, refer to figure nº 1.
Indicators
Power On Green light when power is on
Signal OK Green light when signal level is sufficient and light beam is unbroken
Output Yellow light when output is activated
LT error Red light flashes for light transmitter error (disconnection or shorted)
LR error Red light flashes for light receiver error (disconnection or shorted)
Connection
Wiring Diagrams
Sensors Connections
Relay output
Notice that the terminals can be pulled out as plugs.
Connection Steps
1 Check the power supply complies with electrical data.
2 Make sure power is off. Mount the amplifiers in the DIN rail.
3 Connect all wires to the terminals according to wiring diagrams.
4 Switch power on.
Notes:
- The PNP output is supplied by connecting + to terminal E4.
- The NPN output can optionally be supplied connecting + to the load and– to terminal E2 or
E3.
Bus Connection
Up to 10 amplifiers can be supplied by one PPB power supply. Connect the amplifiers and the
PPB power supply on the DIN rail using the special bus connectors.
Do not connect wires for power supply to the amplifiers only to the PPB. The PPB will supply
the amplifier through the bus.
Website: www.telcosensors.com
E-Mail: info@telcosensors.com
Made in Denmark
15-30 V dc / 24V ac
Max. 2,5 W
250 VAC / 3 A, 120 VAC /5 A
PNP/NPN 30 V dc/ 60 mA
12-30 V dc / 10 mA
-10 to +50 °C
IP 40
Sensing Range
18 m
40 m
70 m
Power supply, Alarm output and Test input
NPN output PNP output
!
This device is not to be used for Personnel Protection in Machine
Guarding Safety applications. This device does not include the self-
checking redundant circuitry necessary to allow its use in personnel
machine guarding stand-alone safety applications.
EN
Adjustments
Selectors
Long/short range
Light/dark operated
Output Logic
Detection (thru beam)
Object present
LT LR
Object absent
LT LR
Sensitivity Adjustment
Sensitivity can be adjusted in two large steps with long/ short range selector or continuously
with the potentiometer. Maximum sensitivity and long range can be used for most applications
and is advised for applications with contaminated environments e.g. dirt, water and dust.
Choose long range and increase the sensitivity to maximum by turning the potentiometer to full
clockwise position.
More accurate sensitivity adjustment may be required in applications where objects to be
detected are small or translucent. Proceed with the following steps:
Make sure there is no object present between remote transmitter and receiver
1
sensors.
2 Select long or short range according to application.
Increase sensitivity slowly from minimum (full anti clockwise) until the yellow output
3
indicator changes. Increase a little further until the green Signal OK indicator is on.
4 Select target object with smallest dimensions and most translucent surface.
Place target object between remote transmitter and receiver sensors. If the output
5 changes, the sensitivity is adjusted correctly. If the output does not change proceed
to step 6.
Remove the object and decrease the sensitivity by turning the potentiometer
6 counter clockwise until the green Signal OK indicator is off and the LT/LR error
indicator are constantly on.
Place target object between remote transmitter and receiver sensors. If the output
7 changes the sensitivity is adjusted to suit the target but the adjustment is very
delicate and not advisable, please contact your vendor for further information.
If the signal level is low, the green LED (signal status) will go off. In general, it is
recommended to increase the sensitivity till the LED goes on and to check the
following:
Check alignment of sensors
Check transmitter and receiver sensors are within sensing range
Check sensor heads are not excessively contaminated
Potentiometers
Sensitivity Range adjustment
On delay Delay on activation of output can be adjusted between 0 s and 10 s
Off delay Delay on de-activation of output can be adjusted between 0 s and 10 s
Test Input
The transmitter is disabled if the test input is connected to the internal ground
no object is present in the detection area, between remote transmitter and receiver sensor,
when test is activated. When the transmitter is disabled, a change in output will occur.
Alarm output
The alarm output of D1 is ON (high for PNP and relay output types and low for NPN output
type) if the amplifier does not indicate errors and OFF if it indicates an error.
The indicated errors are:
- LT/LR error, the alarm output is flashing ON/OFF
- Insufficient signal level, the alarm output is OFF.
Time Delay Adjustment
The on delay enables output signal to only activate if an object in the detection area is present
for the adjusted time period. The off delay enables output signal to remain activated for the
adjusted time period. The time delay is adjustable between 0-10 s.
Warning
tel
Long range Short range
Dark operated (NC) Light operated (NO)
Relay Transistor
Output mode
Output output
Dark operated Closed
C NC NO
Light operated Open
C NC NO
Dark operated Open
C NC NO
Light operated Closed
C NC NO
V 1.3 Part Number: 0666220670
Telco A/S reserves the right to make changes without prior notice
Output
indicator
On
