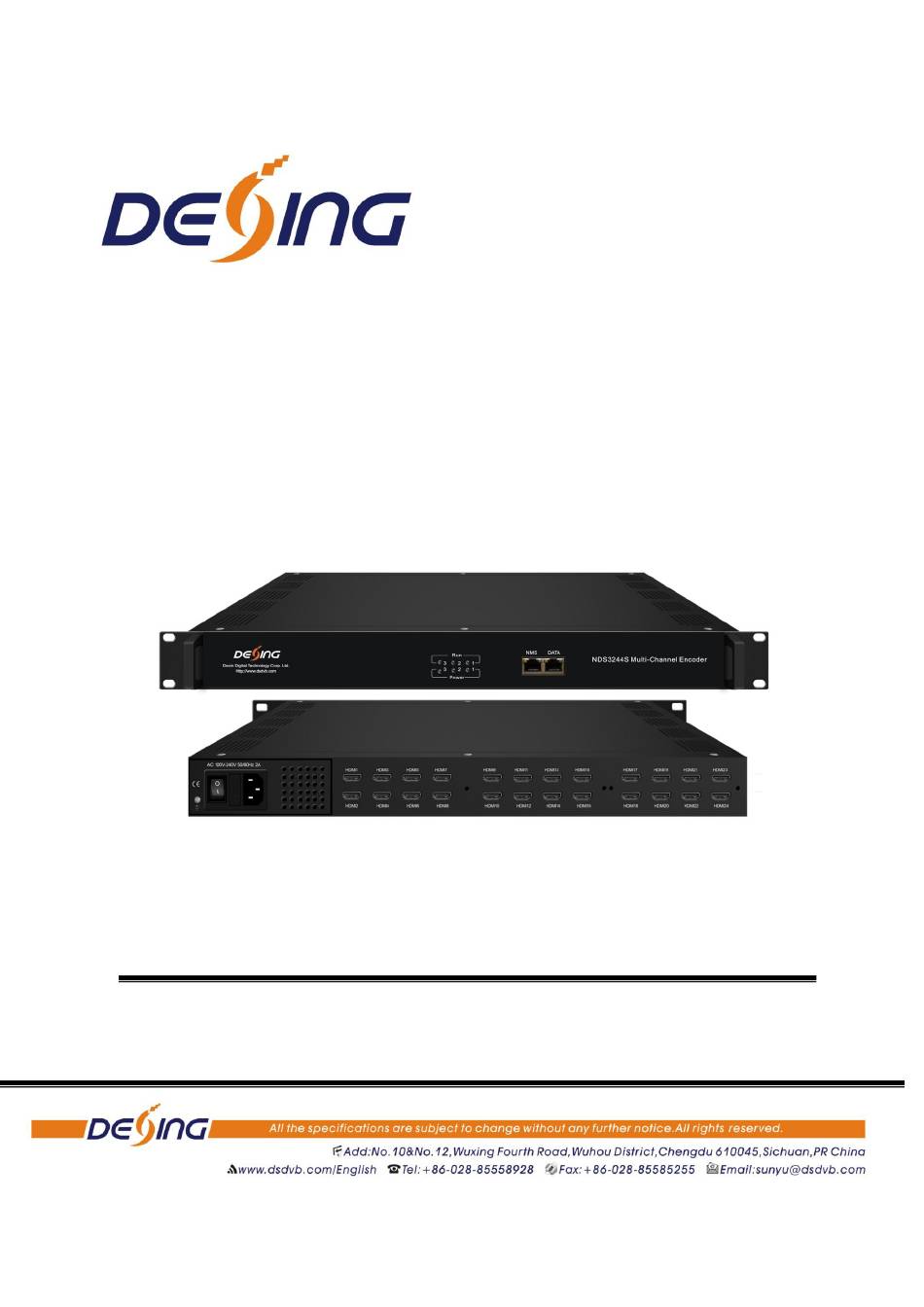

- Page 1 NDS3244S Multi-Channel Encoder User Manual Dexin Digital Technology Corp. Ltd.
-
Page 2: Table Of Contents
DIRECTORY Chapter 1 Product Introduction .................... 1 1.1 Outline..........................1 1.2 Main Features ......................... 1 1.3 Principle Chart (Each Encoder Module) ................. 1 1.4 Specifications ........................2 1.5 Order Information ......................3 1.6 Appearance and Illustration .................... 3 Chapter 2 Installation Guide ....................5 2.1 Acquisition Check ...................... -
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Outline NDS3244S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 24 HDMI inputs with very 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc. -
Page 4: Specifications
NDS3244S Multi-Channel Encoder User Manual HDMI #1 MPEG4 AVC/H.264 Encoding HDMI #2 MPEG4 AVC/H.264 Encoding HDMI #3 MPEG4 AVC/H.264 Encoding HDMI #4 1 MPTS and 8 SPTS MPEG4 AVC/H.264 Encoding HDMI #5 MPEG4 AVC/H.264 Encoding HDMI #6 MPEG4 AVC/H.264 Encoding HDMI #7 MPEG4 AVC/H.264 Encoding... -
Page 5: Order Information
NDS3244S Multi-Channel Encoder User Manual 1.5 Order Information Config NDS3244S 24 HDMI inputs 1.6 Appearance and Illustration Front Panel Illustration: 1U chassis (three encoder modules) illustration： Run and Power indicators for 3 modules NMS (Network Management Port) Data Port (for IP Signal Output) - Page 6 NDS3244S Multi-Channel Encoder User Manual Grounding Pole Power Switch and socket Module 1: HDMI 1-8 Module 2: HDMI 9-16 Module 3: HDMI 17-24...
-
Page 7: Chapter 2 Installation Guide
NDS3244S Multi-Channel Encoder User Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: NDS3244S Multi-Channel Encoder ... - Page 8 NDS3244S Multi-Channel Encoder User Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.
-
Page 9: Wire's Connection
When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to NDS3244S Multi-Channel Encoder, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable. - Page 10 NDS3244S Multi-Channel Encoder User Manual 2.4.1 HDMI input cable illustration: 2.4.2 Network Cable illustration (CAT5):...
-
Page 11: Chapter 3 Web Nms Operation
NDS3244S Multi-Channel Encoder User Manual Chapter 3 WEB NMS Operation NDS3244S does not support front buttons and LCD, users can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the NDS3244S IP address;... - Page 12 NDS3244S Multi-Channel Encoder User Manual System information User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Parameters →Encoder Encode Channel 1-8: From the menu on upper side of the webpage, clicking “Enc CH 1-8”, it will display the each encode channel information of the program from the HDMI input port as Figure-3.
- Page 13 NDS3244S Multi-Channel Encoder User Manual Parameters →IP Stream NDS3244S supports TS to output in IP (1MPTS and 8 SPTS for each encoder module) format through the DATA port. When users click “IP Stream”, it will display the interface as Figure-4 where to set IP out parameters.
- Page 14 NDS3244S Multi-Channel Encoder User Manual Select to configure logo, caption or QRcode Select program1-8 to apply the logo insertion, or you can select “all” to apply all programs Click here to confirm the LOGO you selected Browse and select the Logo which has...
- Page 15 NDS3244S Multi-Channel Encoder User Manual Put the QRcode everywhere Input the QRcode URL here Browse and select the QRcode which has been created Figure-7 System→ Network: Clicking “Network”, it will display the interface as Figure-8 where to set NMS and DATA parameters.
- Page 16 NDS3244S Multi-Channel Encoder User Manual Figure-9 System → Configuration: Clicking “Configuration”, it will display the screen as Figure-10 where to save/ restore/factory set/ backup/ load your configurations. Figure-10 System → Firmware: Clicking “Firmware”, it will display the screen as Figure-11 where to update firmware for the...
- Page 17 NDS3244S Multi-Channel Encoder User Manual Figure-11 System → Date/Time: Clicking “Date/Time”, it will display the screen as Figure-12 where to set date and time for the device. Figure-12 System → Log: Clicking “Log”, it will display the log interface as Figure-13 where to check or export the...
- Page 18 NDS3244S Multi-Channel Encoder User Manual Figure-13...
-
Page 19: Chapter 4 Troubleshooting
NDS3244S Multi-Channel Encoder User Manual Chapter 4 Troubleshooting DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN. -
Page 20: Chapter 5 Packing List
NDS3244S Multi-Channel Encoder User Manual Chapter 5 Packing list NDS3244S Multi-Channel Encoder HDMI cables 24 pcs Power cord...
