Dexing NDS3228A User Manual

8 in 1 mpeg2/h.264 sd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

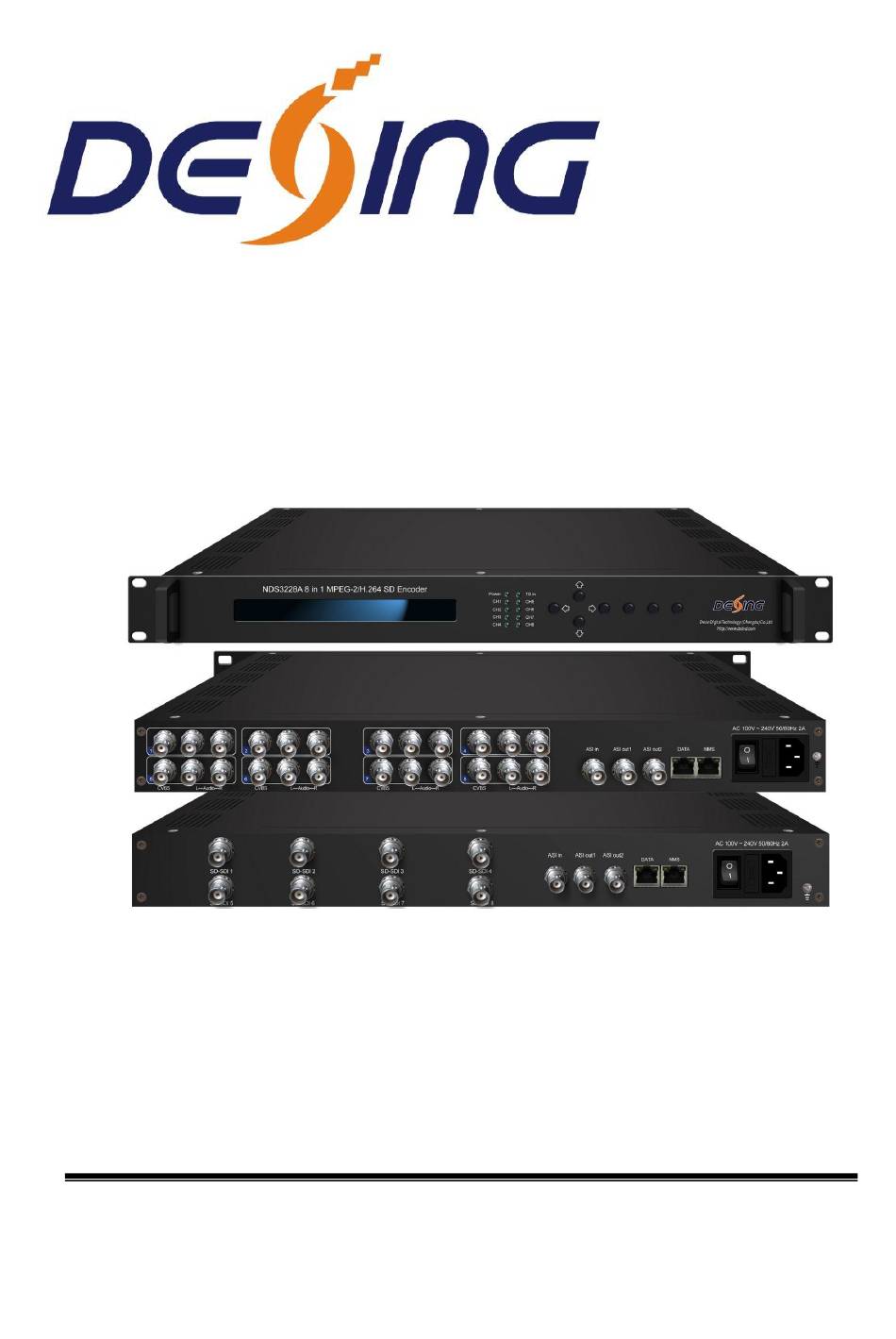

NDS3228A 8 in 1 MPEG2/H.264 SD Encoder
User's Manual
SW Version: 2.14
HW version: 0.3
Chengdu Dexin Digital Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDS3228A and is the answer not in the manual?

Questions and answers

Related Manuals for Dexing NDS3228A

Summary of Contents for Dexing NDS3228A

  • Page 1 NDS3228A 8 in 1 MPEG2/H.264 SD Encoder User’s Manual SW Version: 2.14 HW version: 0.3 Chengdu Dexin Digital Technology Co., Ltd.

  • Page 2: Table Of Contents

    Chapter 4 NMS Operation (Optional) ..................... 24 4.1 Installation ............................24 4.2 Software Operation ..........................24 4.3 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder Operation ............... 30 4.4 Other Settings ............................ 42 Chapter 5 WEB NMS Operation (Optional) .................... 46 5.1 login ..............................

  • Page 3: Chapter 1 Product Introduction

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Chapter 1 Product Introduction 1.1 Outline The DEXIN NDS3228A series 8-in-1 MPEG-2/H.264 SD Encoders are our professional SD audio & video encoding and multiplexing device with powerful functionality. It has 8 independent channels of unbalanced audio &...

  • Page 4: Principle Chart

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 1 ASI input, BNC interface PAL:720*576/352*288/320*240/320*180/176*144/ 160*120/160*90@50Hz Resolution NTSC: 720*480/352*288/320*240/320*180/176*144/ 160*120/160*90@59.94Hz Encoding MPEG-2 / H.264 Video 0.25~15Mbps for H.264 encoding Bit-rate 0.5~15Mbps for MPEG-2 encoding Rate Control CBR/VBR Advanced De-interlacing, Noise Reduction, Sharpening...

  • Page 5: Appearance And Illustration

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 1.5 Appearance and Illustration Front Panel Illustration: Indicate area: All indicators will light on when the device is on the current working state. LCD Screen Power Indicator TS In: Input Lock Indicator...
  • Page 6 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 8 * CVBS Input Ports CVBS Input Serial Number from 1 to 8 Video Input Port Audio Input Port (Left & Right Channels) ASI Input Port 2 * ASI Output Ports...

  • Page 7: Chapter 2 Installation Guide

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ...
  • Page 8 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.
  • Page 10 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 2.4.2 ASI output cable illustration: 2.4.3 Network Cable illustration (CAT5): 2.4.4 Unbalanced audio and CVBS video input connection User can firstly find the CVBS input connector on the device according to the connector mark described on the rear panel illustration, and then connect the analog CVBS video and unbalanced audio cables (in the accessories).
  • Page 11 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 2.4.5 SDI video input connection User can find the SDI input connector on the device according to the connector mark described on the rear panel illustration, and then connect the analog SDI video. One end is connected to the signal source equipment while the other end to the encoder’s SDI input port.
  • Page 12 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 2.4.8 NMS Connection Users can firstly find the NMS interface on the device according to the connector mark described on the rear panel illustration, and then connect the network (CAT5). One end of the network cable is connected to the encoder’s NMS connecter, while the other end to the...

  • Page 13: Chapter 3 Operation

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Chapter 3 Operation NDS3228A 8 in 1 MPEG-2/H.264 SD Encoder’s front panel is user operating interface. Before operating, user can decide whether directly use the default setting or customize the input and output parameters setting.
  • Page 14 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual parameters in the following editing interfaces, the LCD will display the following pages: ►1 Input Setting 2 ASI Setting 3 Output Setting 4 Network Setting ►5 Saving Config 6 Loading Config...
  • Page 15 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual ►1.1.1.1 Input 1.1.1.2 Brightness 1.1.1.3 Contrast 1.1.1.4 Saturation ►1.1.1.5 Hue 1.1.1.6 Aspect Rati 1.1.1.7 Coding Type 1.1.1.8 Resolution ►1.1.1.9 Bitrate Mode 1.1.1.A Bit Rate 1.1.1.B Max Bit Rate 1.1.1.C Min Bit Rate ►1.1.1.D GOP Struct...
  • Page 16 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Saturation and Hue when the input interface is CVBS. The adjustable range is 0~255, while the adjustable range of Hue is -128～127. The figure outside the parentheses is decimal while the inside is hexadecimal.
  • Page 17 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Under this interface, users can set the video resolution (Refer to 1.3 Specifications in Chapter 1 for details). Pressing 1.1.1.8, the operation interface will turn up as following page: 1.1.1.8 Resolution...
  • Page 18 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 1.1.2.1 Bit Rate 1.1.2.2 Sample 1.1.2.3 Format 1.1.2.4 Gain  Audio Bit Rate Setting User can set the input audio bit-rate by pressing the enter key to enter the main editing interface.
  • Page 19 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 1.1.2.4 Gain +00 dB 3.2.1.3 System Settings ►1.1.3.1 Prog Number 1.1.3.2 Video PID 1.1.3.3 Audio PID 1.1.3.4 PMT PID ►1.1.3.5 PCR PID 1.1.3.6 IP Enable 1.1.3.7 Out Address 1.1.3.8 Out Port ►1.1.3.9 Null PKT...
  • Page 20 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 1.1.3.4 PMT PID 0*0103 1.1.3.5 PCR PID 0*0101  IP Enable 1.1.3.6 IP Enable [NO]  Out Address/Out Port Setting User can modify the out address and out port in below interfaces.
  • Page 21 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 3.2.1.4 Program Mux Setting Users can decide whether to open the multiplexing function of the device.  Channel Mux Under this interface, users can decide whether to multiplexer the channel encoding stream. YES means that the device multiplexes the encoding stream into the MPTS, while NO means that the output program is SPTS.
  • Page 22 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 3.2.3.1 IP Out Enable This is the new function of this encoder, user can decide whether to open the IP output function by press the ENTER key in this menu, and the operating interface will show the following page: ►...
  • Page 23 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 3.5 Output Stream 040.000 Mbps 3.2.3.6 Output Mode Users can set the output mode in this interface after pressing the ENTER key to enter the main editing page. 3.6 Output Mode...
  • Page 24 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 4.1 IP Address 192.168.002.136 4. 2 Subnet Mask 255.255.255.000 4.3 Gateway 192.168.002.001 4.4 Console Address 192.168.002.211 The MAC address is read-only in the keyboard operation interface, so users can just check the physical address under this interface, and the modification must be done in the network updating tools.
  • Page 25 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual ►6.1 Load Saved 6.2 Load Default 3.2.7 Version Users can check the device software version and hardware version, and the LCD will display the following interface when users press the ENTER key.

  • Page 26: Chapter 4 Nms Operation (Optional)

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Chapter 4 NMS Operation (Optional) Network Management System Profile Network management system is applied to digital TV equipment operation, control and management and parameters setting, etc. It centralizes digital TV equipment through network.
  • Page 27 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual User can login the NMS by pressing OK key after inputting user name. Upon the inputs, the software will verify them with database record automatically and the main interface will appear.
  • Page 28 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual The Add Freq Point dialog box popes up when the user clicks the Add Freq Point item in the Edit pull down menu on the menu row. The device will confirm the given frequency while user clicks OK.
  • Page 29 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 4.2.4 Adding Equipment under Given Frequency Point User should choose the frequency point in advance, and then the dialog box of Add Equipment will pop up when user clicks ―Add Equipment‖ item in the Edit pull down menu on the menu row.
  • Page 30 ―▼‖ Or Click ―?‖ to auto search the type of device. NOTE: The default IP of NDS3228A Encoder is 192.168.2.136, also you can check its IP address in the front panel of device in case the IP changed unexpected.
  • Page 31 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual User can choose the equipment to be deleted in the left column, and then click the ―delete‖ item in the pull down menu which appears by clicking the right mouse key.

  • Page 32: Nds3228A 8 In 1 Mpeg-2 H.264 Sd Encoder Operation

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 4.3 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder Operation User can choose the encoder in the device tree; the procedure will display the encoder interface in operating area. The interface is mainly composed of encoding video parameters, audio parameters and the encoding system parameters, output parameters and etc.
  • Page 33 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Users check version information in this area. Set: to make the current parameters, which shows in the NMS software, activate. Get: to read the current device’s activating parameters and show them on NMS software.
  • Page 34 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual device mode as 1IP) 8IP: This mode refers to the 8 SPTS and outputs every single program with separate IP address. Users need to enable the IP Output in every channel interface (refer to 4.3.1.3 System Parameters).
  • Page 35 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual In this field, users can decide whether to effect the SDT insertion function.  MPTS Filter Null Packet If this function is effected, then the null packets in IP output stream will be filtered.
  • Page 36 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 2. If any parameter is modified, it is supposed to click Set to make the modified to read and effect the current device’s parameters activate and click Get activating parameters.
  • Page 37 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Users can PIDs Program number in these areas.  IP Output Enable Check the checkbox with ―√‖, then the IP output is enabled, otherwise it is not. Users can decide whether to open the IP output function or not.Users can modify the IP address here as well.
  • Page 38 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 4.3.1.4 Advanced Parameters Similarly, users can set the MCTF (Motion Compensation Temporal Filtering) Length, Pre Deblocking Length and ACBAC function in this interface. 4.3.2 Multiplexing CH01-CH08: CVBS/SDI Encoding Channels CH09: The 1 ASI Input Channel...
  • Page 39 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual while the programs in the right column represent the output programs and from which port they are from. User can parse the programs of each channel and multiplex those programs to the output.
  • Page 40 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 4.3.3.1 PID Filter Table Users can operate PID filter in this table by checking the check boxes of corresponding items and click CONFIRM to effect. Refresh: getting PID filter table from the device...
  • Page 41 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual User can decide to bypass the inputting PID as needed in this interface. In some occasions, there are some PIDs which won’t belong to any program, such as EPG, NIT tables, and so on, but user just wants to pass them through the multiplexing module without changing anything.
  • Page 42 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual User can also modify or delete the added PID through the corresponding buttons at right. 4.3.3.3 NIT Parameters NIT: Network Information Table. NIT table is a very important table for describing the network and TS. Users can set the parameters of the output NIT table.
  • Page 43 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual output TS. The private descriptor includes two parts. One is descriptor tag, and the other is descriptor information. ：The Descriptor Tag is an 8-bit field which identifies each descriptor. ：The Descriptor Data is the detailed information of the private description.

  • Page 44: Other Settings

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual ：The set ―Button‖ will send the NIT to the chosen output Port. 4.3.4 Real-time Monitor There will be a real-time bit rate chart generating in the monitor for users to check the bit rate information.
  • Page 45 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Users can click Operate and select Modify IP in the drop-down list, and a dialog box presents itself as shown below. Users input the new NMS IP Address for the device and click OK button to confirm.
  • Page 46 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual again. After finishing all the parameters setting, user should click button on the toolbar to save the modifications to the device’s flash. 4.4.3 User Add When logging in, user will note that the default user name is admin and no password.
  • Page 47 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 45 / 55...

  • Page 48: Chapter 5 Web Nms Operation (Optional)

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Chapter 5 WEB NMS Operation (Optional) User not only can use front buttons to set configuration, but also can control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the encoder’s IP address;...

  • Page 49: Operation

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual 5.2 Operation Welcome When we confirm the login, it displays the WELCOME interface as Figure-2. System information It automatically identifies and displays the signal source Norm, the current video encode mode and...
  • Page 50 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual CE-AC3 and PE-AC3 are inapplicable for NDS3228A Settable for CVBS input interface only. Choose to output the Video Status: Green light current IP stream or not. indicates the corresponding Every single program...
  • Page 51 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Figure-4 Click ―Refresh Input‖ to refresh the input program list. Click ―Refresh Output‖ to refresh the output program list. When user checks one input program with ―√‖, one can transfer the checked program to the right box to output.
  • Page 52 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Click ―Add‖ to add more boxes for filling the Input & Output PIDs, then click ―Apply‖ to confirm. General Clicking ―General‖ from the menu, it will display the interface as Figure-5 where to set the network info for the output TS.
  • Page 53 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual device mode as 1IP) 8IP: This mode refers to the 8 SPTS and outputs every single program with separate IP address. Users need to enable the IP Output in every channel interface (refer to Encoder 1 to encoder 8).
  • Page 54 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Network When user clicks ―Network‖, it will display the screen as Figure-8. It displays the network information of the device. Here user can change the device network configuration as needed.
  • Page 55 NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual and find the backup configuration file path. After selecting the file, click ―Load File‖ to load the backup file to the device. Browse Button Figure-10 53 / 55...

  • Page 56: Chapter 6 Troubleshooting

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Chapter 6 Troubleshooting DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.

  • Page 57: Chapter 7 Packing List

    NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder User’s Manual Chapter 7 Packing list  NDS3228A 8 in 1 MPEG-2 H.264 SD Encoder 1pcs  User’s manual 1pcs  CVBS/SDI Cable 8 pcs  ASI cable 1pcs  Power cord...
