HDMI Extender\Transmitter
Input
40-1090-3D-IR
Part No.
40-1090-3D-IR Transmitter
568B
HDMI Cable
6 ft. max length
From Start to Finish
40-1090-3D-IR Receiver
CALRAD
Electronics
Power
1080p - 3D Signal
IR
Receiver
Over UTP Cat 5e/6
For technical assistance call:
HDMI
Extender\Receiver
Output
40-1090-3D-IR
HDMI Cable Part No.
6 ft. max length
Note!: Set IR Switch to RX
40-1090-3D-IR
HDMI- IR BALUN OVER
SINGLE CAT5e/6 CABLE
Brochure & Typical Application Sheet
The 40-1090-3D-IR balun provides a single UTP category 5e/6
cable solution to deliver pristine digital signals from all HDTV
formats and signal sources from 480i/p to1080i/p. Balun
technologies are perfect solutions for replacing HDMI & IR cables
that are limited to shorter distances and difficult to route thru walls
and cabinets. Balun technology also offers many advantages when
HDTV video technology changes by installing new updated baluns
CAT5e: 480i, 720p, 1080i - 125 ft.
R
Tx
RJ45
Output
HDMI Plus IR
323-465-2131
Connector

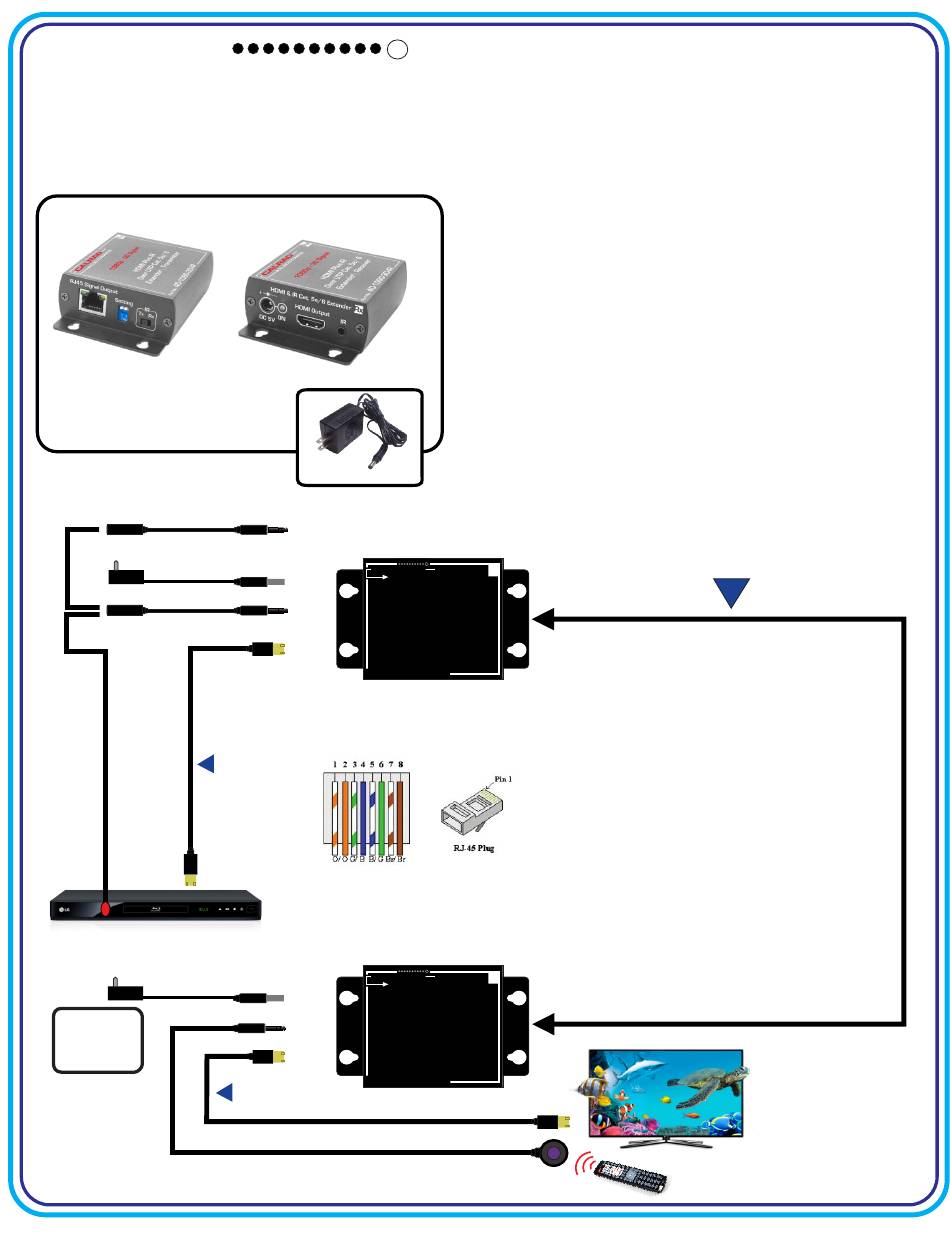

Wiring Diagram
R
Rx
RJ45
Input
HDMI Plus IR
323-465-2131
HDMI
Input
IR
Receiver
with the latest technology.
CABLE DISTANCE:
CAT6: 1080p - 148 ft.
Please Note! We recommend Cat6
cable for reliable 3D signal delivery.
Single Cat5e or Cat6 Cable
• HDTV Resolutions:
Cat5e 62M (200 ft. max) 480i/p, 720p, 1080i
• CAT5e 33M (110 ft. max) up to1080P,
CAT6 43M (140 ft. max)@1080p @ 24/50/60Hz
• IR Carrier Frequency: 30kHz - 60kHz
• IR Cable Input/Output interface:
1 x 3.5mm Mono Jack, (IR Emitter)
• Connectors: HDMI ln/Out Connectors, 19 pin
Female Jack, 1 x RJ45 Shielded Jack each unit.
• DC Power Supply: 2 x 5V, 1Amp Regulated
• Weight: Transmitter: 150g/ Receiver: 140g
• Transmitter: L-2.64" x W-4.0" x H-1.1"
• Receiver: L-4.0" x W-2.6" x H-1.1"
Please Note!
Some distances may vary and are dependent on
manufactures individual HDMI specifications. All
products should be fully tested prior to committing
to a UTP Cat5e, Cat6 solution and sealing long
runs of cables inside walls, possibly compromising
your installation.
