- Page 1 Recreation Series 15 Foot Screen/8” Speakers Instruction Booklet...

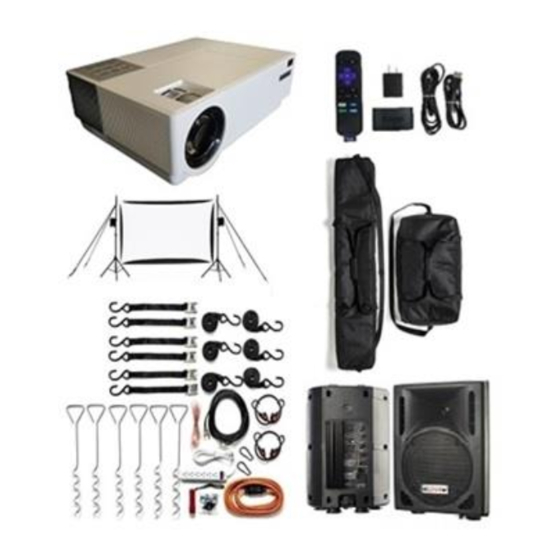

- Page 2 System Contents General Safety Information 1- Projector This warning symbol indicates a safety 1- Streaming Stick precaution or possible hazard. When this 1- White Stretch Screen symbol appears, you must use extreme 1- Black Non-Stretch Screen caution and follow the instructions properly. 1- Active Speaker 1- Passive Speaker Listed below are important general safety...
- Page 3 System Assembly 1. Open the tripod stands by loosening the lower knob and separate the legs until fully extended. Tighten the lower knob to secure. Repeat this step for the second stand and position it approximately 10.5 feet away from Step 2 Step 1 the first stand.
- Page 4 6. Unfold the black screen. Using the Spring Clips, attach the black screen’s D-Rings, Velcro side forward, to the eye bolt at the top of the stand. Repeat this step for the other stand. 7. Take the white screen and with the Velcro facing inward, secure it to the black screen using Step 6 the Spring Clips and Velcro along the top.
- Page 5 12. Plug the power cord into the back of the active speaker. Attach the active speaker to a tripod stand. There is a hole in the bottom of each speaker that will mount on top of the tripod. Secure it in place by tightening the knob on the back of the speaker.
- Page 6 Wiring Schematic Reference this diagram for correct system wiring. The component cables are shown in blue and the power cords in red. Streaming Stick Speaker Notes Because the projector must be hard wired for audio, the speaker mode must be set to “NO DISK”. THE PROJECTORS ARE NOT BLUETOOTH.
- Page 7 Trouble Shooting Warranty Information Outdoor Theater Systems warrants The projection screen has a 16:9 ratio manufacturing defects in original format. The projector can display in material, including original parts and either 16:9 or 4:3 ratio formats. To workmanship, under normal use and...
- Page 8 7120 Shady Oak Road Eden Prairie, MN 55344 952-513-7764 www.outdoortheatersystem.com info@outdoortheatersystem.com...
