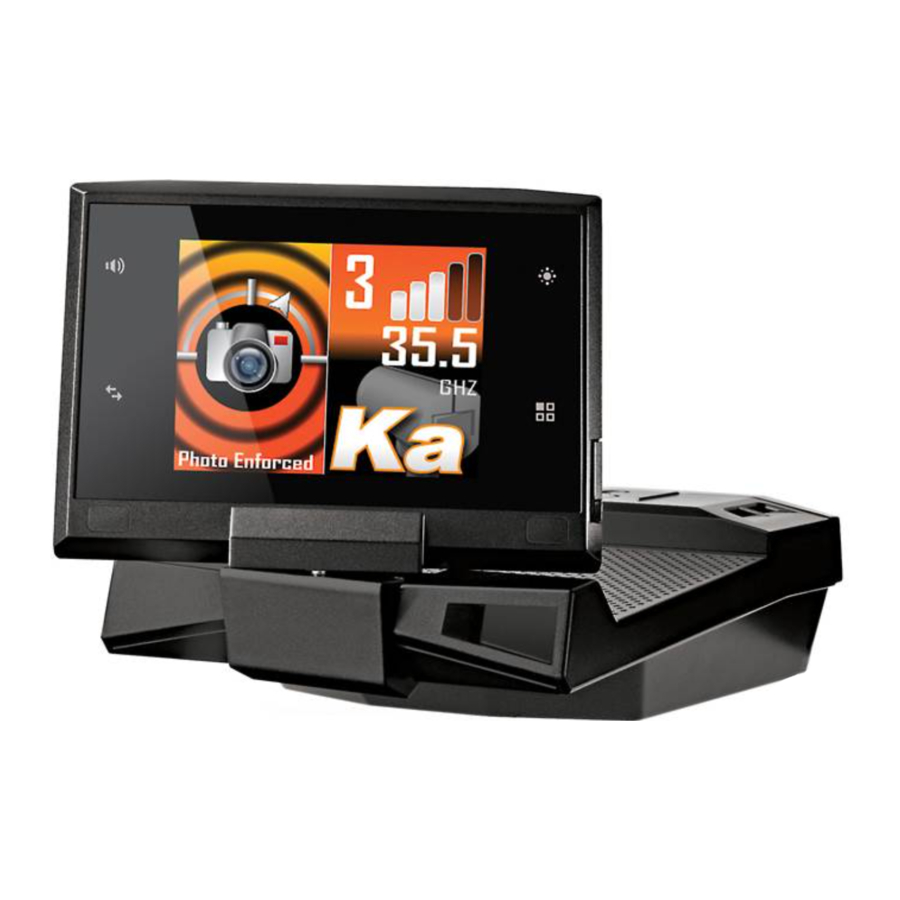

Cobra SLR 650G Radar/Laser/Camera Detector Manual

Introduction

Thank you for purchasing Cobra^® Vedetta^™ Series, Model SLR 650G Radar/Laser/Camera Detector. Please familiarize yourself with the capabilities your new detector can provide by reading this manual. Also, please be careful when using your new detector while driving.

Powering Unit On/Off & Mounting Unit

Plug in the detector using the included cigarette lighter power cord. Press the Power button momentarily to turn the unit On (or Off).

Note: To change display orientation, press and hold the Power button for 2 seconds.

Windshield Mount

Lift lever on suction cup base before attaching to the windshield.
Once attached, push against windshield and lock the lever down. Use the ball-joint adjustment and make sure the detector unit is aligned level and pointing straight ahead. The display can be in flip-up or flip-down position to suit preferred mounting location, and rotated to face directly toward you. Renew suction cup with a damp cloth or by rinsing under tap water.

Dash Mounting

For dash mounting, use the enclosed hook & loop fastener with double-sided tape. Simply attach it to the bottom of the unit with display in flip-up position.

Touch-Point Controls

Appropriate touch-point icons will light up automatically to show you available options. Touch the touch-point icons to activate corresponding function.

Touching Volumetouch-point while receiving an alert will mute the audible alert. Touching Display Brightnesstouch-point will turn off the display.

Types of Screens

Menu/Settings Screen

User Settings:
For customizing settings for IntelliMute, Auto Mute, Voice/Tone Alerts, Color Themes, Smart Power and Reset to Factory Default.

Alert Settings:
For customizing settings to turn on/off certain individual radar bands and Low Car Battery Warning.

GPS Settings:
For customizing settings for Speed Format, User-set Speed Alert, turn on/off certain individual Location-based Alerts, IntelliScope, AURA Database Info, and Delete User LBAs.
Navigate through Settings using the scroll touch-point.
Press Select to confirm and Menu to save and exit.

Standby Screen

Compass Heading:
Automatically displays GPS-based heading. If a GPS signal cannot be received will be displayed.

Vehicle Speed:
Automatically displays your current vehicle speed using GPS. If a GPS signal cannot be received will be displayed.

City/Highway Indicator:
Shows curent filtering mode.

Vehicle Battery Voltage:
Displays your car battery voltage and automatically warns you if this drops below 11.9V.

IntelliMute Indicator:
See reverse of this manual.

Radar/Laser Alert Screen

Radar bands consist of X-band, K-band, Ka-band, and Ku-band. With Radar signals, the signal strength meter shows signal strength of the radar gun as well as relative proximity to the source. With Ka-band, you will also be notified of the actual Ka-band radar gun frequency being used.

With Laser signals, you will always receive full alert and pulse rate (PPS) of the corresponding laser gun being used. Laser PPS currently in use are: 100, 125, 130, 200, 238 and 340.

Location-based Alert Screen

In order to save a User Location in the detector's memory, simply press and hold the MENU touch point for 2 seconds, then select the type you want to use.

In order to delete a User Location that you've programmed, during that alert press and hold the MENU touch point for 2 seconds and then press Select to confirm. You can delete all User Locations from the GPS Menu.

Size of the icons for different alert types will become progressively larger as you approach the Location-based Alerts (LBA) Area. The alert types are:

	Photo-enforced Areas (Red-light & Speed Cameras)
	Known Speed Trap Areas
	Caution Areas (High Accident Areas)
	User Location Areas

Note: If both a radar and Location-based alerts happen at the same time, both will be displayed side by side.

Quad-level IntelliShield^™ False Signal Rejection

Highway Mode provides full immediate response to all signals detected. Use this mode when you are driving on interstate highways.

Automatic door openers operate in X and K-band frequencies. To minimize unwanted false alerts in an urban environment where these sources exist, use one of the City Filtering Modes below:

City X: automatically mutes X-band audible alert until signal strength reaches level 3 or above.
City X+K: combined with City X, automatically mutes K-band audible alert until signal strength reaches level 2 or above.
City Plus X+K+Ka: combined with City X+K, automatically mutes Ka-band audible alert until signal strength reaches level 2 or above.
City MAX: Maximum filtering against urban false signal sources.

To choose between different City Filtering Modes vs Highway Mode, touch City/Highway Touch-point Icon next to the display and follow on-screen instructions.

IntelliMute^™

IntelliMute allows you to avoid audible alerts you don't need to hear because you are stopped or moving slowly. By sensing the RPMs of your engine, IntelliMute knows when you are at low speed and automatically mutes alerts. You can set your preferred engine RPM activation point and/or turn on/off IntelliMute by following simple steps that appear on your unit screen, under User Settings and then IntelliMute.

IntelliMute Engine RPM Activation Point Not Set.
IntelliMute On/Above Set Engine RPM Activation Point.
IntelliMute On/Below Set Engine RPM Activation Point.

Note: IntelliMute may not work with some vehicles, especially hybrids or EVs because the detector cannot sense the engine RPMs. In such case, Quad-level IntelliShield City Filtering or Auto Mute can help reduce unwanted audible alerts.

IntelliScope^™

In conjunction with detection of a Location-based Alert (LBA), when IntelliScope is turned on, it will also provide you with the direction/arrow pointing towards that LBA location.
Follow simple on-screen instructions under GPS Settings and then IntelliScope.
When IntelliScope is turned off, you will only get those alerts that you are approaching directly towards.

Speed Alert

When a speed is set, and you exceed that speed, you will hear a chime and the speed displayed will change color. Set this in the GPS Settings Menu. Use the scroll arrows to change the speed.

Updating you AURA™ Database

To update the AURA red-light/speed camera and known speed traps database for the first time, go to
AURA.cobra.com and follow the online instructions.

NOTE:
This device complies with part 15 of FCC rules: Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that may cause undesired operation.

Modifications or parts not approved by Cobra Electronics Corporation may violate FCC Rules and void authority to operate this equipment.

For additional information, please visit:
www.cobra.com
