  • Page 2 Copyright ZEB-CAM™ User’s Manual © 2017 GeoSLAM Ltd. All rights reserved. © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 3 © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 4: Table Of Contents

    Installation ......................7 Further help and information .................7 Data capture .........................9 Mounting ZEB-CAM ....................9 ZEB-CAM SETTINGS ....................9 Capturing data with ZEB-CAM ................10 Data Processing ......................11 GOPro Basics .......................13 Charging the battery .....................14 Inserting and removing the memory card ............15 Wireless settings....................16 ©...
  • Page 5 © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 6: Introduction

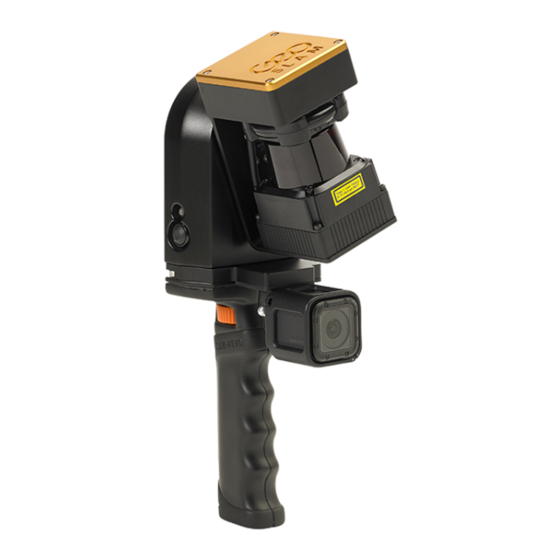

    GeoSLAM Desktop processing application. A unique optical flow algorithm is used to determine the relative timing between the video and laser data. The viewer in GeoSLAM Desktop can be used to view the video data alongside the point cloud data from the ZEB-REVO.
  • Page 7: List Of Parts

    5 GS_USB_A_uB USB A to Micro B charging cable 6 GO_PRO_MAN GoPRo Hero Session Starter Guide 7 WEST_M4_8_CAP_3 3 x M4x8mm caps screws 8 RS_609_556 3mm hex key Table 1-2: List of parts © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 8: Safety

    Bingham, UK for proper treatment with the objectives of the WEEE. INSTALLATION The ZEB-CAM can only be used with be used in conjunction with a GeoSLAM ZEB-REVO handheld laser scanner. For instructions how to mount ZEB-CAM see Section 3.1 Mounting ZEB-CAM...
  • Page 9 © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 10: Data Capture

    DATA CAPTURE This chapter describes how to mount ZEB-CAM to the ZEB-REVO and how to operate ZEB- CAM during REVO data capture. MOUNTING ZEB-CAM If the ZEB-CAM is not already mounted on the ZEB-REVO, mount the camera by following these steps: Remove the ZEB handle by unscrewing the orange knurled wheel at the top of the handle.
  • Page 11: Zeb-Cam Settings

    The GoPro Hero Session camera is delivered with configuration settings required for use in ZEB-CAM pre-set. If for any reason the camera settings are changed the settings listed in Table 3-1 must be reset to the values shown in order for the ZEB-CAM data to process correctly.
  • Page 12: Data Processing

    Select the corresponding video MP file(s)* when requested to do so by the GeoSLAM Desktop application. *ZEB-CAM video files are limited in files size to 4GB due to a limitation of the FAT32 disk format. Videos in excess of 4GB (approximately 9 minutes) are split into multiple MP4 files or chapters, each with a common file name plus index number to differentiate each chapter.
  • Page 13 © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 14: Gopro Basics

    GOPRO BASICS Camera Status Screen Shutter/Select Button Microphone Camera Status LED (red) / Wireless Status LED (blue Micro-USB Port microSD Card Slot Info/Wireless Button Table 5-1: ZEB-CAM GoPro © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 15: Charging The Battery

    When charging the camera with a computer, be sure that the computer is connected to a power source. If the camera status lights do not turn on to indicate charging, use a different USB port. © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 16: Inserting And Removing The Memory Card

    Press the card in until it latches in place To remove the memory card Ensure the camera is powered off. Open the side door. Gently press the memory card in to unlatch it. Carefully extract the memory card © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
  • Page 17: Wireless Settings

    The camera WiFi settings have been pre-set to the last eight digits of the camera serial number. The serial number can be found on the inside of the side door: SSID NNNNNNNN Password NNNNNNNN Where NNNNNNNN is the last eight digits of the camera serial number. © 2017 GeoSLAM Ltd ZEB-CAM User’s Manual v1.0.1...
