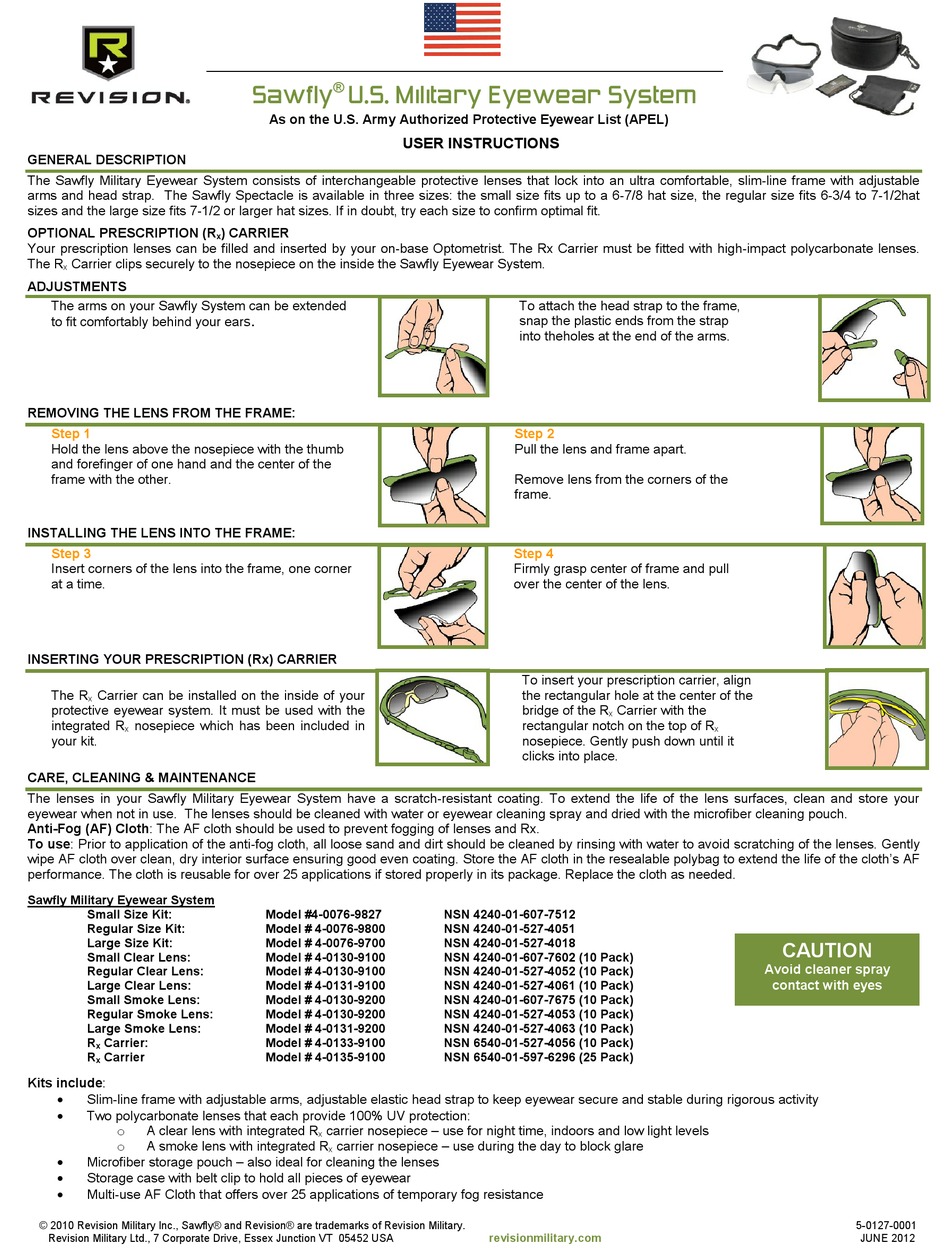

Revision Sawfly User Instructions

GENERAL DESCRIPTION

The Sawfly Military Eyewear System consists of interchangeable protective lenses that lock into an ultra comfortable, slim-line frame with adjustable
arms and head strap. The Sawfly Spectacle is available in three sizes: the small size fits up to a 6-7/8 hat size, the regular size fits 6-3/4 to 7-1/2hat
sizes and the large size fits 7-1/2 or larger hat sizes. If in doubt, try each size to confirm optimal fit.
OPTIONAL PRESCRIPTION (R
Your prescription lenses can be filled and inserted by your on-base Optometrist. The Rx Carrier must be fitted with high-impact polycarbonate lenses.
The R Carrier clips securely to the nosepiece on the inside the Sawfly Eyewear System.
x

ADJUSTMENTS

The arms on your Sawfly System can be extended
to fit comfortably behind your ears.

REMOVING THE LENS FROM THE FRAME:

Step 1
Hold the lens above the nosepiece with the thumb
and forefinger of one hand and the center of the
frame with the other.

INSTALLING THE LENS INTO THE FRAME:

Step 3
Insert corners of the lens into the frame, one corner
at a time.

INSERTING YOUR PRESCRIPTION (Rx) CARRIER

The R Carrier can be installed on the inside of your
x
protective eyewear system. It must be used with the
integrated R nosepiece which has been included in
x
your kit.
CARE, CLEANING & MAINTENANCE
The lenses in your Sawfly Military Eyewear System have a scratch-resistant coating. To extend the life of the lens surfaces, clean and store your
eyewear when not in use. The lenses should be cleaned with water or eyewear cleaning spray and dried with the microfiber cleaning pouch.
Anti-Fog (AF) Cloth: The AF cloth should be used to prevent fogging of lenses and Rx.
To use: Prior to application of the anti-fog cloth, all loose sand and dirt should be cleaned by rinsing with water to avoid scratching of the lenses. Gently
wipe AF cloth over clean, dry interior surface ensuring good even coating. Store the AF cloth in the resealable polybag to extend the life of the cloth's AF
performance. The cloth is reusable for over 25 applications if stored properly in its package. Replace the cloth as needed.
Sawfly Military Eyewear System
Small Size Kit:
Regular Size Kit:
Large Size Kit:
Small Clear Lens:
Regular Clear Lens:
Large Clear Lens:
Small Smoke Lens:
Regular Smoke Lens:
Large Smoke Lens:
R Carrier:
x
R Carrier
x
Kits include:

Slim-line frame with adjustable arms, adjustable elastic head strap to keep eyewear secure and stable during rigorous activity

Two polycarbonate lenses that each provide 100% UV protection:
A clear lens with integrated R
o
A smoke lens with integrated R
o

Microfiber storage pouch – also ideal for cleaning the lenses

Storage case with belt clip to hold all pieces of eyewear

Multi-use AF Cloth that offers over 25 applications of temporary fog resistance
© 2010 Revision Military Inc., Sawfly® and Revision® are trademarks of Revision Military.
Revision Military Ltd., 7 Corporate Drive, Essex Junction VT 05452 USA
®
Sawfly U.S. Military Eyewear System
As on the U.S. Army Authorized Protective Eyewear List (APEL)
) CARRIER
x
Model #4-0076-9827
Model # 4-0076-9800
Model # 4-0076-9700
Model # 4-0130-9100
Model # 4-0130-9100
Model # 4-0131-9100
Model # 4-0130-9200
Model # 4-0130-9200
Model # 4-0131-9200
Model # 4-0133-9100
Model # 4-0135-9100
carrier nosepiece – use for night time, indoors and low light levels
x
carrier nosepiece – use during the day to block glare
x
USER INSTRUCTIONS
To attach the head strap to the frame,
snap the plastic ends from the strap
into theholes at the end of the arms.
Step 2
Pull the lens and frame apart.
Remove lens from the corners of the
frame.
Step 4
Firmly grasp center of frame and pull
over the center of the lens.
To insert your prescription carrier, align
the rectangular hole at the center of the
bridge of the R
rectangular notch on the top of R
nosepiece. Gently push down until it
clicks into place.
NSN 4240-01-607-7512
NSN 4240-01-527-4051
NSN 4240-01-527-4018
NSN 4240-01-607-7602 (10 Pack)
NSN 4240-01-527-4052 (10 Pack)
NSN 4240-01-527-4061 (10 Pack)
NSN 4240-01-607-7675 (10 Pack)
NSN 4240-01-527-4053 (10 Pack)
NSN 4240-01-527-4063 (10 Pack)
NSN 6540-01-527-4056 (10 Pack)
NSN 6540-01-597-6296 (25 Pack)
revisionmilitary.com
Carrier with the
x
x
CAUTION
Avoid cleaner spray
contact with eyes
5-0127-0001
JUNE 2012
