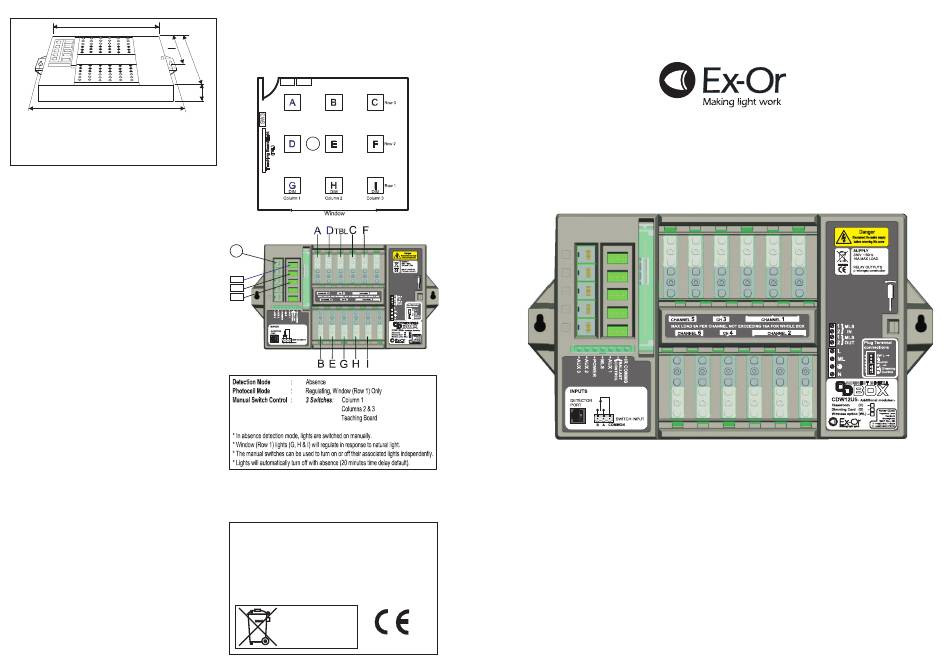

Ex-Or CDW12U5 Installation And Commissioning Instructions

W
D
2
F
Dimensions
Height (H) = 50mm (108mm including plug and lead)
Width (W) = 315mm (361mm including mounting feet)
Depth (D) = 205mm
Fixing Centres (F) = 340mm
Weight = 1.85 kg

Technical Data

Operational Supply 230V ~ 50Hz
Power Consumption 18W maximum
Product Rating &
Recommended Circuit Protection 16A
Maximum Load per Channel 6A
Maximum Total Load 16A
Digital dimming ballasts per Channel 8 maximum
Digital dimming ballasts per CD box 20 maximum
Maintained Live Output 2A total per CD box
Mains Supply Terminal capacity 1x2.5mm² or 1x4.0mm²
Override Switch input connector 2.5mm²
MLS Bus connector 2.5mm²
MLS Bus Cable 1.5mm² unscreened
twisted pair. See
Application Note AN4001
Case Material UL94-V0 Polycarbonate
Case Finish Lightly textured gunmetal
grey
Part Numbers
CDW12U5 Programmable Connect Digital Box without
Dimming Card, without MLS Bus Interface.
CDW12U5-D Programmable Connect Digital Box with
Dimming Card, without MLS Bus Interface.
CDW12U5-B Programmable Connect Digital Box without
Dimming Card, with MLS Bus Interface.
CDW12U5-BD Programmable Connect Digital Box with
Dimming Card and with MLS Bus Interface.
CDWDC Plug-in Digital Dimming Card.
CDWBC Replacement MLS Bus Interface.
CDWIP Switch Input Plugs (set of 5)
MLS2500CDR Corner-Mount Microwave Presence
Detector with Photocell, Semi-Flush Mounted
Available Surface Mount (SM suffix)
MLS2401CDR 360° Microwave Presence Detector
with Photocell, Flush Mounted.
Available Surface Mount (SM suffix)
MLS2001CDR 360º PIR Presence Detector with
Photocell, Flush Mounted
Available Surface Mount (SM suffix) .
BT5E030GY 3m Detector Patch Lead.
BT5E050GY 5m Detector Patch Lead.
BT5E100GY 10m Detector Patch Lead.
CPWL633 3m Luminaire Lead, 3-core, 6-pole
GST 18/6 Plug & Ex-Or Latching Shell.
CPWL635 5m Luminaire Lead, 5-core, 6-pole
GST 18/6 Plug & Ex-Or Latching Shell.
CPWL643 3m Luminaire Lead, 4-core, 6-pole
GST 18/6 Plug & Ex-Or Latching Shell.
CPWL645 5m Luminaire Lead, 4-core, 6-pole
GST 18/6 Plug & Ex-Or Latching Shell.
CPWL653 3m Luminaire Lead, 5-core, 6-pole
GST 18/6 Plug & Ex-Or Latching Shell.
CPWL655 5m Luminaire Lead, 5-core, 6-pole
GST 18/6 Plug & Ex-Or Latching Shell.
CPWL663 3m Emergency Luminaire Lead, 6-core,
6-pole GST 18/6 Plug & Ex-Or Latching Shell.
CPWL665 5m Emergency Luminaire Lead, 6-core,
6-pole GST 18/6 Plug & Ex-Or Latching Shell.
CPWL6 GST 18/6 Plug & Ex-Or Latching Shell.
CPWL6S Ex-Or Latching Shell alone.
RB2000 MLS Digital Bus Power Supply.
RB2000LT MLS Digital Bus Power Supply 'Lite'.

An Example Configuration

A school classroom, where a sophisticated blend of manual and
automatic control is required, with overall manual control by staff
augmented by automatic dimming control of luminaires adjacent to large
windows and the automatic switch-off of the lights following an often
D
ragged quitting of the room at the end of a teaching session, where staff
typically will not be the last to leave.
SW1 SW2
H
Det
Det
SW1
SW2
SW3
, (All Channels, 1-6)
, (Channels 4 & 5)
1
2
3
Ex-Or operates a genuine policy of continuous
improvement. You may expect the specification to be
regularly enhanced. For the latest technical information
www.ex-or.com
please visit
Ex-Or
Novar ED&S Limited
Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: +44 (0)1942 719229
Fax: +44 (0)1942 272767
Email: technicalsales.ex-or@honeywell.com
www.ex-or.com
At the end of their useful life the
packaging and product should be
disposed of via a suitable recycling
centre.
Do not dispose of with normal
household waste.
Do not burn.
The CDW12U5 Programmable Connect Digital Box
, (Channels 2 & 4)
, (Channels 1, 2 & 6)
, (Channel 3)
W4400C
Installation and Commissioning Instructions
