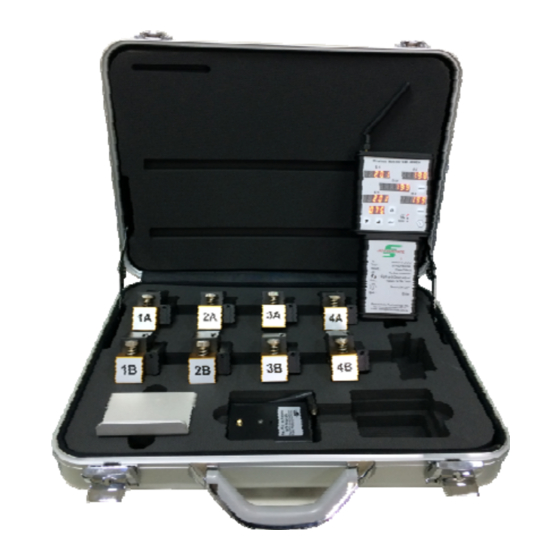

Instruction Manual forwireless Magnet Extensometer SML-WMEH 1 Description The Magnet-Strain Sensors Type SML-WME are latest generation wireless extensometers with two integrated super magnets to measure the bending compensated tie bar elongation and/or load (Load: if 2 sensors are used on one tie bar).
Page 3
Instruction Manual forwireless Magnet Extensometer SML-WMEH 1.2 Technology: The Sensor SML-WME is based on pressed-on strain gauges . This successful technology is used in many products for the molding industry. The pressed on strain gage is placed under a stainless steel foil between the two magnets.
Instruction Manual forwireless Magnet Extensometer SML-WMEH 2. Instructions SML-WME sensor with battery housing outline Batteries in housing IMPORTANT: This sensors are sensitive measuring instruments with a resolution of 0.001mm .Handle this instruments with the respective care.. These instructions shall be read carefully by any user prior to application.
