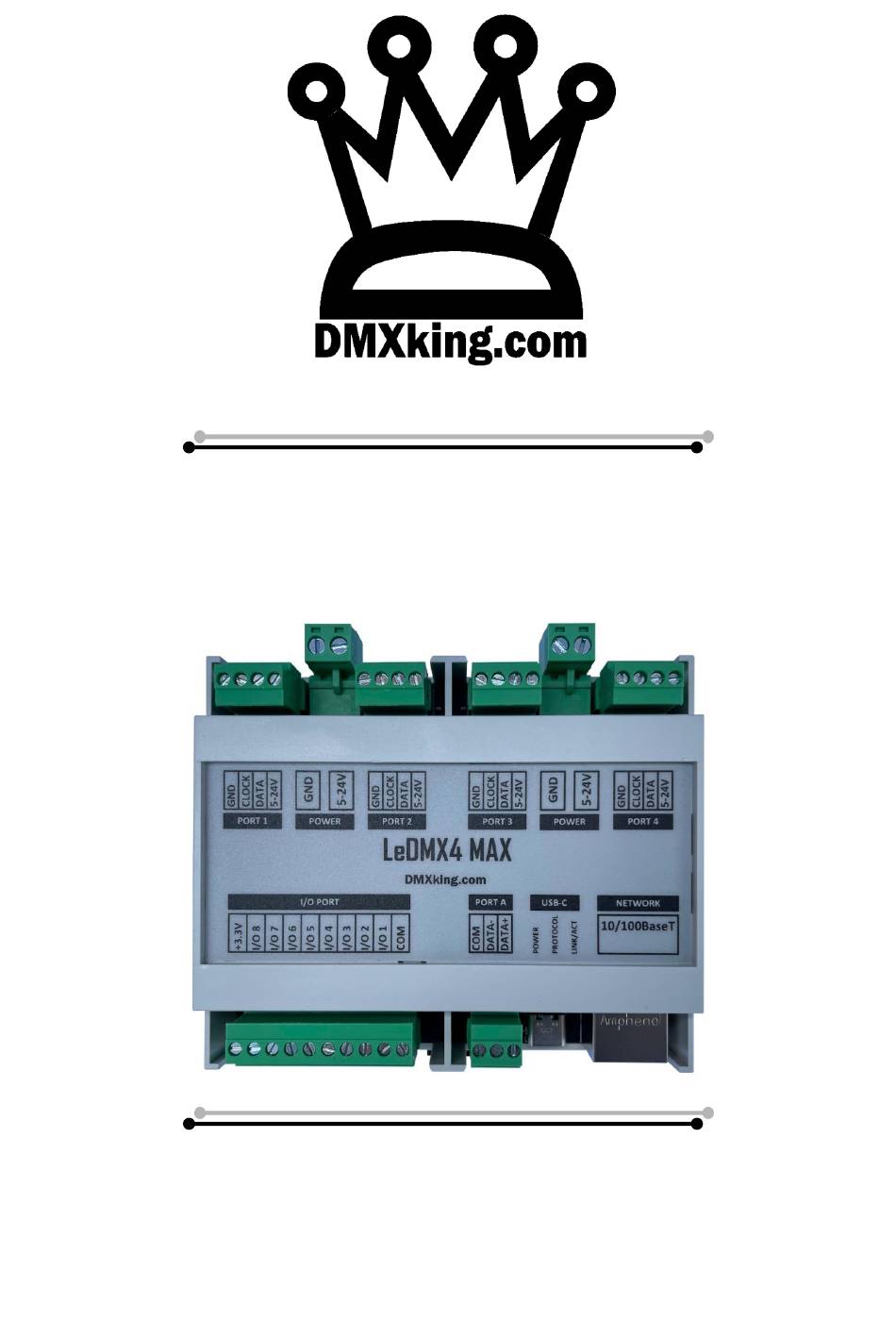

- Page 1 LeDMX4 MAX USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4...
-
Page 2: Table Of Contents
Hardware and Firmware versions ..............................1 Main Features ....................................2 Connections....................................3 LeDMX4 MAX ....................................3 LeDMX4 MAX Front Panel Label Error ............................3 Status LED Table ....................................4 Default Configuration ................................. 4 Configuration Utility ................................... 6 Network Tab ....................................6 Settings Tab ..................................... - Page 3 Frequently Asked Questions ..............................21 Warranty ....................................23 DMXking.com Hardware Limited Warranty ..........................23 DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4...
-
Page 4: Introduction
1. INTRODUCTION Thanks for purchasing a DMXking product. Our aim is to bring you high quality products with great features we know you’ll appreciate. In many LED pixel installations, especially where the majority of pixels may be running simultaneously at full brightness, it is necessary to inject DC power at various points along the pixel strip/string/array. -
Page 5: Main Features
IMPORTANT: In many LED pixel installations, especially where the majority of pixels may be running simultaneously at full brightness, it is necessary to inject DC power at various points along the pixel strip or string. Although the LeDMX4 MAX can only provide up to 8A per output port terminal block this is not a limitation since currents higher than that would require power injection along the strip anyhow. -
Page 6: Connections
LEDMX4 MAX FRONT PANEL LABEL ERROR Note earlier production units have incorrect I/O Port labelling where I/O 1 – 8 are flipped 8 – 1. Above image shows the incorrect label. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 7: Status Led Table
Pixel port 4 activity 3. DEFAULT CONFIGURATION LeDMX4 MAX units ship with default static IP address settings. Please reconfigure for your local area network requirements before use. Default configuration is for WS2811/2812 pixel output with automatic RGB color order correction and 1 DMX universe mapping to 170 RGB pixels per output. - Page 8 Full DMX Frame Unchecked Broadcast Threshold 10 [Art-Net II/3/4 unicasting up to 10 nodes]. Set to 0 for Art-Net I broadcast on DMX IN ports. Unicast IP [DMX-IN] 0.0.0.0 sACN Priority [DMX-IN] DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4...
-
Page 9: Configuration Utility
Art-Net port is unavailable. It is also possible to lock eDMX Configuration to the alternate port via the Advanced menu. Note that DMXking nodes are always listening on both primary and alternate ports so there is no device configuration required to change. - Page 10 Unicast single node discovery and configuration is possible by selecting Advanced | Unicast Poll and entering the destination IPv4 address then click Search. This will function over routed networks provided a Default Gateway has been specified in the node Network Settings. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4...
- Page 11 We do not recommend performing firmware updates over routed networks. Note only signed encrypted firmware files from DMXking.com can be successfully loaded to ensure you won’t brick your device by accident. Future firmware releases for this product will be in the form 0128-500-VersionMajor.VersionMinor.enc DMXking.com •...
-
Page 12: Settings Tab
Alternate mapping applies. For Primary source 100 Priority and Alternate source 50 set threshold between 50 and 99 for example. Note only first universe mapped to pixel port is used to determine priority. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 13: Port Tab - Pixel Outputs
Mapping button returns Start Channel, Pixel Group Size, ZigZag and Direction to defaults that ensure Full Mapping mode is not automatically activated. Parameter Usage Pixel Type Must match your connected Pixel type. There are clock speed options for many pixel types and we recommended slower rates for longer cable runs. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... - Page 14 Pixel Count = 12, Null Pixels = 0, Start Universe = 1, Start Channel = 0. Pixel Group Size = 1 Pixel Group Size = 2 Reverse Order. Pixel Group Size = 1 DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4...
-
Page 15: Port Tab - Dmx512 Port
In DMX-OUT mode if Timeout all sources is unchecked and Hold Last mode selected the output will hold last frame forever. Timeout all sources checked and Failsafe Mode other than Hold Last selected will cause the output to change to Zero, Full or Snapshot Scene. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... - Page 16 When incoming DMX512 channel 1+N exceeds 512 to channels are ignored/lost. Make changes to the applicable Port settings then click Update. Changes on all port tabs are updated regardless of which tab the Update button is clicked. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4...
-
Page 17: Recorder Tab
Please refer to the eDMX MAX Recorder manual for more information. This functionality is common to all eDMX MAX and LeDMX MAX that include an SD card socket. Backup battery replacement procedure can also be located in that document. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 18: Dmx Display Function
Above an LeDMX2 MAX reports Port A at 0fps, Pixel output at 30fps with no synchronization present (Async mode) and the recorder state Idle. In the example above the recorder status indicates there is No SD card present. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 19: Art-Net Node Name
Follow procedure to manually load firmware to default IP address or use Find My eDMX application. • Level 3: Force ROM Bootloader. Not for end user. eDMX Configuration Factory Reset (Legacy devices) menu is not relevant to LeDMX MAX devices and will not have any effect. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 20: Summary Of Settings
DMX Universe sACN 1-63999 which is translated to an Art-Net Port-Address (Net:Sub:Uni). Setting DMX Universe = 1 results in sACN Universe = 1 and Art-Net 00:0:0 (Universe 1 = Art-Net Universe DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 21: Ports, Merging, Priority And Dmx Input
Art-Net source timed out 3 seconds after last received frame, sACN stream termination flag otherwise 3 second timeout after last received frame. DMX-IN Art-Net Merge external DMX512 source with incoming Art-Net stream. DMX-IN sACN / E1.31 Merge external DMX512 source with incoming sACN stream. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 22: Sacn / E1.31 Priority
Art-Net I/II/3/4 device networks but still permit unicast when Art-Net II/3/4 devices are used exclusively. For DMX-IN sACN multicast frames will be generated when Fixed IP is 0.0.0.0 otherwise frames are unicast to the specified destination. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4... -
Page 23: Compatible Software
These days almost any lighting or stage effect equipment may be controlled using DMX512 including LED pixels. The DMXking LeDMX4 MAX unit is a 4 Pixel Output + 1 DMX512 sACN/Art-Net device designed for use with computer-based show control and effect software. -
Page 24: Technical Specifications
APA102, SK9822, APA104, APA106, APA107, INK1002, INK1003, SM16703, SK6812, WS2801, LPD6803, LPD8806, DMX512-P, P9813, GS8208, TM1814, TM1914A, TLS3001 pixel types and equivalents supported. Note many pixels are actually the exact same protocol timing as those listed. Check with DMXking support •... - Page 25 A: No. Unless you are suitably qualified please defer all AC mains wiring to applicable professionals. Safety first. Q: My question doesn’t appear here. A: Ask your distributor for technical support. Maybe it’ll appear in the next user manual too. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.4...
- Page 26 This warranty covers any defects in materials or workmanship with the exceptions stated below. How long coverage lasts This warranty runs for two years from the date of shipment from an authorized DMXking distributor. What is not covered Failure due to operator error or incorrect application of product.
