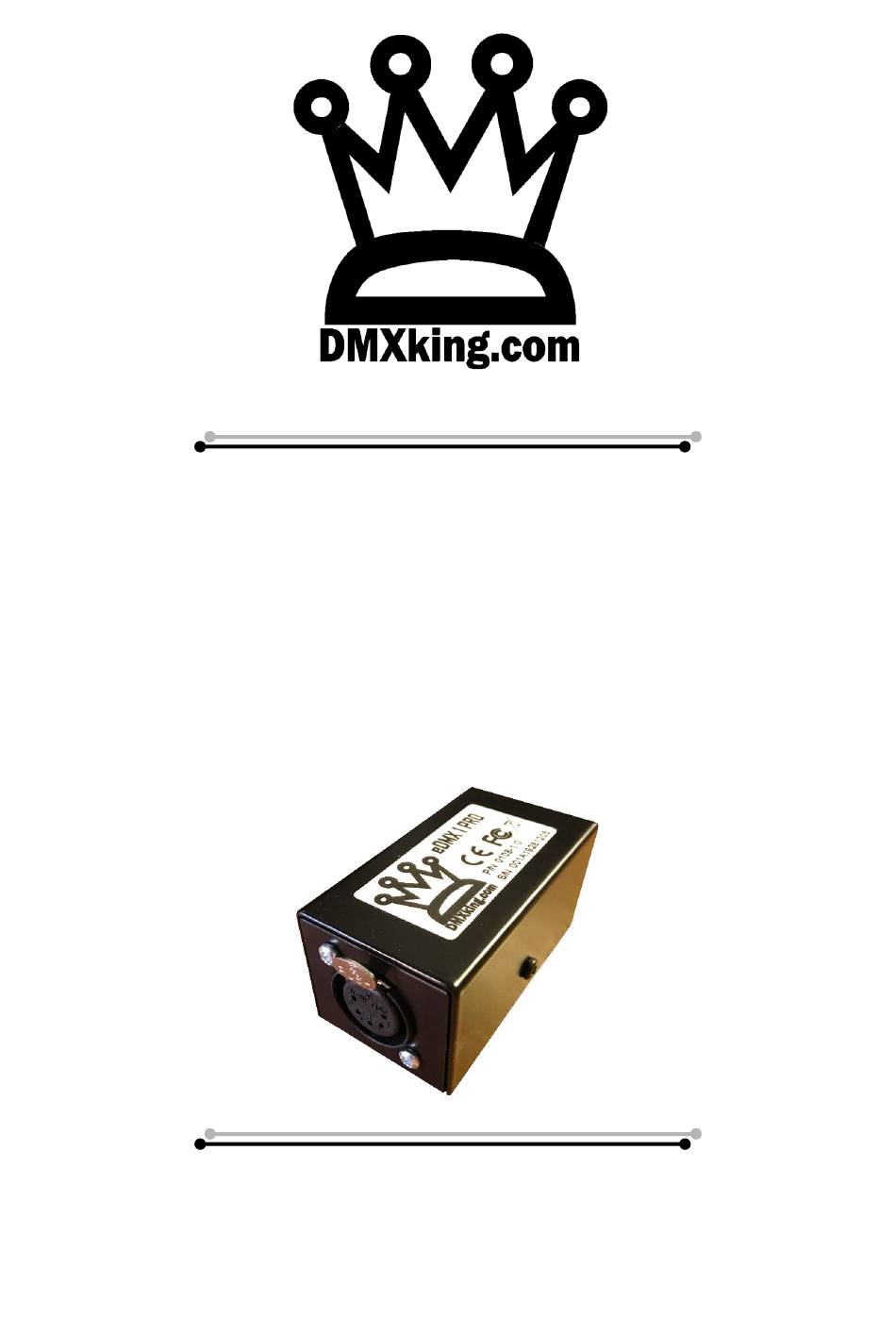

- Page 1 PRO USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0108-700-3.7...
-
Page 2: Table Of Contents
Technical Specifications ................................14 Warranty ....................................14 DMXking.com Hardware Limited Warranty ..........................14 Declarations (FCC & CE) ................................15 Federal Communications Commission (FCC) Declaration of Conformity ..................15 EEC Declaration ..................................... 16 DMXking.com • JPK Systems Limited • New Zealand 0108-700-3.7... -
Page 3: Introduction
1. INTRODUCTION Thanks for purchasing a DMXking.com product. Our aim is to bring you high quality products with great features we know you’ll appreciate. We ship only what’s required which is why there’s no CD or printed manual in the box, this is part of our commitment to minimizing environmental impact. -
Page 4: Main Features
Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android..− eDMX1 PRO - 1x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support − Art-Net broadcast, Art-Net II,3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support −... -
Page 5: Exterior View
USB type B power socket + Ethernet RJ45 socket STATUS LED TABLE Indication Protocol Protocol activity. Flash Yellow = Art-Net/sACN. Solid Yellow = Firmware Update mode. Network Network activity. Green = Link, Flash = Traffic DMXking.com • JPK Systems Limited • New Zealand 0108-700-3.7... -
Page 6: Default Configuration
3. DEFAULT CONFIGURATION All eDMX1 PRO units ship with DHCP network mode enabled. Please reconfigure network settings as required before use. Parameter Default Setting IP Address 192.168.0.111 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.254 IGMPv2 Unsolicited Unchecked Report Network Mode DHCP DMX512 Port configuration parameter defaults. -
Page 7: Configuration Utility
Before starting the eDMX Configuration utility please ensure your computer has appropriate IPv4 network settings. It’s highly likely the computer is configured for DHCP addressing and no change necessary since eDMX1 PRO is also DHCP by default. Upon startup eDMX nodes are automatically detected and displayed by IP address. To poll for new devices or just check the communications is okay by clicking Search. -
Page 8: Port Tab
We do not recommend performing firmware updates over routed networks. Note only signed encrypted firmware files from DMXking.com can be successfully loaded to ensure you won’t brick your device by accident. Future firmware releases for this product will be in the form 0108-500-VersionMajor.VersionMinor.enc... - Page 9 When incoming DMX512 channel 1+N exceeds 512 to channels are ignored/lost. Make changes to the applicable Port settings then click Update. Changes on all port tabs are updated regardless of which tab the Update button is clicked. DMXking.com • JPK Systems Limited • New Zealand 0108-700-3.7...
-
Page 10: Dmx Display Function
Note Art-Net II unicast is not supported meaning only Art-Net broadcast streams are displayed. The DMX Display utility works with any manufacturers Art-Net hardware and can be useful for diagnostics and simple testing of DMX512 fixtures. DMXking.com • JPK Systems Limited • New Zealand 0108-700-3.7... -
Page 11: Node Report
NODE REPORT From firmware v3.3+ each node provides a brief status report indicating DMX frame rate and SYNC status. Above an eDMX1 PRO reports Port A at 40fps with no synchronization present (Async mode). ART-NET NODE NAME The Art-Net protocol supports device naming which can make larger installations more manageable. Both Short Name (17 characters) and Long Name (63 characters) for an eDMX Device can be modified using the Advanced | Edit Node Name dialog. -
Page 12: Summary Of Settings
DMX Universe sACN 1-63999 which is translated to an Art-Net Port-Address (Net:Sub:Uni). Setting DMX Universe = 1 results in sACN Universe = 1 and Art-Net 00:0:0 (Universe 1 = Art-Net Universe DMXking.com • JPK Systems Limited • New Zealand 0108-700-3.7... -
Page 13: Ports, Merging, Priority And Dmx Input
If Broadcast Threshold > 0 and zero Art-Net II/3/4 devices are "subscribed" to that universe the frame is broadcast on the subnet. DMXking.com • JPK Systems Limited • New Zealand 0108-700-3.7... -
Page 14: Compatible Software
LED screens, fog machines and laser displays. The DMXking.com eDMX4 unit is a 4 universe Art-Net/sACN device designed for use with computer based show control software or expansion of lighting console outputs. It replaces an entire lighting console allowing the user to perform sophisticated shows with little more than a laptop. -
Page 15: Declarations (Fcc & Ce)
Failure due to operator error or incorrect application of product. Opening the unit voids the warranty. What DMXking.com will do DMXking.com will repair or replace, at its sole discretion, the defective hardware. Return shipping costs from our service facility in New Zealand shall be free of charge. -
Page 16: Eec Declaration
Pukekohe 2340 New Zealand declare under our sole responsibility that our product eDMX1 PRO conforms to the requirements of Council Directives 89/336/EEC and 73/23/EEC and therefore complies with the requirements of Council Directive 73/23/EEC, (The Low Voltage Directive) on the...
