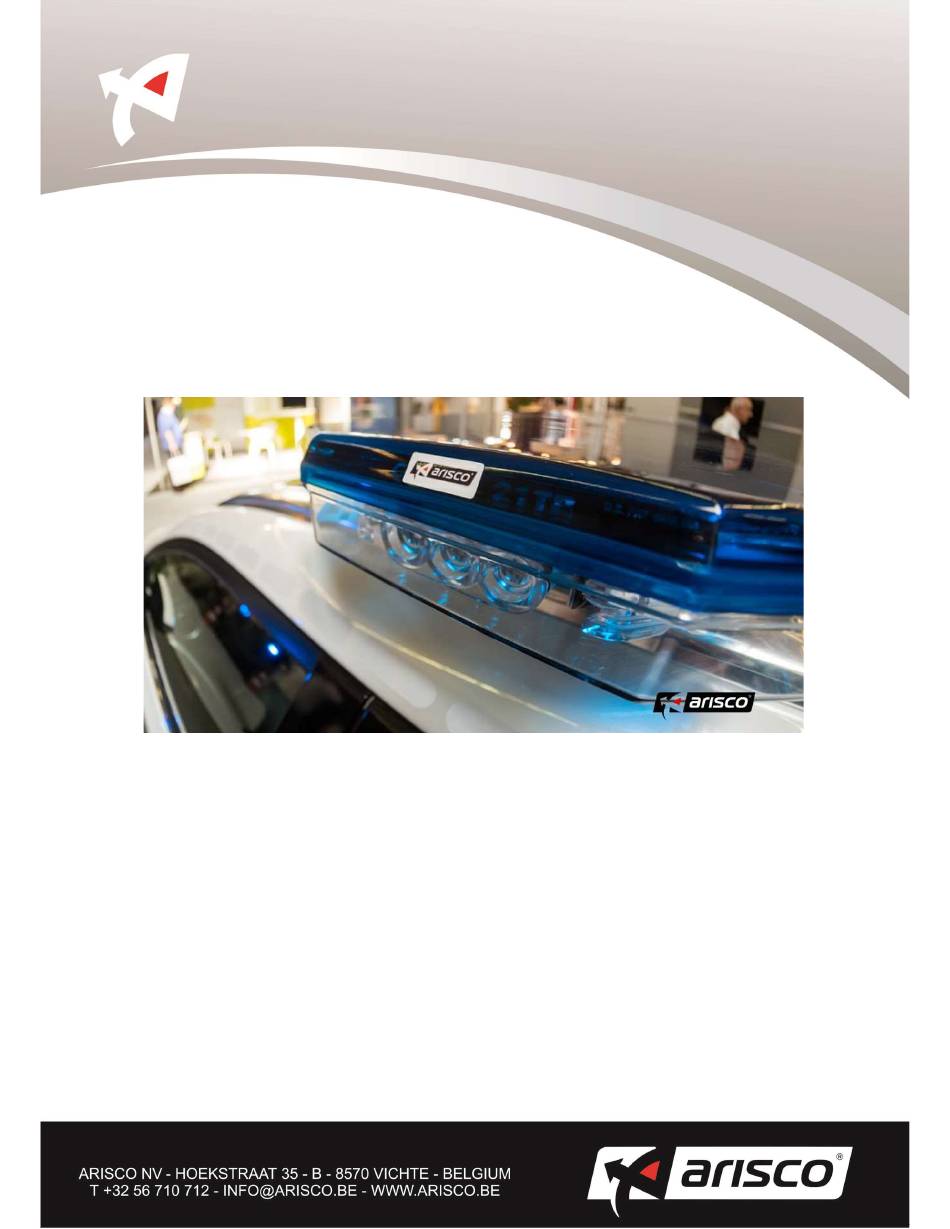

- Page 1 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 Page 1 of 9...
- Page 2 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 1. Objective This instruction manual has an objective to assemble the mounting kit correctly onto a Volvo V90/XC90. Those supports has to be assembled to the integrated roof tails of the vehicle. The wanted lightbar will be placed on this mounting kit.
- Page 3 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 10166 Hexagon Head Bolt DIN933 A3-1 M6X30 INOX 70 10361 Plain Washer DIN 125A A3-1 M6 RVS/Inox 10165 Hexagon Head Bolt DIN933 A3-1 M6X20 INOX 8.8 10384 Prevailing Torque type Hexagon nut DIN985 (1987)
- Page 4 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 3. Preparation a. Rubber strips i. TDLAR012002.01 with 15673 (2x) ii. TDLAR012001.01 with 15492 (2x) Page 4 of 9...
- Page 5 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 b. Roof rail support (2x) Use the following items: TDLAR012001.01 TDLAR012002.01 2x 10361 Plain Washer M6 2x 10166 Hexagon head bolt M6x30 Attention: Do not tighten the bolts Page 5 of 9...
- Page 6 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 c. Mounting support (2x) 2x 10165 2x 10384 bolt M6x20 nut M6 2x 10361 2x 10362 washer M6 washer M6 2x 15580 washer 3xd M6 Page 6 of 9...
- Page 7 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 4. Placement on vehicle Determine the location of the lightbar on the roof of the car. Both supports are heading towards the middle of the roof. Tighten the bolts below with a torque wrench (8Nm)
- Page 8 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 Adjust the height by moving the roof rail support like below. Tighten the bolt with a torque of at least 9,2Nm and max 9,9Nm Page 8 of 9...
- Page 9 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Lightbar 15078 Place the lightbar on the 2 mounting kits. Mount the lightbar using the delivered mechanical fasteners like the picture below: Delivered Fasteners Bolt 5/16-18 Washer 5/16 Delivered Fasteners Washer 5/16 Nut 5/16-18...
