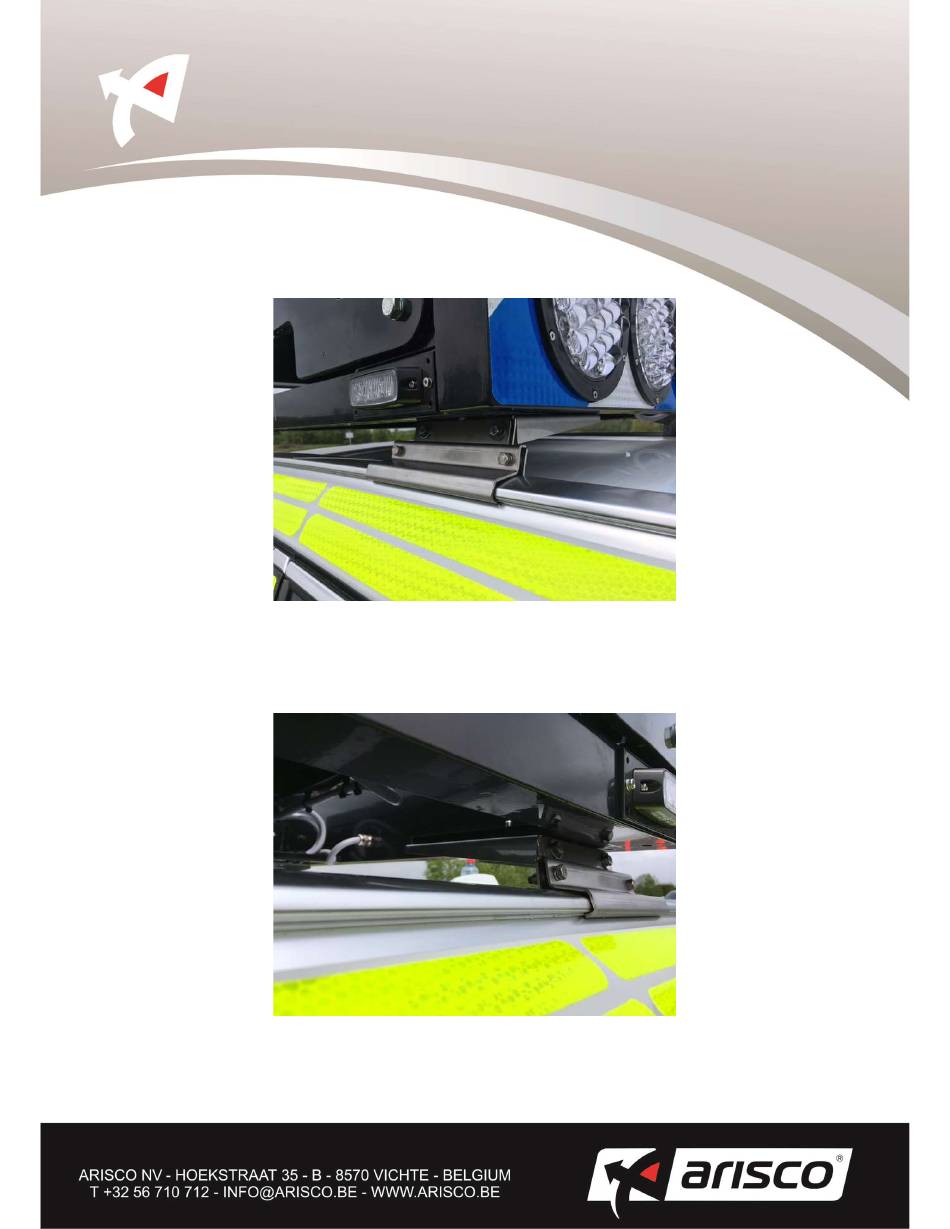

- Page 1 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 Page 1 of 13...
- Page 2 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 1. Objective This instruction manual has an objective to assemble the mounting kit correctly onto a Volvo V90/XC90. Those supports has to be assembled to the integrated roof tails of the vehicle. The wanted signalling panel will be placed on this mounting kit.
- Page 3 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 10166 Hexagon Head Bolt DIN933 A3-1 M6X30 INOX 70 10361 Plain Washer DIN 125A A3-1 M6 RVS/Inox 10165 Hexagon Head Bolt DIN933 A3-1 M6X20 INOX 8.8 10384 Prevailing Torque type Hexagon nut DIN985 (1987)
- Page 4 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 3. Preparation a. Rubber strips i. TDLAR012002.01 with 15673 (4x) ii. TDLAR012001.01 with 15492 (4x) Page 4 of 13...
- Page 5 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 b. Roof rail support (4x) Use the following items: TDLAR012001.01 TDLAR012002.01 2x 10361 Washer M6 2x 10166 Bolt M6x30 Attention: Do not tighten the bolts Page 5 of 13...
- Page 6 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 a. Mounting support (4x) 2x 10165 2x 10384 bolt M6x20 nut M6 2x 10361 2x 10362 washer M6 washer M6 2x 15580 washer 3xd M6 Cut off 8 strips of 150mm x 50mm from Article Code 16308...
- Page 7 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 Place the rubber strips on the following location on top of the mounting brackets. Page 7 of 13...
- Page 8 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 4. Placement on the vehicle Determin the location on top of the vehicle. Distance between center mounting bracket and back of the signalling panel is 127,75mm Distance between center mounting bracket and end of roof rail is 85mm...
- Page 9 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 Both supports are heading towards the middle of the roof. Distance exterior brackets: 955mm Distance interior brackets: 615mm Page 9 of 13...
- Page 10 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 Tighten the bolts below with a torque wrench (8Nm) Page 10 of 13...
- Page 11 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 Adjust the height by moving the roof rail support like below. Tighten the bolt with a torque of at least 9,2Nm and max 9,9Nm Page 11 of 13...
- Page 12 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 Place the dignalling panel on the 4 mounting kits. Page 12 of 13...
- Page 13 Instruction Manual Mounting Kit Volvo V90/XC90 ↔ Arrow 6 15078 Mount the signalling panel using the following mechanical fasteners like the picture below: 2x 10171 Bolt M8x30 2x 18004 Spring Lock M8 2x 15199 Washer M8 2x 15199 Washer M8...
