Superior Electric STABILINE DIN2R-40 Series Owner's Manual

STABILINE® Transient Voltage Surge Suppressors
Thank you for purchasing the DIN2R-40 Series
STABILINE Transient Voltage Surge Suppressor
... another Superior product!!
Expect exceptional performance. The unit is built
to the highest standards for your complete satis-
faction.
To assure many years of uninterrupted service,
please read this Owners Manual to familiarize
yourself with the operation and proper installation
of the DIN2R-40 Series unit.
DIN2R-40 Series STABILINE
technology Class II, Category B Surge Protective Devices suitable for use in AC electrical power systems for
protection against surge and transient activity. DIN2R-40 Series protectors provide 40 kA Surge Amp Capacity
protection in a maintenance free, low profi le, DIN Rail mountable module. DIN2R-40 Series feature a replaceable
plug-in surge protection module and fi xed base which allows for easy and fast maintenance.
MODEL NUMBER & Typical System Voltage / Service Confi gurations
STABILINE
Model System Voltage / Service Configuration
1 Ø, 120 VAC, 2-Wire, w/ground
DIN2R-40-120-L1
1 Ø, 120/240 VAC, 3-Wire SPLIT-PHASE, w/ground
3 Ø, 208Y/120 VAC, 4-Wire WYE, w/ground
1 Ø, 220 VAC, 2-Wire, w/ground
DIN2R-40-220-L1 3 Ø, 380Y/220 VAC, 4-Wire WYE, w/ground
1 Ø, 277 VAC, 2-Wire, w/ground
DIN2R-40-277-L1
3 Ø, 480Y/277 VAC, 4-Wire WYE, w/ground
1 Ø, 480 VAC, 2-Wire, w/grounded neutral
DIN2R-40-480-L1
3 Ø, 380 or 480 VAC, 3-Wire DELTA
DIN2R-40-NG1 120, 120/240, 220, 277, 380, 480 VAC Neutral to Ground
For a minimum of (20) 8 x 20usec surges
1
2 UL 1449 2nd Edition, (6kV, 500A 8 x 20usec) Surge Voltage Rating
3
C3 Combination Wave, 20kV, 8 x 20usec, 10 kA

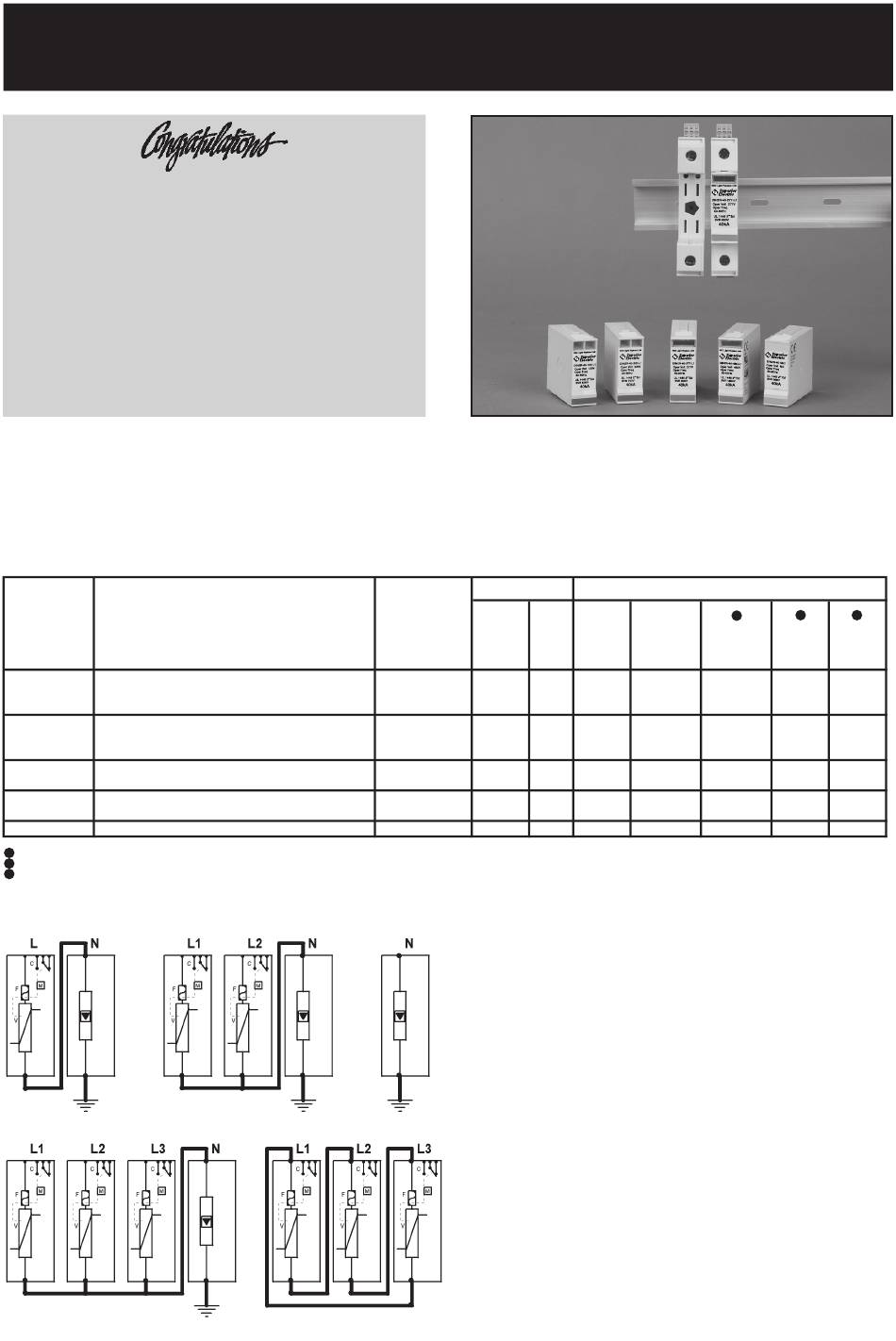

TYPICAL SERVICE CONFIGURATIONS

1 Ø, 2-Wire, w/ground
3 Ø, 4-Wire WYE, w/ground
DIN2R-40 Series - OWNERS MANUAL
®
Transient Voltage Surge Suppressors are single pole, parallel-connected, MOV
Typical
3 Ø, 220 VAC, 3-Wire DELTA
Contact Factory for addititional confi gurations
1 Ø, 120/240 VAC, 3-Wire
SPLIT-PHASE, w/ground
3 Ø, 3-Wire DELTA
Protector Quantity
Protection Mode
Line
Voltage
L-N, N-G 1
L-N / L-N, N-G 2
L-N / L-N / L-N, N-G 3
L-N, N-G 1
L-N / L-N / L-N, N-G 3
L-L / L-L / L-L 3
L-N, N-G 1
L-N / L-N / L-N, N-G 3
L-L, N-G 1
L-L / L-L / L-L 3
N-G N/A

SPECIFICATIONS

Electrical Specifi cations
Modes of Protection: L-N; L-G; L-L protectors use MOV technology
and N-G protector use Gas Tube.
Input Power Frequency: 47-64 Hz
Associated Fusing: DIN2R-40 protectors incorporate an internal thermal
disconnect system with time-delayed Class J,30A-125A over current fuses.
Environmental Specifi cations
Operating Temperature: -40° C to 85° C (-40° F to 185° F)
Relative Humidity: 5% to 95% non-condensing
Max. Operating Altitude: 4,000 meters (13,000 feet)
Mechanical Specifi cations
Neutral to Ground
Enclosure: IP20 enclosures (UL94V0 thermoplastic housing material).
Replaceable plug-in surge protection module and fi xed base.
Mounting: Din Rail 35mm symmetrical
Connection Method: Screw terminal # 4 - 10 AWG
Size (H x W x D): 3.5 x .71 x 2.63 inches (90.0 x 18.0 x 67 mm)
Weight (Shipping): 0.25 lbs (0.11 kg)
General Specifi cations
Standards Compliance and Safety Approvals: Meet UL 1449, 2nd Edition,
EN61643-11 (Europe), ANSI/IEEE C62.41-2002, NF EN 61643-11 (France),
VDE0675-6, CSA-22.2 and CE marked.
Warranty: Ten Years
Surge Performance Specifications
Max Surge
N-G MCOV Nominal Surge
Current Rating
Current Rating
1
150 VAC 40 kA
1
1
1
1 255 VAC 40 kA
N/A
1
320 VAC 40 kA
1
1
550 VAC 40 kA
N/A
1 600 VAC 40 kA
1 2 3
C3 Comb
UL 1449
Wave
SVR Rating
20 kA 500 VAC 500 VAC
20 kA 700 VAC 900 VAC
20 kA 800 VAC 1000 VAC
20 kA 1800 VAC 2100 VAC
20 kA 800 VAC 500 VAC
