Parker Pneumatic MPS-1 Series Installation & Service Instructions

WARNING
!
To avoid unpredictable system behavior that can cause personal injury
and property damage:
• Disconnect electrical supply (when necessary) before installation,
servicing, or conversion.
• Disconnect air supply and depressurize all air lines connected to
this product before installation, servicing, or conversion.
• Operate within the manufacturer's specified pressure, temperature,
and other conditions listed in these instructions.
• Medium must be moisture-free if ambient temperature is below
freezing.
• Service according to procedures listed in these instructions.
• Installation, service, and conversion of these products must be
performed by knowledgeable personnel who understand how
pneumatic products are to be applied.
• After installation, servicing, or conversion, air and electrical
supplies (when necessary) should be connected and the product
tested for proper function and leakage. If audible leakage is present,
or the product does not operate properly, do not put into use.
• Warnings and specifications on the product should not be covered
by paint, etc. If masking is not possible, contact your local
representative for replacement labels.
Introduction
Follow these instructions when installing, operating, or servicing
the product.
ANSI
Cautions
!

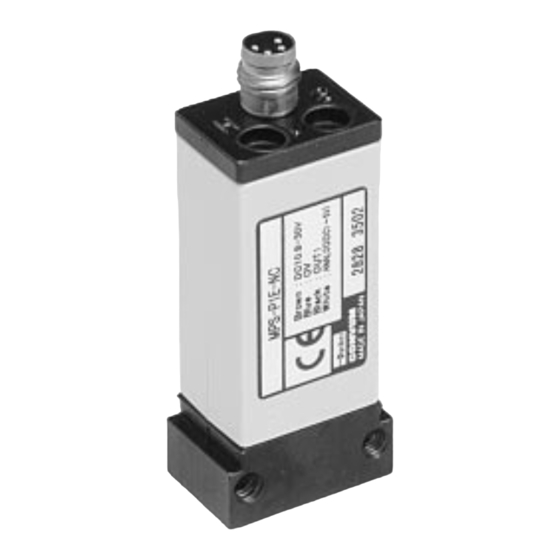

The MPS-1 Pressure Sensor is designed to monitor pressure
and is not a safety measure to prevent accidents.
The compatibility of the sensor is the responsibility of the designer
of the system and specifications.
Potentiometer for the Switch Point Pressure and Hysteresis Range
is sensitive. Excessive force or exceeding the limits of the trim-
mers may cause damage.
Operating Environment
•
Parker / Convum Sensors have not been investigated for
explosion-proof construction in hazardous environments.
•
Do not use with flammable gases, liquids, or in hazardous
environments.
•
Avoid installing the sensor in locations where
excessivevoltage surges could damage or affect the
performance of the sensor.
Installation
•
Never insert an object into the pressure port other than an
appropriate fluid connector.
•
Avoid short-circuiting the sensor. Connect the brown lead
to V+ and blue lead to 0V.
•
Do not connect the output lead wires (black / white) to the
power supply.
Pneumatic Division
Richland, Michigan 49083
Installation & Service Instructions
CVM-101P
MPS-1 Series Sensor
ISSUED: June, 2003
Supersedes: July, 2002
Doc.# CVM-101P, ECN030385, Rev. 2
•
Outputs not being used should be trimmed and insulated.
•
Install using the metal mounting base.

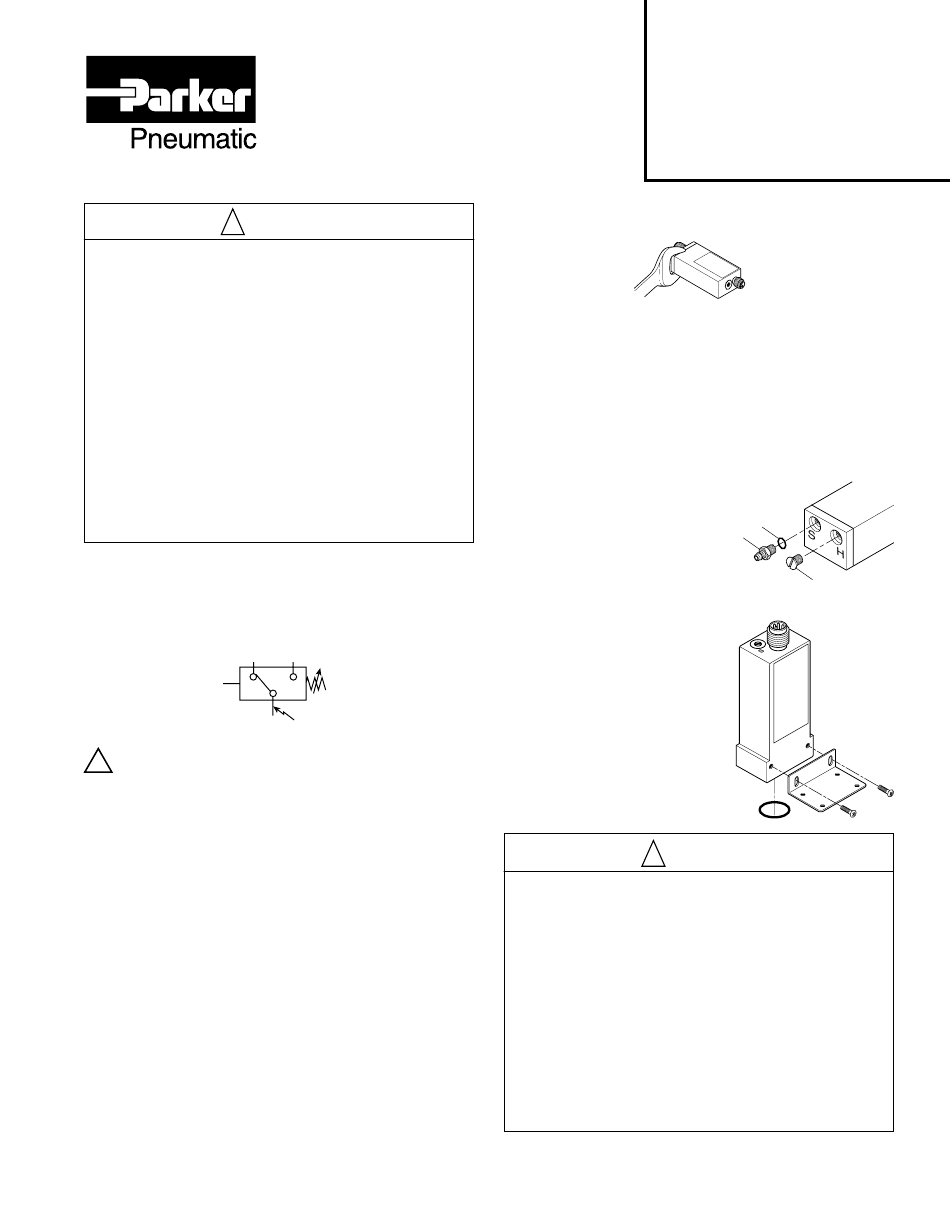

For 1/8 Inch Male Series Installation
•
To achieve IP65 rating, connect the o-ring and barb to a
normal environment with a 2mm I. D. tube and install screw
as shown below.
MPS-1 Assembly (Included Parts)
IP65 Kit
2 O-Rings
1 Venting Nipple M3
1 Set Screw
Flange Mounting Bracket Kit
Mounting Bracket
2 Screws
1 O-Ring
WARNING
!
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF
THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR
RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND
PROPERTY DAMAGE.
This document and other information from Parker Hannifin Corporation,
its subsidiaries and authorized distributors provide product and/or
system options for further investigation by users having technical
expertise. It is important that you analyze all aspects of your application,
including consequences of any failure and review the information
concerning the product or systems in the current product catalog. Due
to the variety of operating conditions and applications for these products
or systems, the user, through its own analysis and testing, is solely
responsible for making the final selection of the products and systems
and assuring that all performance, safety and warning requirements
of the application are met.
The products described herein, including without limitation, product
features, specifications, designs, availability and pricing, are subject
to change by Parker Hannifin Corporation and its subsidiaries at any
time without notice.
EXTRA COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FOR
INCLUSION IN EQUIPMENT / MAINTENANCE MANUALS THAT UTILIZE
THESE PRODUCTS. CONTACT YOUR LOCAL REPRESENTATIVE.
O-Ring
Barb
Coupling
Screw
