User Guide

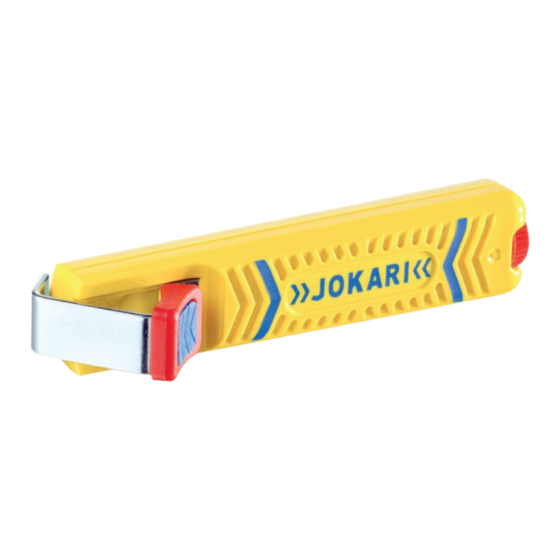

Cable stripper for quick, precise sheathing stripping of all common
round cables from 4-16 mm ø. To adjust the depth of cut for insulation
thickness turn screw at end of handle.
10160
No. 16 Secura
10162
No. 27 Standard
10270
No. 27 Secura
10271
No. 27 ISO
10272
No. 27 Standard
10280
No. 28 H Secura
10281
No. 28 G Secura
10282
No. 28 H Standard
10285
No. 28 G Standard
10350
No. 35 Standard
10500
No. 50 Standard
10700
No. 70 Standard
Warning: Never use tool on or near live electrical circuits!
A
Adjust blade cutting depth by turning the red
adjustment screw.
B
Press tool against cable as shown, exerting light
pressure with your thumb.
C
Rotate to execute one or two circular cuts.
D
Pull tool in direction of arrow to execute a
longitudonal cut.
E
E
Peel off the sheathing. Finished!
100% made in Germany
Cable Stripper
No. 10160 - 10700
Advertisement
Related Manuals for Jokari 10160
Summary of Contents for Jokari 10160
- Page 1 100% made in Germany User Guide Cable Stripper No. 10160 - 10700 Cable stripper for quick, precise sheathing stripping of all common round cables from 4-16 mm ø. To adjust the depth of cut for insulation thickness turn screw at end of handle.
- Page 2 No. 28 H Secura Video Blade exchange 10281 No. 28 G Secura Each Original-JOKARI Cable Knife is supplied with a spare blade stored inside. Additional 10282 blades are available as a set of 3, part no. 19000. No. 28 H Standard The blades fit all Original-JOKARI Cable Knives.
