Introduction

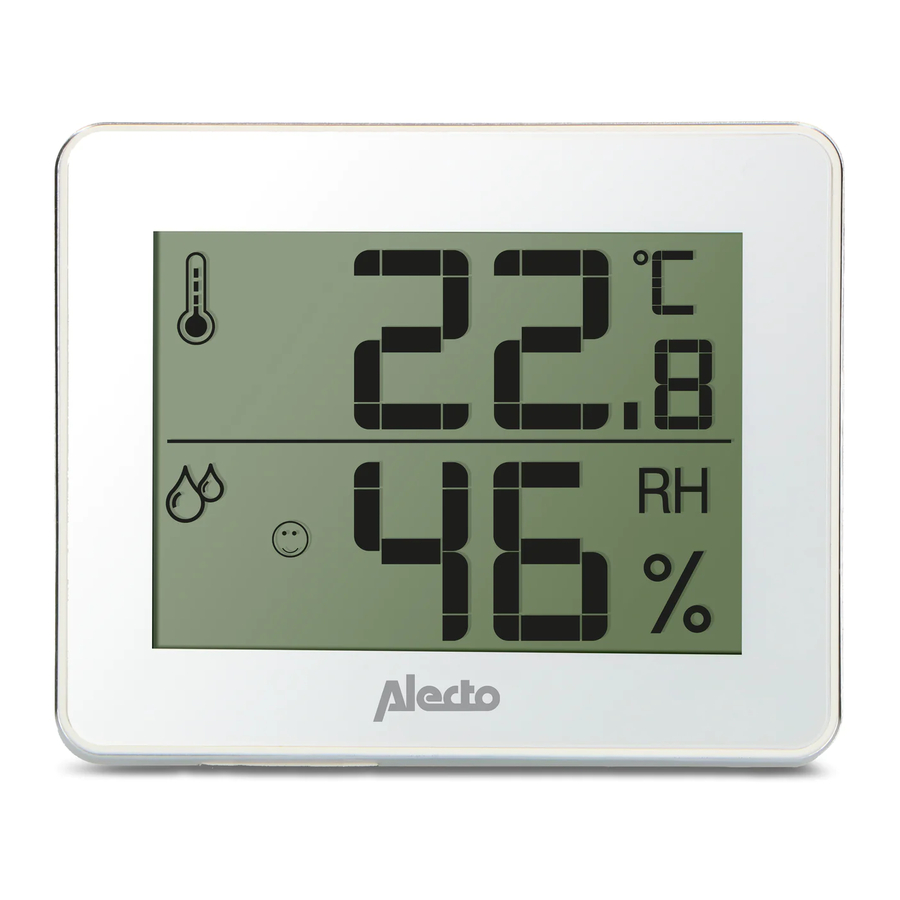

The WS-55 is a thermometer / hygrometer for use at home. The WS-55 is not waterproof.

Intended use

The WS-55 is only intended for displaying the temperature and humidity in private spaces. The WS-55 is not suitable for professional purposes.

About this user's manual

warning This symbol indicates a warning. To ensure safe use, always follow the instructions provided in this documentation.

informationThis symbol is followed by a user tip.
Always consult the Alecto website for the most recent version of this user's manual.

User tips

Keep in mind that an accurate temperature and humidity can only be displayed correctly after the WS-55 has been in the concerned space for several hours.

information To avoid an incorrect display, don't place the WS-55 in direct sunlight or near lights or other heat sources.

Power supply

The WS-55 is powered by a CR-2025 button cell battery. The battery installed by the factory is activated by pulling away the isolation strip.

A nearly exhausted battery is indicated by the appearance of the "XX" symbol. Replace the battery by sliding out the battery holder and placing a new battery into the holder.

information Please note that the battery only fits in one way, follow the + and - markings inside the holder.

Environment


This product may not be discarded as normal household waste at the end of its life span, you must bring it to a collection point for the recycling of electric and electronic devices.

warning Don't throw away exhausted batteries, but bring them to your local depot for Small Chemical Waste (SCW).

Operation

In standby mode, the display shows the temperature and humidity of the space where the WS-55 is located.

Press the °C / °F button at the back of the unit to switch the temperature display between degrees Celsius and degrees Fahrenheit.

Briefly press the MAX/MIN button at the back of the unit to display the measured maximum values. Press again to display the measured minimum values. Press the button a 3rd time to display the actual values.

Press and hold the MIN/MAX button for 3 seconds to reset the minimum and maximum values.

Comfort indication

The WS-55 shows the comfort level as follows:

too dry (humidity <40%)
optimal (humidity 40%~70% / temperature 20°C~25°C)
too humid (humidity >70%)

There's no comfort indication at humidity 40%~70% and temperature < 20°C or >25°C.

Frost alert

The frost alert icon "XX" appears when the temperature in the space is between 4°C and -1.0°C.

Technical specifications

Measurement range: -20°C tot +60°C (-4°F tot +140°F)

Accuracy:
±1°C (between 0°C and +40°C)
±2°C (between +40°C and +50°C)

Humidity: 20 to 95% relative

Accuracy:
±5% (between 40% and 80%)
±8% (<40% and >80%)

LL.L indication: measurement values are too low
HH.H indication: measurement values are too high

WWW.ALECTO.NL
