Alecto BC-19 - Thermometer Manual

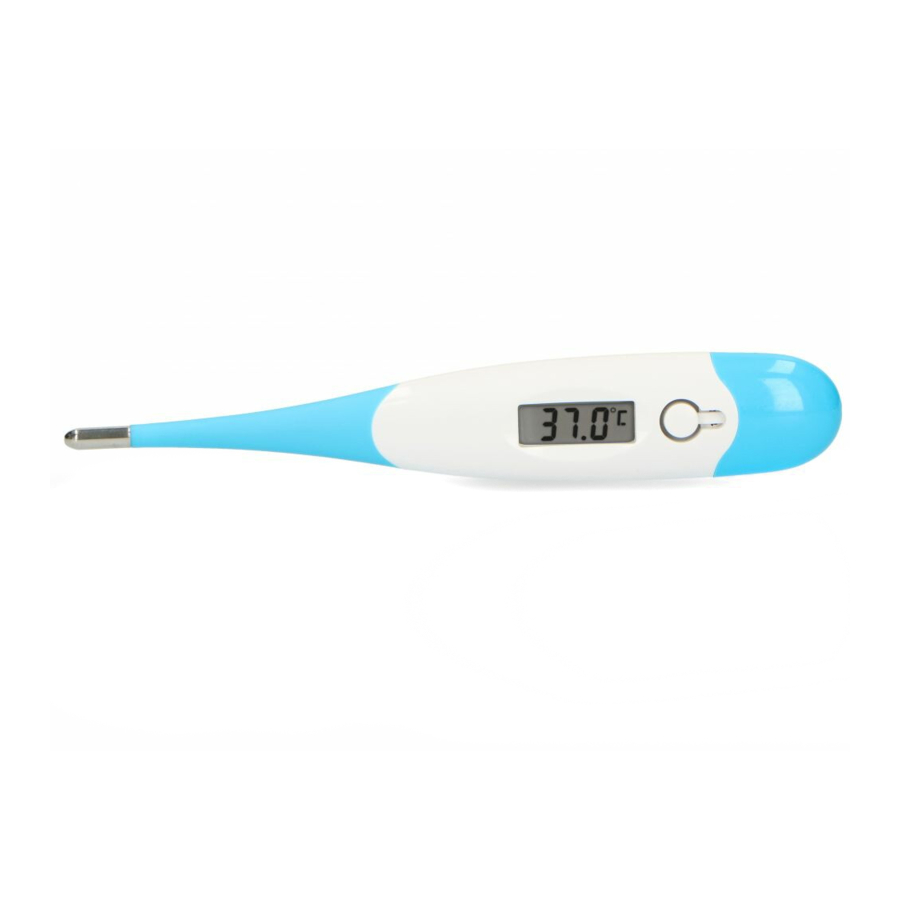

OVERVIEW

1. temperature sensor
2. display
3. on/start/stop/memory/off button

INTRODUCTION

This Alecto BC-19 thermometer is a digital thermometer developed to take your temperature as simply and accurately as possible. In order to get the most reliable results, these instructions must be followed accurately. For the most accurate temperature reading, we recommend using the thermometer rectally. Although the generally accepted 'normal' temperature is 37.0°C, body temperature can vary from 36.1°C to 37.2°C.
Fluctuations in temperature can be due to activities such as sports, smoking, eating and drinking, and also depend on the part of the body where the temperature is taken. When measured orally, the body temperature is generally 0.5°C lower than when measured rectally, while a temperature measured under the armpit is 1.0°C lower. Your temperature is lower in the morning than in the evening.

SPECIFICATIONS

Temperature range: 32.0°C - 42.9°C
Low temperature display: temperature ≤ 32°C, display: Lo°C
High temperature display: temperature ≥ 42,9°C, display: HI°C
Display resolution: 0.1°C
Accuracy: 35,5°C - 42.9°C: ± 0.1°C
≤ 35,5°C ≥ 42°C: ± 0.2°C
Normal temperature ≤ 37.8°C: 10 beeps
Fever alarm ≥ 37.8°C: 10x3 beeps
Auto-OFF: 10 minutes ± 2 minutes
Battery: LR41, 192 or SR41
Power consumption: 0,15 mW
Battery life: 2 years
Dimensions: 136 x 22 x 14,5mm
Weight: ±14 gr (batt incl.)
Conditions for use:
Temperature: 10°C - 35°C
Humidity: 25% - 80% RH
Storage conditions:
Temperature: -25°C - 55°C
Humidity: 25% -80% RH

MEASURING YOUR TEMPERATURE

*: If the room temperature is higher than 32.0°C, the room temperature will be shown instead of 'Lo'.

Measurement under the tongue:
Place the mometer under the tongue, as far back as possible to the left or right.
A temperature taken under the tongue is approx. 0.5°C lower than when taken rectally.

Measurement under the arm
Make sure the armpit is dry and place the thermometer under the arm. The sensor must touch the skin. Keep your arm crossed in front of your chest. A temperature taken under the tongue is approx. 1.0°C lower than when taken rectally.

Rectal measurement
Insert the thermometer sensor gently (maximum 1.25 cm).

BATTERY LOW

The battery is low when the symbol appears in the display.
The battery cannot be replaced. Please replace the complete thermometer.

DISPOSAL OF THE DEVICE

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments.

ADVICE AND WARNINGS

STORAGE AND CLEANING

Clean the thermometer before and after use, using a soft cloth and alcohol, or cold soapy water. The thermometer may be briefly immersed in water or alcohol (do not soak or sterilise). Store the thermometer in the special case.

CE
The declaration of conformity is available at: http://DOC.hesdo.com/BC-19-DOC.pdf
