LG LRMVC2306D Owner's Manual

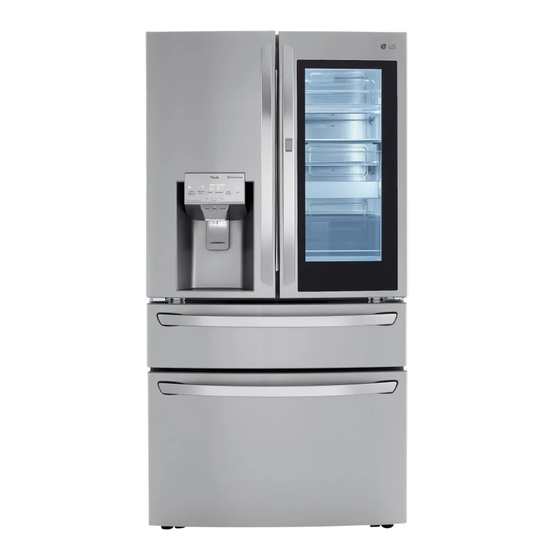

French door refrigerator
Hide thumbs Also See for LRMVC2306D:
Table of Contents

Advertisement

Quick Links

Scan to see the online manual.
OWNER'S MANUAL
FRENCH DOOR
REFRIGERATOR
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
LRMDS3006* / LRMVS3006* / LRMDC2306* / LRMVC2306* / LLMXS3006* /
LRMXS3006*
www.lg.com
MFL69497032
Copyright © 2020-2023 LG Electronics Inc. All Rights Reserved.
Rev.10_010423

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRMVC2306D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG LRMVC2306D

Summary of Contents for LG LRMVC2306D

  • Page 1 Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH LRMDS3006* / LRMVS3006* / LRMDC2306* / LRMVC2306* / LLMXS3006* / LRMXS3006* www.lg.com MFL69497032 Copyright © 2020-2023 LG Electronics Inc. All Rights Reserved. Rev.10_010423...

  • Page 2: Table Of Contents

    In-Door Ice Bin Automatic Icemaker Storing Food Humidity Controlled Crispers Refrigerator Shelves InstaView Door-in-Door Door Bins Durabase Full-Convert Drawer 40 SMART FUNCTIONS LG ThinQ Application Smart Grid Function Smart Diagnosis Feature 45 MAINTENANCE Cleaning Air Filter Water Filter 50 TROUBLESHOOTING...

  • Page 3: Read All Instructions Before Use

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS • Do not bend or pinch the power cord excessively or place heavy objects on it. Operation • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments;...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Maintenance • Do not use a hair dryer to dry the inside of the refrigerator. • Do not light a candle to remove odors in the refrigerator. • In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS CAUTION CAUTION • To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation • Do not install the refrigerator where there may be a danger of the unit falling. •...

  • Page 7: Product Overview

    PRODUCT OVERVIEW PRODUCT OVERVIEW Product Features The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes. Exterior Control Panel Sets the refrigerator temperature and freezer temperature, the water filter condition and the dispenser mode.
  • Page 8 PRODUCT OVERVIEW Interior Standard Door : LLMXS3006* / LRMXS3006* Door-in-Door: LRMDS3006* / LRMDC2306*...
  • Page 9 PRODUCT OVERVIEW InstaView Door-in-Door: LRMVS3006* / LRMVC2306* LED Interior Lighting Lights up the inside of the refrigerator. Air Filter Reduces odors inside the refrigerator compartment. In-Door Icemaker (Refrigerator) This is where ice is automatically produced and stored. Door Mullion Prevents the cold air in the refrigerator from escaping when the doors are closed. CAUTION •...
  • Page 10 10 PRODUCT OVERVIEW Cheese & Butter and Condiment Bins Cheese & Butter and Condiment bins are specially designed for these items, making spreading butter and slicing cheese easier. Adjustable Refrigerator Shelf The refrigerator shelves are adjustable to meet individual storage needs. Folding Shelf Store taller items, such as gallon containers or bottles, by pushing the front half of the shelf underneath the back half of the shelf.

  • Page 11: Installation

    INSTALLATION INSTALLATION Before Installing Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. Unpacking the Refrigerator Choosing the Proper Location Disassembling/Assembling Connecting the Water Line Leveling and Door Alignment WARNING •...

  • Page 12: Choosing The Proper Location

    12 INSTALLATION Unpacking the Refrigerator kPa), you can install a booster pump to compensate for the low pressure. WARNING • Use two or more people to move and install the refrigerator. Failure to do so can result in back Electricity injury or other injury.
  • Page 13 INSTALLATION Dimensions and Clearances • Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrigerator through doors or narrow openings. • If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/ Assembling the Doors and Drawers in this manual.

  • Page 14: Removing/Assembling Handles

    14 INSTALLATION Removing/Assembling Assembling Refrigerator Handles Handles If needed, reassemble the mounting fasteners on the door with a 1/4 in. Allen These instructions are for models which ship with wrench. the handles assembled. For models shipped with the handles disassembled, follow the instructions included in the handle package.

  • Page 15: Removing/Assembling Doors And Drawers

    INSTALLATION Place the handle on the door by fitting the located at the bottom of the front side of the cover handle footprints over the mounting with a flat-head screwdriver. fasteners and tightening the set screws with a 3/32 in. Allen wrench. •...
  • Page 16 16 INSTALLATION Rotate the hinge lever counterclockwise. Lift the top hinge free of the hinge lever latch CAUTION • When lifting the hinge free of the latch, be careful that the door does not fall forward. Rotate the hinge lever clockwise.
  • Page 17 INSTALLATION • Be careful of sharp hinges on both sides of the Grip both sides of the drawer and pull it up to drawer. remove it from the rails. • When you lay the drawer down, be careful not to CAUTION damage the floor.
  • Page 18 18 INSTALLATION Assembling the Freezer Drawer Pull out both rails simultaneously, until they are fully extended. Insert the drawer into the frame, and push the drawer back until it clicks into place. Grasp the drawer on each side and hook the drawer supports into the rail tabs located on both sides.
  • Page 19 INSTALLATION Pull the drawer open to full extension. Lower the basket onto the rails. NOTE • The number of wire harnesses may vary depending on the model. Assembling the Right Refrigerator • Ground wire is only present on some models. Door CAUTION Assembling the Left Refrigerator...

  • Page 20: Connecting Refrigerator To Water Supply

    20 INSTALLATION Assembling the Hinge Cover Position the hinge cover in its place. Insert and tighten the cover screws. Push the water supply lines into the hole on the top case and pull them through the Connecting Refrigerator to backplate. Water Supply Before Beginning These instructions assume you have an existing...
  • Page 21 INSTALLATION (takes more than 4 seconds to fill a cup of 7 oz or • Be sure there is sufficient extra tubing (about 8 198 cc capacity): ft. coiled into three turns of about 10 in. diameter) to allow the refrigerator to move out •...

  • Page 22: Leveling And Door Alignment

    22 INSTALLATION Remove the flexible plastic cap from the water Turn the leveling leg to the left to raise that valve on the refrigerator. side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator.

  • Page 23: Turning On The Power

    INSTALLATION the height. Turn the nut to the right to raise the While the door is lifted, have an assistant door or to the left to lower it. insert the snap ring on the middle hinge. The snap ring may differ depending on the model. •...
  • Page 24 24 INSTALLATION CAUTION • Connect to a rated power outlet. • Have a certified electrician check the wall outlet and wiring for proper grounding. • Do not damage or cut off the ground terminal of the power plug. Position the Refrigerator •...

  • Page 25: Operation

    OPERATION OPERATION Before Use Checklist Clean the refrigerator. Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping. CAUTION • Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator.

  • Page 26: Control Panel

    26 OPERATION Control Panel Depending on the model, some of the following functions may not be available. The actual control panel may differ from model to model. Control Panel Features Ice Plus This function increases both ice making and freezing capabilities. Press the Ice Plus button to illuminate the icon and activate the function for 24 hours.
  • Page 27 Wi-Fi The Wi-Fi button, when used with the LG ThinQ app, allows the refrigerator to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the application. icon shows the status of the refrigerator's network connection. The icon illuminates when the refrigerator is connected to the Wi-Fi network.

  • Page 28: Sabbath Mode

    28 OPERATION Press the Freezer button repeatedly to toggle between the 3 ICE and 6 ICE modes. After 5 seconds of idle time, the last mode set will be saved, and the display will return to normal. NOTE • For more ice, select the 6 ICE mode. For clearer ice, select the 3 ICE mode. NOTE Display Mode and InstaView Display Mode (For Store Use Only) •...

  • Page 29: Ice And Water Dispenser

    60 seconds OFF. This is also necessary if the refrigerator has not been used for a long time. • If ice or water dispenses unexpectedly, turn off the water supply and contact an LG Electronics Customer Information Center. Using the Measured Fill •...

  • Page 30: In-Door Ice Bin

    Detaching the In-Door Ice Bin CAUTION • Only qualified service personnel from an LG Electronics service center should disassemble or repair the icemaker. In-Door Ice Bin Gently pull the handle to open the ice compartment.

  • Page 31: Automatic Icemaker

    OPERATION Before Using the In-Door Icemaker To remove the in-door ice bin, grip the front handle, slightly lift the bottom, and slowly pull out the bin as shown. NOTE • Ice is made in the automatic in-door icemaker and sent to the dispenser. The icemaker produces 70 - 182 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of...
  • Page 32 32 OPERATION NOTE CAUTION • The amount and shape of ice may vary according • Do not insert round ice into the in-door ice bin, to the environment (ambient temperature as it can damage the ice and water dispenser. around the appliance, frequency of the door being opened, amount of food stored in the appliance, water pressure, etc.).

  • Page 33: Storing Food

    OPERATION • The icemaker water valve buzzes as the CAUTION icemaker fills with water. If the icemaker power button is in the ON position, it will buzz even if it • Do not overfill or pack items too tightly into door has not yet been hooked up to water.

  • Page 34: Humidity Controlled Crispers

    34 OPERATION • Heavy-duty aluminum foil NOTE • Plastic-coated paper • Do not store food with high moisture content • Non-permeable plastic wraps towards the top of the refrigerator. The moisture • Specified freezer-grade self-sealing plastic bags could come into direct contact with the cold air and freeze.

  • Page 35: Refrigerator Shelves

    OPERATION Insert the cover into the refrigerator with both hands and lower it onto the guides. Lift the front of the cover up with both hands Line up the tabs on the Door-in-Door case until it detaches from the back wall of the with the slots on the door and push down cabinet, then pull it out.

  • Page 36: Instaview

    36 OPERATION underneath the back half of the shelf. Pull the front of the shelf forward to return to a full shelf. Pull the shelf out. CAUTION • Glass shelves are heavy. Use special care when removing them. • Do not clean glass shelves with warm water while they are cold.

  • Page 37: Door-In-Door

    OPERATION InstaView Door-in-Door The Door-in-Door compartment allows for easy access to commonly used food items. Knock twice on the glass to turn the LED light inside the InstaView on or off. The LED light turns Door-in-Door Compartment off automatically after 10 seconds. To access the Door-in-Door compartment, lightly press the button on the right refrigerator door handle.

  • Page 38: Door Bins

    38 OPERATION To lower the bin, press the side levers up at thesame time and move the bin down until it clicks into place. To replace the case, line up the tabs on the case with the slots on the door and push down until it snaps into place.

  • Page 39: Durabase

    OPERATION Refrigerator Mode • Do not apply excessive force while detaching or assembling the storage bins. To use the convertible drawer as a refrigerator, press and hold the Select/Freezer button • Do not use the dishwasher to clean the storage repeatedly to toggle through the four temperature bins and shelves.

  • Page 40: Smart Functions

    - This function provides useful information for wireless router manual. diagnosing and solving issues with the appliance based on the pattern of use. • LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, • Settings or errors caused by network connection.
  • Page 41 • Reorient or relocate the receiving antenna. Connecting to Wi-Fi • Increase the separation between the equipment The Wi-Fi button, when used with the LG ThinQ and the receiver. application, allows the appliance to connect to a home Wi-Fi network. The Wi-Fi indicator shows the •...

  • Page 42: Smart Grid Function

    Delay opensource.lge.com. Appliance Load (DAL) or Temporary Appliance LG Electronics will also provide open source code Load Reduction (TALR) mode. to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of...

  • Page 43: Smart Diagnosis Tm Feature

    When you override the Smart Grid function, the LG ThinQ application. refrigerator ignores the Demand Response signal • Launch the LG ThinQ application and select the and is no longer controlled by the utility company Smart Diagnosis feature in the menu. Follow until the next Demand Response signal is sent.
  • Page 44 44 SMART FUNCTIONS Open the right refrigerator door. Hold the mouthpiece of your phone in front of the speaker that is located on the right hinge of the refrigerator door. Press and hold the Freezer button for three seconds while continuing to hold your phone to the speaker.

  • Page 45: Maintenance

    MAINTENANCE MAINTENANCE Cleaning To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 WARNING quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does •...

  • Page 46: Water Filter

    46 MAINTENANCE Water Filter Before Replacing the Water Filter Remove the filter from the inside of the cover by pressing the side of the filter in and pulling WARNING the center out. • To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product.
  • Page 47 30 seconds ON and 60 seconds LT1000PC, LT1000PCS or ADQ747935** OFF. Remove the door bin. CAUTION • LG strongly recommends that you use LG- authorized water filters to prevent water quality issues, water leakage and appliance malfunction. For further assistance, call: Remove the disposable water filter.
  • Page 48 48 MAINTENANCE Performance Data Sheet Model: LT1000P, LT1000PC, LT1000PCS NSF System Trade Name Code: MDJ64844601 The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ ANSI Standard 42, Standard 53 and Standard 401.
  • Page 49 NOTE • While the testing was performed under standard laboratory conditions, actual performance may vary. For replacement filters, visit your local dealer or distributor or search under "water filters" on the lg.com website. For further assistance, contact the LG Electronics Customer Information Center.

  • Page 50: Troubleshooting

    50 TROUBLESHOOTING TROUBLESHOOTING FAQs Frequently Asked Questions What are the best temperature settings for my refrigerator and freezer? The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary to keep food at desired temperatures.
  • Page 51 TROUBLESHOOTING Before Calling for Service Review this section before calling for service; doing so will save you both time and money. Cooling Problem Possible Cause & Solution Refrigerator is not The refrigerator control is set to OFF (some models). cooling or has no •...
  • Page 52 52 TROUBLESHOOTING Problem Possible Cause & Solution Interior moisture Weather is humid. buildup. • Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.
  • Page 53 TROUBLESHOOTING Problem Possible Cause & Solution Refrigerator or Unit is installed in a hot location. Freezer section is too • The refrigerator should not be operated in temperatures above 110 °F (43 °C). warm. A large amount of food or hot food was added to either compartment. •...
  • Page 54 54 TROUBLESHOOTING Problem Possible Cause & Solution Icemaker is not Reverse osmosis filtration system is used. making enough ice. • Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Connecting the Water Line section.) Tubing connecting refrigerator to house supply valve is kinked.
  • Page 55 TROUBLESHOOTING Problem Possible Cause & Solution Ice has bad taste or The ice storage bin needs to be cleaned. odor. • Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it. Icemaker is making Icemaker shutoff (arm/ sensor) is obstructed.
  • Page 56 56 TROUBLESHOOTING Problem Possible Cause & Solution Water is not New installation or water line recently connected. dispensing. • Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.
  • Page 57 TROUBLESHOOTING Problem Possible Cause & Solution Water has bad taste Refrigerator was recently installed. or odor. • Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.
  • Page 58 58 TROUBLESHOOTING Noises Problem Possible Cause & Solution Clicking The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off. • Normal Operation Rattling Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.
  • Page 59 During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones). • Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name. - If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345.
  • Page 60 Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S.
  • Page 61 Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC PROCEDURE FOR RESOLVING DISPUTES: ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION.
  • Page 62 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
  • Page 63 (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https:// www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial Number”).
  • Page 64 ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase.
  • Page 65 (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.
  • Page 66 If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein.
  • Page 67 Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by...
  • Page 68 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...
