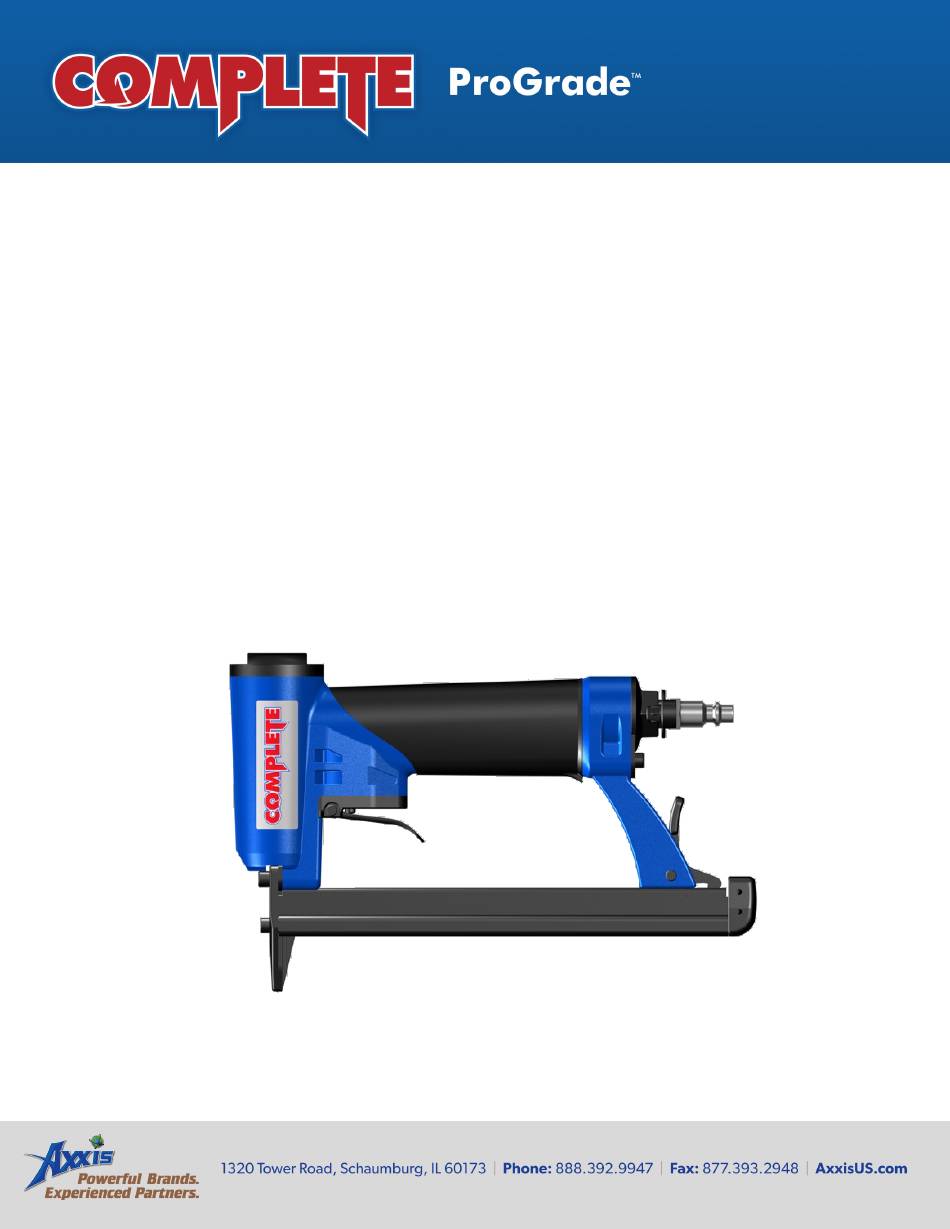

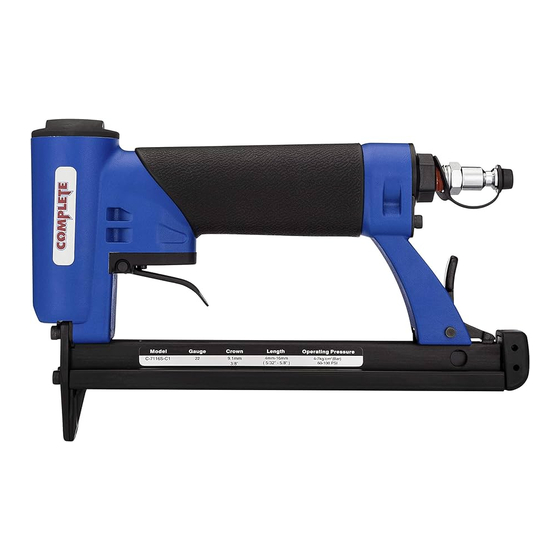

- Page 1 C-8016S - Fine Wire Stapler MANUAL/WARNING: IMPORTANT PLEASE READ BEFORE USING TOOL Please read the following operating instructions manual. Refer to this manual for safety, adjustment and trouble shooting instructions. If you have any further questions please contact your distributor.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE TOOL SPECIFICATION…..………………………………………………………….…… 3 SAFETY INSTRUCTIONS……….……………………………………………………….. 4 COMPRESS AIR SYSTEMS……………………………………………………………... 5 OPERATING INSTRUCTIONS……………….………………………………………….. 6 PRECAUTIONARY MEASURES…...…………………………………………………..7 MAINTENANCE……….……………………………………………………………..……. 8 TROUBLE SHOOTING………………………………………………………..………….. 9 TROUBLE SHOOTING………………………………………………..………………….. 10 EXPLODED VIEW OF TOOL…………………………………..………………………… 12 PARTS LIST…………………………………..…………………………………………… 13 Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 3: Tool Specification
TOOL SPECIFICATIONS MODEL OF TOOL……………..……………………………………….. C-8016S DIMENSIONS (L x H x W) approx……………..……………………... 9.36" x 1.68" x 6.04" WEIGHT（WITHOUT FASTENERS）………..……………………... 1.85 lbs RECOMMENDED OPERATING PRESSURE………..……………... 60-100 PSI NAIL SPECIFICATION……………………..………………………….. 80 Series Fine Wire Stapler NAIL CAPACITY………..………………………………………………. 157 Staples Complete * Schaumburg, IL 60173 * Phone: 888-392-9947... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Use safety glasses: all persons in the work area must always wear safety glasses in order to prevent eye injuries. Ear protection must also be worn to prevent a possible hearing loss. Use clean dry regulated compressed air at the recommended pressure (given in the technical data). Use only fasteners according to manufactures technical data. -
Page 5: Compress Air Systems
COMPRESSED AIR SYSTEM Proper use of the fastener driving tool requires an adequate quantity of clean dry compressed air. All compressed air contains moisture and other contaminants detrimental to the tool and so it is recommended to use an in line lubricator as close to the tool as possible (within 15 feet (4.5m)). The lubricator should be well maintained so as to ensure optimum performance and power. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Loading fasteners Press the latch mechanism and slide back the magazine unit. Load fasteners into the magazine. Close the magazine. Type of actuating and trigger system No Safety: This model stapler is not equipped with a safety. When you pull the trigger a single staple, or series of staples will be fired. -
Page 7: Precautionary Measures
PRECAUTIONARY MEASURES ‘Respect your tool and never horseplay’ - Always assume that the tool contains fasteners. - Remove finger from the trigger when not driving fasteners. Never carry the tool with your finger on the trigger, as the tool will fire a fastener if the trigger is bumped. - Keep tool pointed in a safe direction at all times, never pointing it toward yourself or others whether it contains fasteners or not. -
Page 8: Maintenance
MAINTENANCE 'Clean and inspect your tool every time you use it' The employer and tool operator are responsible for assuring that the tool is kept in safe working order. Furthermore only service personnel trained by the manufacturer, distributor, or employer shall repair the tool. CAUTION Always remove the air supply before commencing any cleaning or inspection. -
Page 9: Trouble Shooting
TROUBLE SHOOTING Failure Possible causes Check Method Counter measures No staple Incorrect staples are loaded. Check if Use recommended staples Abnormal staples are loaded is ejected recommended Remove abnormal staples and load (large-sized head ,bent, etc.) staples are loaded normal staples Magazine Unit Push lever Check for Repair deformed parts... -
Page 10: Trouble Shooting
TROUBLE SHOOTING Failure Possible causes Check Method Counter measures Staples are inaccurately fed into the The driven staple Refer to item above Refer to item above Blade Guide is bent Incorrect staples are loaded Worn driver blade Check if the driver blade is Replace the driver blade extremely worn or not The wood is too hard... - Page 11 NOTES Complete * Schaumburg, IL 60173 * Phone: 888-392-9947...
- Page 14 Visit our web site www.axxisus.com Email us @ reception.inc@axxisus.com...
