KP-GR1-22

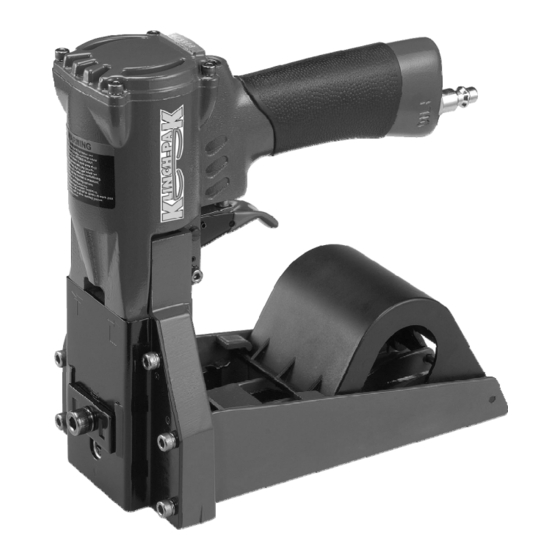

Pneumatic Carton Stapler
MANUAL/WARNING:
IMPORTANT PLEASE READ BEFORE USING TOOL
Please read the following operating instructions manual.
Refer to this manual for safety, adjustment and trouble
shooting instructions. If you have any further questions
please contact your distributor.
1320 Tower Road Schaumburg, IL 60173
Phone:
888-392-9947
Fax:
877-393-2948
Advertisement
Table of Contents
Related Manuals for AXXIS KLINCH-PAK KP-GR1-22
Summary of Contents for AXXIS KLINCH-PAK KP-GR1-22

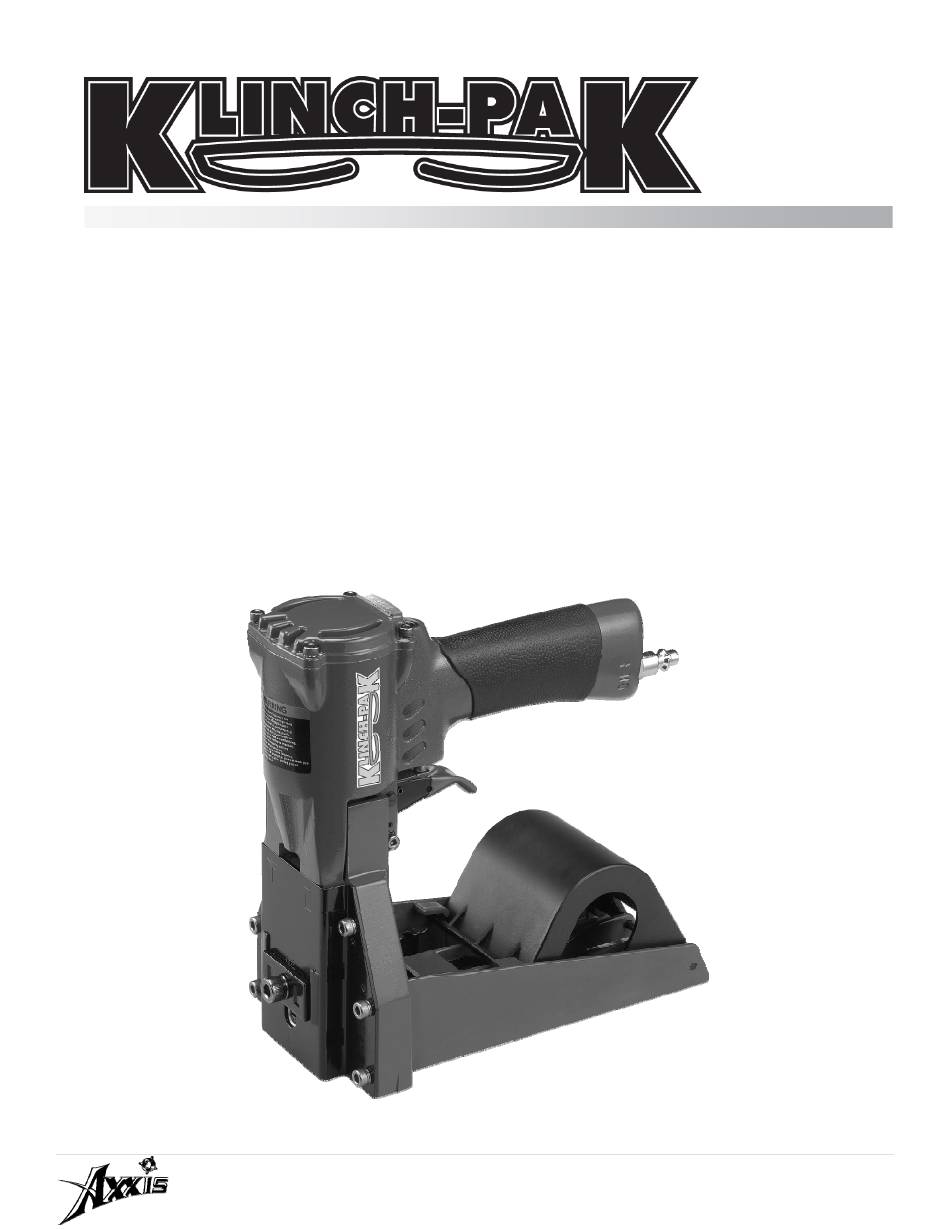

- Page 1 KP-GR1-22 Pneumatic Carton Stapler MANUAL/WARNING: IMPORTANT PLEASE READ BEFORE USING TOOL Please read the following operating instructions manual. Refer to this manual for safety, adjustment and trouble shooting instructions. If you have any further questions please contact your distributor. 1320 Tower Road Schaumburg, IL 60173 Phone: 888-392-9947 Fax:...
- Page 2 NOTES 1320 Tower Road Schaumburg, IL 60173 Phone: 888-392-9947 Fax: 877-393-2948...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE TOOL SPECIFICATIONS ........................4 SAFETY INSTRUCTIONS ........................5 LUBRICATION AND MAINTENANCE ....................6 ADJUSTING FOR STAPLE LEG LENGTH .................... 6 CLINCH ADJUSTMENT .......................... 7 DEPTH ADJUSTMENT ........................... 7 EXPLODED VIEW OF TOOL ........................8 PARTS LIST ............................9 TROUBLE SHOOTING ......................... -
Page 4: Tool Specifications
TOOL SPECIFICATIONS MODEL OF TOOL ………………………………………………..…………….KP-GR1-22 DIMENSIONS （LENGTH x HEIGHT x WIDTH） ..........9.5" x 4.5" x 9" WEIGHT （WITHOUT FASTENERS） ............... 5.3 lbs COMPRESSED AIR： MAXIMUM PERMISSIBLE OPERATING PRESSURE ......90 PSI RECOMMENDED OPERATING PRESSURE ..........71 PSI AIR CONSUMPTION .................. 0.067 M / MIN (2.4 C.F.M) WITH 60 STAPLES PER MINUTE (80 PSI) -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Read this manual and understand all safety instructions before operation of the tool. If • you have any questions, please contact our Authorized Representatives. Never allow use of any type of Flammable Gases or Oxygen as a power source for the •... -
Page 6: Lubrication And Maintenance
LUBRICATION AND MAINTENANCE Your tool requires lubrication before you use for the First Time. • Disconnect the Air Supply from the tool before lubricating • Turn the tool so the inlet is facing up and put one drop of Lubricating Oil into air •... -
Page 7: Clinch Adjustment
CLINCH ADJUSTMENT Disconnect the Air Supply • Use 3mm Rod or 2.5mm Hex Key to turn the collar (006 on Schematic) found in • the front window of the tool. Rotate clockwise for tighter clinch. Counterclockwise for the loose setting. See diagram B. DEPTH ADJUSTMENT Disconnect the Air Supply •... -
Page 10: Trouble Shooting
TROUBLE SHOOTING PROBLEM CAUSE REMEDY O-RING ON VALVE （016）OR AIR LEAKAGE FROM O-RING MUST BE REPLACED ON TUBE（017）ARE TRIGGER . DAMAGED . O-RINGSON VALVE（016）OR AIR LEAKAGE FROM O-RING MUST BE REPLACED ON TUBE（017）ARE EXHAUST PORT . DAMAGED . PISTON’S O-RING（507）IS O-RING MUST BE REPLACED DAMAGED . - Page 11 Products offered by Call today for more details 1320 Tower Road Schaumburg, IL 60173 Phone: 888-392-9947 Fax: 877-393-2948...
