- Page 1 Last updated: 2019-12-13 C2000-A2-SDD6060-CAX User Manual 6DO ← 6AC AC 90-275V Remote I/O Module — AC Digital Input Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-A2-SDD6060-CAX User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 11... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-A2-SDD6060-CAX User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 11...
-
Page 5: Hardware Description
C2000-A2-SDD6060-CAX User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification AC Input AC Channels Connector Terminal block AC Type Wet contact Channel-to-Channel Isolation 1500Vrms Acquisition Frequency 1kHz Logic Logic 0: ≤ 75VAC, Logic 1: 90~275VAC Digital Output DO Channels... -
Page 6: Apprearance
C2000-A2-SDD6060-CAX User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 6 / 11... -
Page 7: Indicators

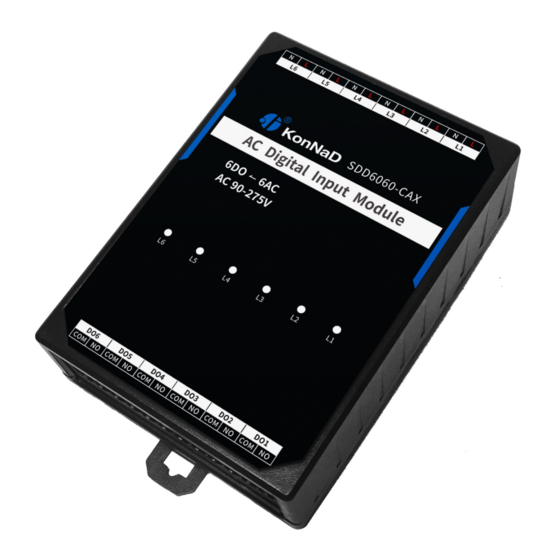

C2000-A2-SDD6060-CAX User Manual 1.3. Indicators Classification Indicator Description Meaning AC Input AC input Steady on：Input voltage more than the threshold voltage indicators (90VAC) Off：Input voltage less than the threshold voltage (90VAC) SinoCon Co., Ltd. www.sinoconsys.com 7 / 11... -
Page 8: Port Description
C2000-A2-SDD6060-CAX User Manual 1.4. Port Description Classification Port Description Recommended wiring AC Input L、N AC live wire, AC neutral wire Digital Output Digital output normally open RVV 2*1.0 Digital output common RVV 2*1.0 SinoCon Co., Ltd. www.sinoconsys.com 8 / 11... -
Page 9: Product Dimensions
C2000-A2-SDD6060-CAX User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 9 / 11... - Page 10 C2000-A2-SDD6060-CAX User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 10 / 11...
-
Page 11: Warranty Policy
C2000-A2-SDD6060-CAX User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
