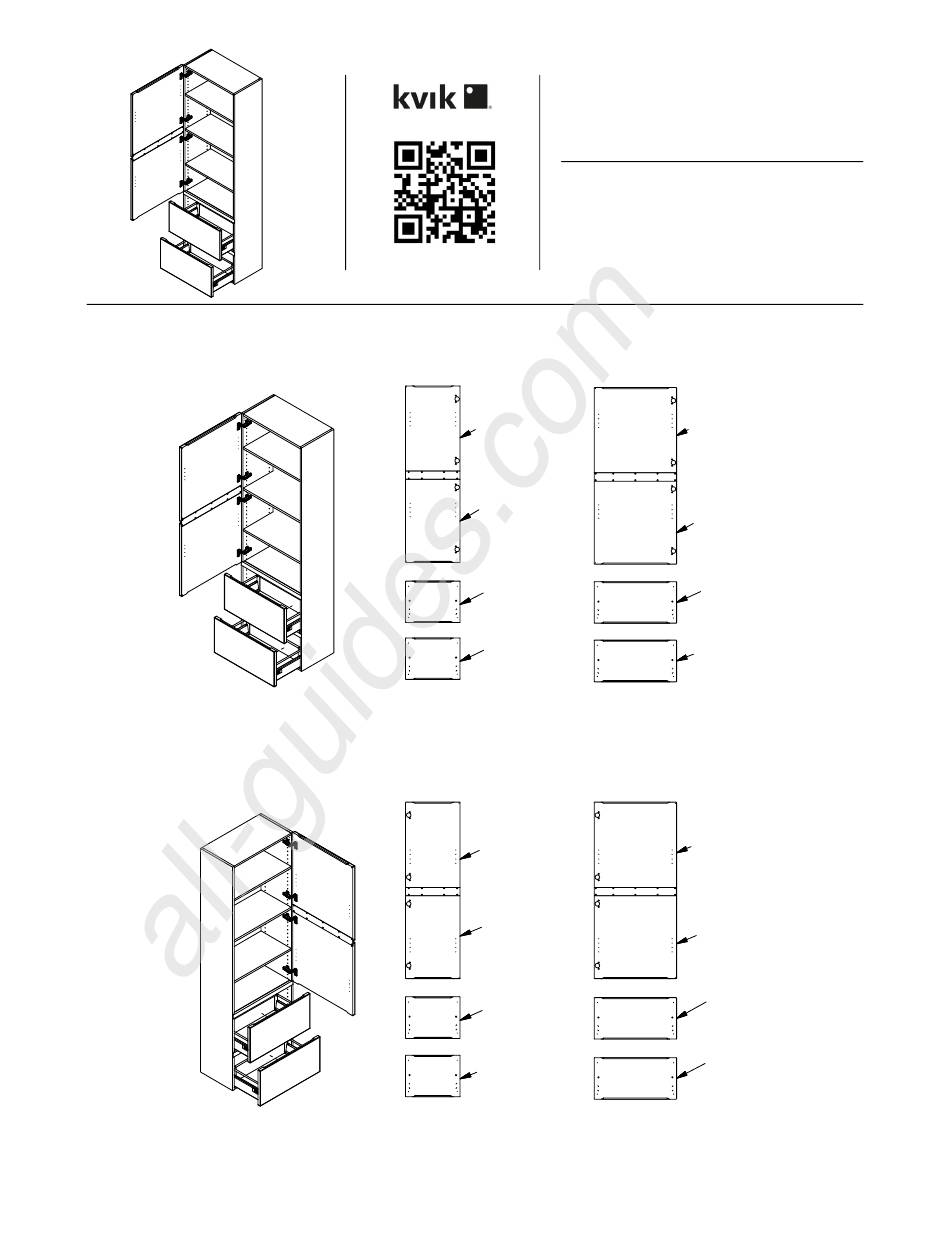

- Page 1 All manuals and user guides at all-guides.com MDSH9220,040-060 Check out easy mounting of you bath Left L12840V L12860V L06441H, mano L06461H, mano Door Mano Door Mano L06243V, mano L06263V, mano Door Mano Door Mano L03060, mano L03040, mano Drawer front Mano...
- Page 2 1 pcs 15 gr 2 pcs (Suspension list) 1 pcs 1 pcs 1 pcs L128*0V / H, mano (Left / Right ) HS19232,000 / KVIK L062*3V, mano L064*1H , Mano (Side) Screw flh BP20XXX 3,5x15 mm L062*3H, mano L064*1V , Mano...
-
Page 3: Side Left
All manuals and user guides at all-guides.com MDSH9220,040-060 FIG. Side Left Screw flh 3,5x15 mm Euro screw 4 pcs 6,3x11 mm 2 pcs Screw flh 3,5x15 mm (Side) Screw flh Euro screw 3,5x15 mm 6,3x11 mm 3 pcs NB!!!! Drawer slide Left... - Page 4 All manuals and user guides at all-guides.com MDSH9220,040-060 FIG. Side Left Euro screw Shelf support 6,3x11 mm 14x12 mm 5 2 pcs 1 pcs (Side) Screw flh Shelf support 3,5x15 mm 14x12 mm 5 1 pcs FIG. Side Right Euro screw...
- Page 5 All manuals and user guides at all-guides.com MDSH9220,040-060 FIG. (Base-top) Glue (Suspension list) 15 gr (Suspension list) NB!!! (Side) Glue 15 gr (Base-top) FIG. (Back panel) 26-04-2018 0b...
- Page 6 All manuals and user guides at all-guides.com MDSH9220,040-060 FIG. Drying Min: 20 min (Side) FIG. Screw flh 3,5x15 mm 4 pcs Angle 45x55x30x2 mm 2 pcs 26-04-2018 0b...
- Page 7 All manuals and user guides at all-guides.com MDSH9220,040-060 FIG. (Shelf) (Shelf) FIG. Euro screw Angle 6,3x11 mm 46x43 mm 4 pcs 2 pcs BP21XXX Alu profil 26-04-2018 0b...
- Page 8 All manuals and user guides at all-guides.com MDSH9220,040-060 FIG. BP21XXX Alu profil Screw flh 3,5x15 mm 4 pcs FIG. Euroscrew 4,2x9,5 4 pcs Rail holder front right 48,5x30 mm 1 pcs Always use # 2 in right side Euroscrew 4,2x9,5...
- Page 9 All manuals and user guides at all-guides.com MDSH9220,040-060 FIG. Screw flh 3,5x15 mm 2 pcs Euro screw 5,8x15 2 pcs NB: Always use # 1 in left side L128*0V,mano = L062*3V + L064*1H, mano L128*0H,mano = L062*3H + L064*1V, mano...
- Page 10 All manuals and user guides at all-guides.com MDSH9220,040-060 Click BP00418 BP00417 Hinge 107 degrees Mounting plate 4 pcs 4 pcs Bumper 7x1,5 mm L128*0V / H L128*0V / H Door mano Left / Rigth Door mano Left / Rigth Bumper...
- Page 11 All manuals and user guides at all-guides.com MDSH9220,040-060 Adjustment Shelf support 5x7 mm Plast 12 pcs 26-04-2018 0b 11 /...
- Page 12 All manuals and user guides at all-guides.com MDSH9220,040-060 (Shelf) (Shelf) 3 pcs (Shelf) (Shelf) 26-04-2018 0b 12 /...
- Page 13 All manuals and user guides at all-guides.com MDSH9220,040-060 BP11400 Mounting way, please read the following specification: BP11400 BP11400 m from m toppoffcabinet. Drilllholessinnwalll1188mm Takeecabinettheighttsubtracttplinthhandd1188mm. Placeeanddmounttsuspensionnlist Usinggwasher. Makeesureesuspensionn listtissinnlevel. Whennsuspensionnlisttissinnlevel.. AdjusttBP114000toorighttposition.. Lockkwithhscrew. Suspensionnlisttreadyyforrcabinet. 19-05-2016 1 11111 26-04-2018 0b 13 /...
