Kvik MDSH2810-040-060 Assembly Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Right
26-04-2018 0b
/
Check out easy
mounting of you bath
Left
L12840V
L12840H
MDSH2810,040-060
L06441H, mano
Door Mano
L06243V, mano
Door Mano
40 cm
L06441V, mano
Door Mano
L06243H, mano
Door Mano
40 cm
L12860V
L06461H, mano
Door Mano
L06263V, mano
Door Mano
60 cm
L12860H
L06461V, mano
Door Mano
L06263H, mano
Door Mano
60 cm
1 /
9

Advertisement

loading
Need help?

Need help?

Do you have a question about the MDSH2810-040-060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kvik MDSH2810-040-060

Summary of Contents for Kvik MDSH2810-040-060

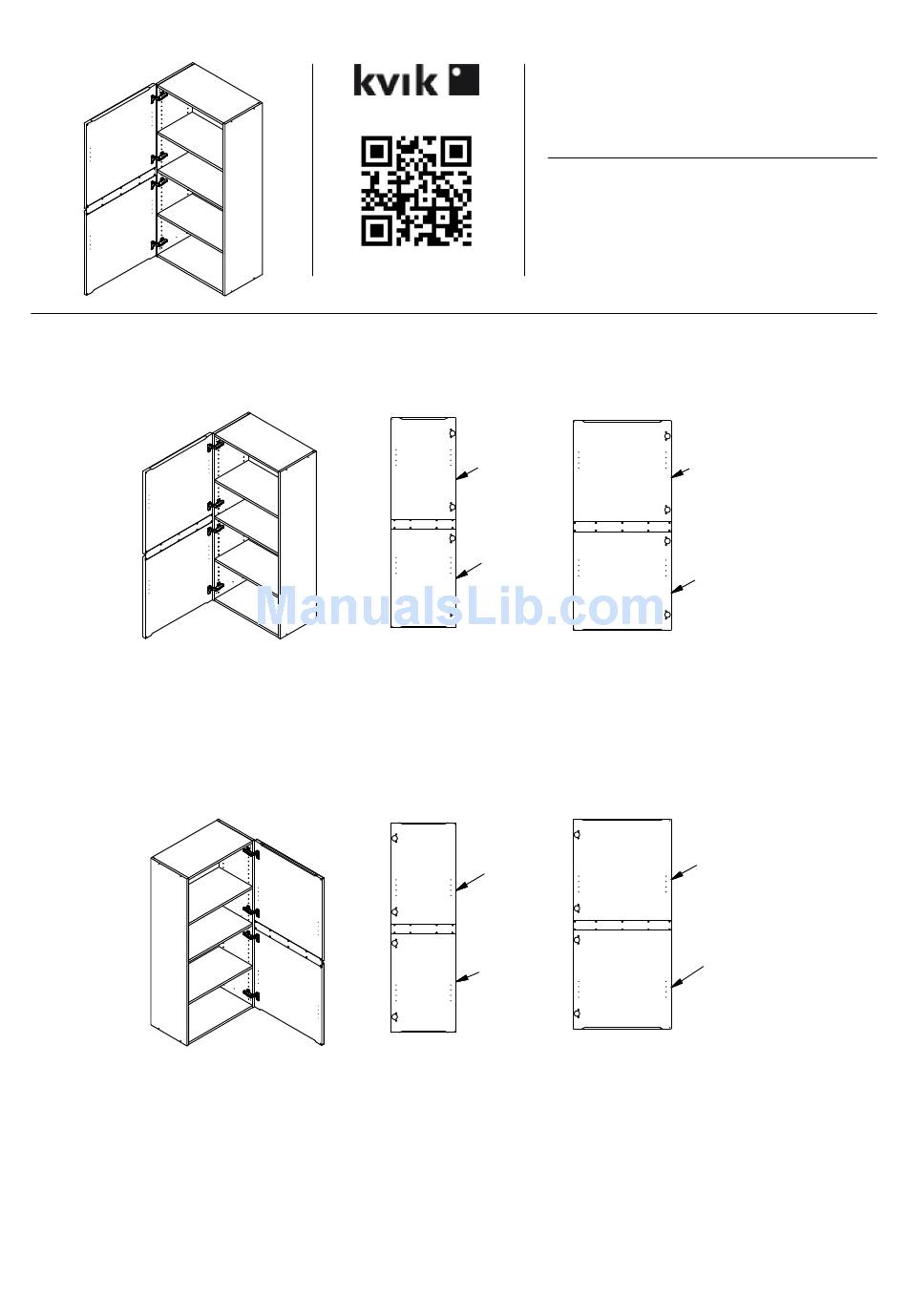

  • Page 1 MDSH2810,040-060 Check out easy mounting of you bath Left L12840V L12860V L06441H, mano L06461H, mano Door Mano Door Mano L06243V, mano Door Mano L06263V, mano Door Mano 40 cm 60 cm Right L12860H L12840H L06461V, mano L06441V, mano Door Mano Door Mano L06263H, mano L06243H, mano...
  • Page 2 Glue 15 gr (Suspension list) 1 pcs 2 pcs 2 pcs 1 pcs 1 pcs HS12832,000 / KVIK (Side) (Back panel) 2 pcs 1 pcs L128*0V / H, mano (Left / Right ) L062*3V, mano L064*1H , Mano Screw flh...
  • Page 3 MDSH2810,040-060 FIG. Drying Min: 20 min (Base-top) (Suspension list) (Suspension list) Glue 15 gr NB!!! Glue (Base-top) 15 gr (Side) FIG. (Back panel) 26-04-2018 0b...
  • Page 4 MDSH2810,040-060 FIG. Drying Min: 20 min (Side) FIG. Screw flh 3,5x15 mm 4 pcs Angle 45x55x30x2 mm 2 pcs 26-04-2018 0b...
  • Page 5 MDSH2810,040-060 FIG. Shelf support 14x12 mm 5 4 pcs Euro screw 6,3x11 mm 4 pcs FIG. (Shelf) (Shelf) 26-04-2018 0b...
  • Page 6 MDSH2810,040-060 FIG. Shelf support 5x7 mm Plast 8 pcs FIG. (Shelf) (Shelf) 2 pcs (Shelf) 26-04-2018 0b...
  • Page 7 MDSH2810,040-060 L128*0V,mano = L062*3V + L064*1H, mano FIG. L128*0H,mano = L062*3H + L064*1V, mano L06263V / H , Mano Screw flh 3,5x15 mm 10 pcs L06461H / V , Mano BP20XXX Metal list Flush FIG. Click BP00418 BP00417 Hinge 107 degrees Mounting plate 4 pcs 4 pcs...
  • Page 8 MDSH2810,040-060 FIG. Left Right L128*0V Door mano Left L128*0H Door mano Right Adjustment 26-04-2018 0b...
  • Page 9 MDSH2810,040-060 BP11400 Mounting way, please read the following specification: BP11400 BP11400 m from m toppoffcabinet. Drilllholessinnw alll1188mm Takeecabinettheighttsubtracttplinthhandd1188mm. Placeeanddmounttsuspensionnlist Usinggwasher. Makeesureesuspensionn listtissinnlevel. Whennsuspensionnlisttissinnlevel.. AdjusttBP114000toorighttposition.. Lockkwithhscrew. Suspensionnlisttreadyyforrcabinet. 19-05-2016 1 11111 26-04-2018 0b...
